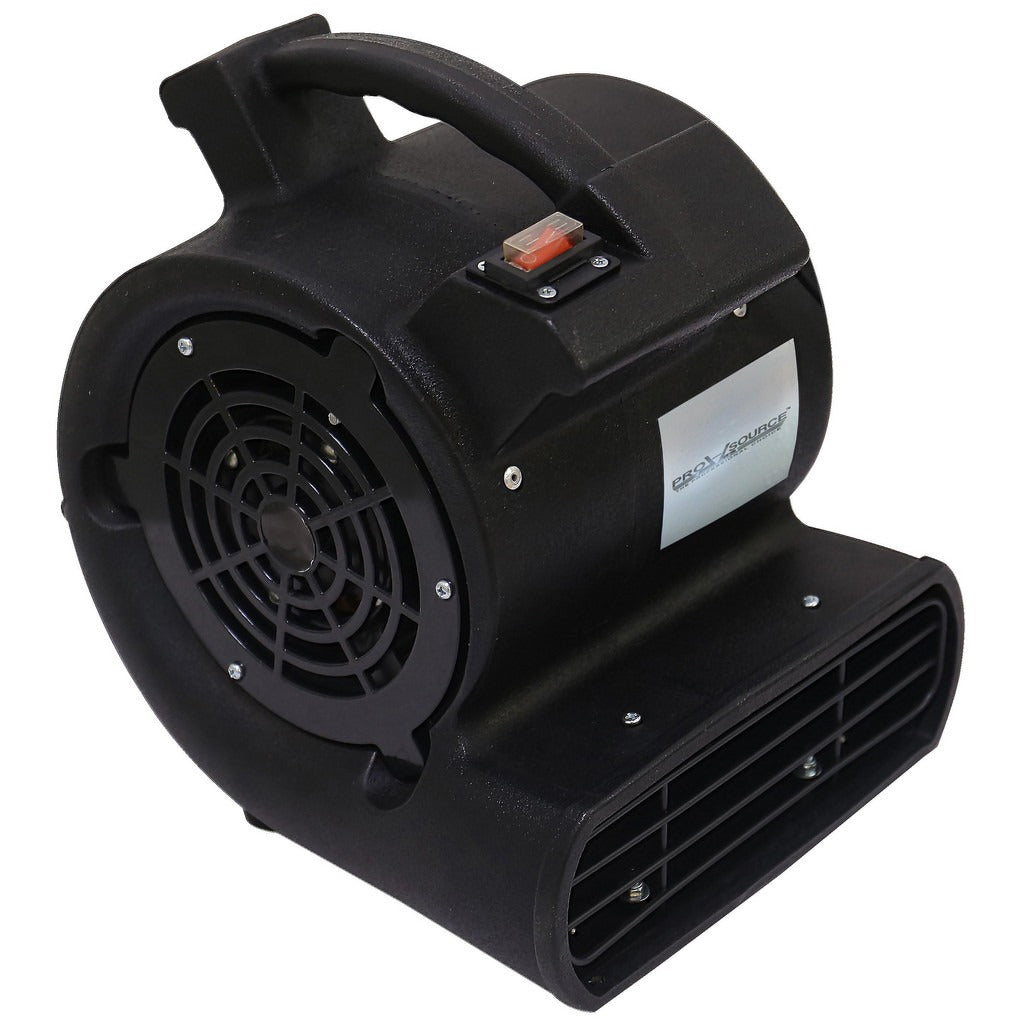

Pro-source PS-PB3001A Direct Drive Blower Fan 1/15 Hp

Product Description

The PRO-SOURCE PS-PB3001A is a single-speed, direct drive blower fan rated at 1/15 horsepower and 120 volts. It draws 2 amps and delivers up to 300 CFM, making it suited for residential and light-commercial HVAC air-handling applications. The motor uses an open air-over enclosure, which relies on the airstream for cooling during operation. A three-conductor plug and direct mount configuration simplify installation in compatible air handler and furnace blower compartments. At 11 pounds, this unit is manageable for a single technician to handle during service. HVAC technicians and qualified mechanical contractors are the primary installers for this type of component.

This blower fan is designed for direct drive applications where the blower wheel mounts directly to the motor shaft, eliminating belt and pulley components. With a rated speed of 1,400 RPM and a polyethylene blade construction, it is appropriate for replacement service in residential forced-air systems. The single-speed configuration suits systems that do not require variable airflow staging. The direct mount design attaches the motor assembly directly to the blower housing or cabinet rail without a separate bracket in most configurations.

Key Features

• Direct drive design eliminates belt and pulley maintenance
• Rated at 300 CFM airflow output at operating speed
• Open air-over motor enclosure cooled by the airstream
• Single-speed operation at 1,400 RPM
• Polyethylene blade construction for durability in continuous-run applications
• Three-conductor plug for straightforward electrical connection

Compatibility

Designed as an OEM-style replacement direct drive blower fan for residential and light-commercial forced-air HVAC systems requiring a 120-volt, 1/15 HP, single-speed motor with direct mount configuration.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the air handler or furnace before removing the existing blower assembly. Confirm voltage, amperage, and mounting dimensions match the existing application before installation. Follow applicable local mechanical codes and the equipment manufacturer service documentation when securing the motor and reconnecting electrical leads.
