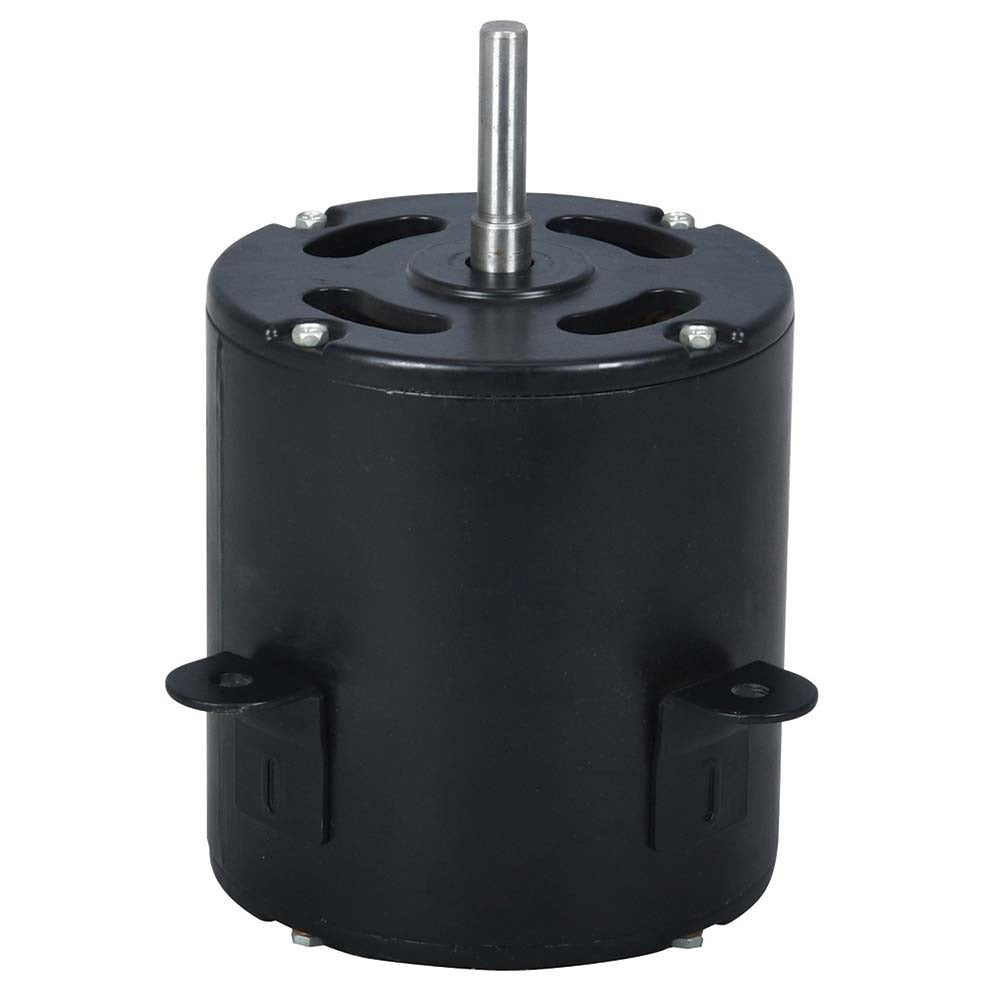

Pro-source PS-FE-120D3-M Psc Ac Motor 1 Hp 120V Drum Mount

Product Description

The PRO-SOURCE PS-FE-120D3-M is a single-phase permanent split capacitor (PSC) AC motor built for drum-mount applications in open enclosure configurations. Rated at 1 horsepower and 120 volts, it draws 9.5 full-load amps at 60 Hz. The motor features a steel frame, ball bearings, and Class E insulation for dependable operation in demanding environments. Two-speed operation and automatic thermal protection make it a practical choice for replacement or new installations where a durable, open-frame PSC motor is required. Licensed HVAC technicians and mechanical contractors are the primary installers for this type of unit.

This motor is suited for drum-mount installations in residential and light commercial applications where a 120-volt single-phase supply is available. The open enclosure style allows for adequate airflow in ventilated equipment bays. With a 0.5-inch shaft diameter and 8-inch shaft length, it fits standard drum-mount hardware. Two-speed capability supports applications that require variable airflow or staged fan operation. It is commonly installed as a direct replacement motor in drum fan assemblies and similar rotating equipment.

Key Features

• 1 HP single-phase PSC motor rated at 120 volts, 60 Hz
• 9.5 full-load amps with automatic thermal protection
• Two-speed operation for flexible airflow control
• Drum mount style with 0.5-inch x 8-inch shaft
• Open enclosure with steel frame and ball bearing construction
• Class E insulation for reliable thermal performance

Compatibility

Designed as an OEM-style replacement for drum-mount single-phase PSC AC motors requiring a 1 HP, 120-volt, 60 Hz open-enclosure configuration.

Installation Notes

Installation should be performed by a licensed electrician or qualified HVAC technician. Disconnect and lock out all power to the equipment before removing the existing motor or making any wiring connections. Verify that the mounting hardware and shaft coupling are compatible with this motor before final assembly. Follow all applicable NEC requirements for single-phase motor installations.
