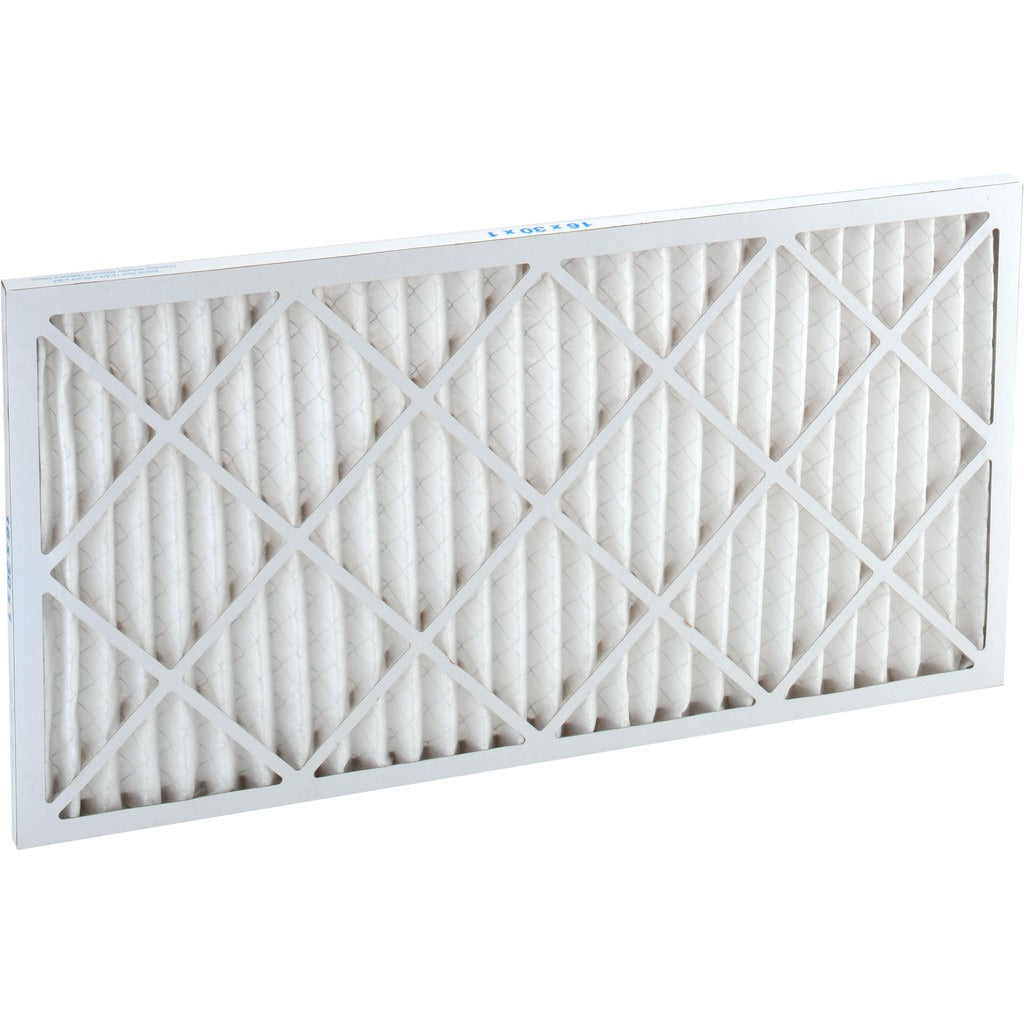

Pro-source PRO21595 Pleated Air Filter Merv 8 16x30x1

Product Description

The PRO-SOURCE PRO21595 is a wire-backed pleated air filter rated MERV 8 with 35% particle capture efficiency. It measures 16 x 30 x 1 inches nominal (15.5 x 29.5 x 0.75 inches actual) and is built with a synthetic filter media and a paperboard frame. The wire backing supports the media and helps maintain pleat geometry under airflow. Rated for up to 1,000 CFM and a maximum face velocity of 300 feet per minute (FPM), this filter handles standard residential and light commercial air handler loads. Initial resistance is 0.14 inches water gauge at 300 FPM. Licensed HVAC technicians and building maintenance personnel install this filter as part of routine system maintenance.

This filter fits return air grilles, air handler cabinets, and furnace filter slots that accept a 16 x 30 x 1 inch nominal filter. It is rated for use with any unit type, making it broadly applicable across residential forced-air systems and light commercial rooftop units with compatible filter housings. The synthetic pleated media captures dust, lint, pollen, and similar particles in the MERV 8 range. Maximum operating temperature is 200 degrees F, which covers standard warm-air furnace and air handler discharge environments.

Key Features

• MERV 8 rated with 35% particle capture efficiency per ASHRAE 52.2-2012
• Wire-backed pleated design maintains pleat structure and resists media collapse at rated airflow
• Synthetic filter media with integrated paperboard frame
• Rated to 1,000 CFM and 300 FPM maximum face velocity
• Initial resistance of 0.14 inches water gauge at 300 FPM; final resistance 1.0 inch water gauge
• Maximum operating temperature of 200 degrees F
• Meets ASHRAE 52.2-2012 and UL 900 standards

Compatibility

Designed for use with any unit accepting a 16 x 30 x 1 inch nominal filter. Verify actual filter slot dimensions before installation; actual dimensions are 15.5 x 29.5 x 0.75 inches.

Installation Notes

Installation is performed by HVAC technicians or qualified maintenance personnel. Power down the air handling unit or furnace before removing the existing filter and installing the replacement. Confirm airflow direction arrows on the filter frame are oriented correctly relative to system airflow before closing the filter access door. Dispose of the used filter in accordance with local waste disposal requirements.
