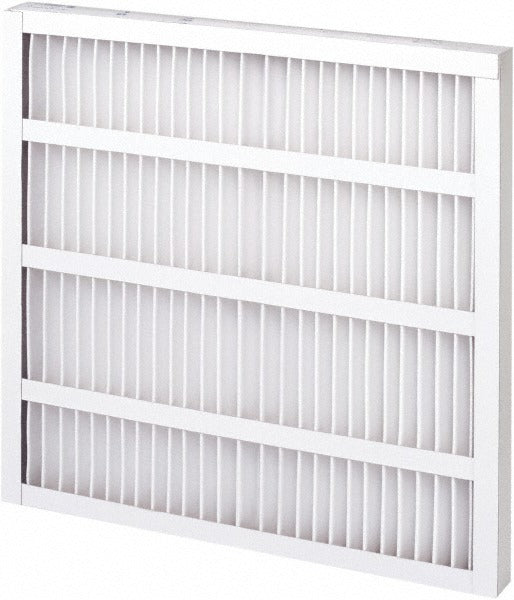

Pro-source PRO21268 Pleated Air Filter Merv 8 20x20x2

Product Description

The PRO-SOURCE PRO21268 is a MERV 8 pleated air filter designed for residential and light commercial HVAC systems. Built with a synthetic pleated media and a sturdy paperboard frame, this filter captures airborne particulates at 35% efficiency per ASHRAE 52.2-2012 test standards. It handles airflow up to 1,400 CFM at a maximum face velocity of 500 FPM, with an initial resistance of 0.23 inches w.g. at 500 FPM. The 2-inch nominal depth fits a wide range of standard filter housings and is installed by HVAC technicians during routine maintenance or system servicing.

This filter is suited for residential forced-air systems and light commercial air handlers where MERV 8 filtration is specified. With a nominal size of 20 x 20 x 2 inches and actual dimensions of 19-1/2 x 19-1/2 x 1-3/4 inches, it slots into standard 2-inch filter tracks without modification. The high-capacity synthetic media supports extended service intervals and performs reliably in systems with typical residential or light commercial airflow demands. It is rated for use with any unit, making it a versatile replacement option across a broad range of equipment.

Key Features

• MERV 8 rating with 35% particle capture efficiency per ASHRAE 52.2-2012
• Synthetic pleated media for consistent airflow and effective particulate capture
• Paperboard frame with integrated construction for secure fit in standard filter housings
• Rated for up to 1,400 CFM and 500 FPM maximum face velocity
• Low initial resistance of 0.23 inches w.g. at rated velocity helps reduce system static pressure
• Maximum operating temperature of 150 degrees F and UL 900 listed

Compatibility

Designed for use with any unit accepting a 20 x 20 x 2 inch nominal filter. Verify actual filter slot dimensions against the actual size of 19-1/2 x 19-1/2 x 1-3/4 inches before installation.

Installation Notes

Installation is performed by a qualified HVAC technician. Power down the air handler or furnace at the disconnect or thermostat before removing the old filter. Note the airflow direction arrow on the filter frame and orient the new filter so the arrow points toward the blower. Dispose of the used filter in accordance with local waste guidelines.
