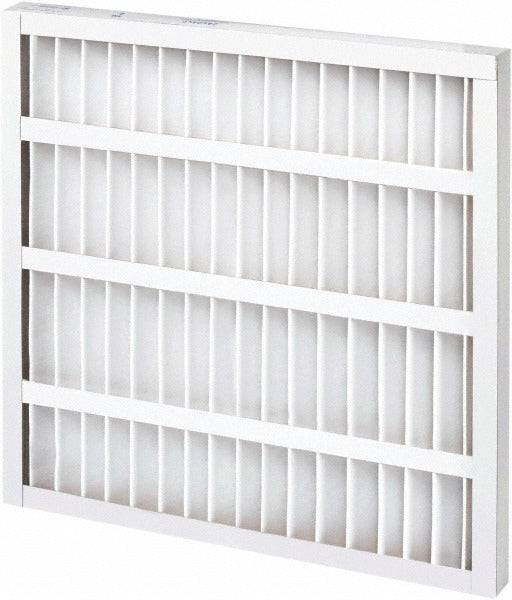

Pro-source PRO21134 Pleated Air Filter 15x20x2 Merv 8

Product Description

The PRO-SOURCE PRO21134 is a MERV 8 pleated air filter rated for residential and light commercial HVAC applications. Sized at 15 x 20 x 2 inches nominal (actual dimensions 14.5 x 19.5 x 1.75 inches), it captures 35% of targeted airborne particles using a synthetic pleated media housed in a paperboard frame. Rated for airflow up to 775 CFM at a maximum face velocity of 500 FPM, with an initial resistance of 0.26 inches water gauge at 500 FPM and a final resistance of 1.0 inch water gauge. Suitable for use in any forced-air system requiring this filter size. Installation requires no tools beyond the filter itself.

This filter is intended for use in residential and light commercial forced-air heating and cooling systems where the return-air grille or filter rack accepts a 15 x 20 x 2 inch nominal filter. MERV 8 efficiency targets standard dust, pollen, mold spores, and similar mid-range particulates. The synthetic media and integrated paperboard frame provide structural rigidity throughout the service interval. The filter is rated for operating temperatures up to 150 degrees F, making it compatible with a wide range of gas, electric, and heat pump systems. Supplied individually; minimum order quantity is 12 units.

Key Features

• MERV 8 rating with 35% particle capture efficiency per ASHRAE 52.2-2012
• Synthetic pleated media for consistent airflow and particle retention
• Integrated paperboard frame maintains shape under operating static pressure
• 775 CFM airflow capacity at maximum face velocity of 500 FPM
• Initial resistance of 0.26 inches water gauge at 500 FPM
• Rated to 150 degrees F for compatibility with all standard residential forced-air equipment

Compatibility

Designed as a direct-fit replacement for any forced-air heating or cooling unit that accepts a 15 x 20 x 2 inch nominal pleated filter. No specific model restrictions are identified by the manufacturer.

Installation Notes

Installation is performed by HVAC technicians or qualified service professionals. Power down or set the thermostat to off before replacing the filter to prevent debris from entering the air stream during changeover. Verify the airflow direction arrow on the filter frame aligns with the direction of airflow toward the blower. Dispose of the used filter in accordance with local waste guidelines.
