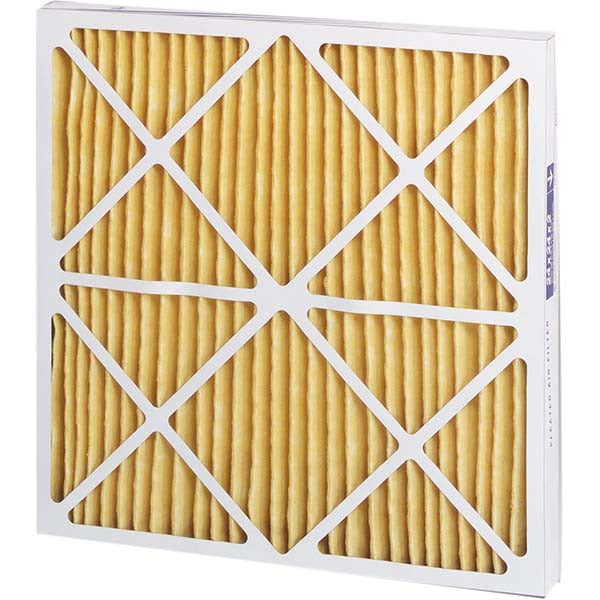

Pro-source PRO19643 Pleated Air Filter 20x25x1 Merv 11

Product Description

The PRO-SOURCE PRO19643 is a wire-backed pleated air filter rated MERV 11, designed for forced-air HVAC systems in residential and light commercial applications. The filter measures 20 x 25 x 1 inches nominal (19.5 x 24.5 x 0.875 inches actual) and handles airflow up to 1,300 CFM with a maximum face velocity of 500 FPM. The synthetic pleated media is supported by a wire backing that maintains pleat geometry under load, and the beverage board frame provides a stable, integrated housing. Initial resistance is 0.20 inches w.g. at 300 FPM and 0.28 inches w.g. at 375 FPM, keeping static pressure low during normal operation. HVAC technicians and facility maintenance personnel are the primary installers.

This filter fits any forced-air unit that accepts a standard 20 x 25 x 1 inch filter. Typical install scenarios include residential gas or electric furnaces, air handlers, and packaged rooftop units where a MERV 11 rating is specified for improved particulate capture. MERV 11 media is effective against fine dust, pollen, mold spores, and pet dander, making it a common upgrade from standard MERV 8 filters in occupied residential spaces or small commercial buildings. The wire-backed construction is well suited to high-velocity return-air applications where a flat media panel would collapse.

Key Features

• MERV 11 synthetic pleated media captures fine particulates including pollen, mold spores, and pet dander
• Wire-backed pleat support maintains filter geometry at airflow rates up to 500 FPM
• Rated for 1,300 CFM airflow with low initial resistance of 0.20 inches w.g. at 300 FPM
• Beverage board frame with integrated construction for a secure fit in standard filter tracks
• UL 900 listed for fire safety compliance
• Maximum operating temperature of 150 degrees F

Compatibility

Designed for use with any forced-air HVAC unit accepting a nominal 20 x 25 x 1 inch filter slot.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified maintenance personnel. Always set the system thermostat to off and shut down the air handler or furnace before removing the existing filter and inserting the replacement. Confirm airflow direction arrows on the filter frame align with the direction of airflow toward the blower. Verify the actual slot dimensions match the 19.5 x 24.5 x 0.875 inch actual size before installing to ensure a proper seal and prevent air bypass.
