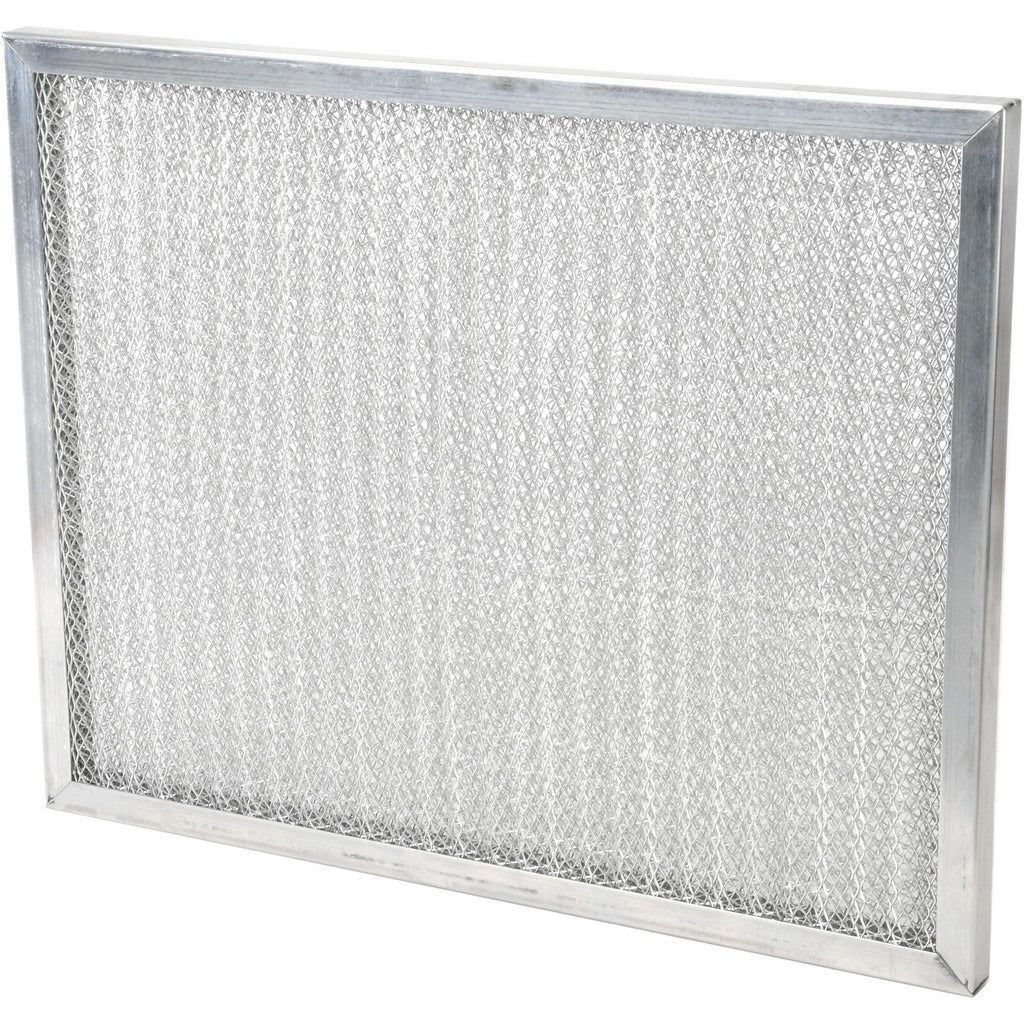

Pro-source PRO17916201 Aluminum Mesh Air Filter 16x20x1

Product Description

The PRO-SOURCE PRO17916201 is a pleated aluminum mesh air filter designed for use in HVAC air handling systems where washable, reusable filtration media is required. Built with a corrugated aluminum mesh media and an aluminum frame, this filter handles temperatures up to 275 degrees F and airflow up to 500 feet per minute (FPM). Nominal dimensions are 16 x 20 x 1 inches, with actual dimensions of 15.5 x 19.5 x 0.875 inches. Initial resistance is 0.05 inches water gauge at 300 FPM, making it well suited for low-restriction applications. The integrated frame adds structural rigidity for demanding installations. Licensed HVAC technicians and mechanical contractors are the typical installers.

This filter fits residential and light commercial air handling units, fan coil units, and return air grilles sized for 16 x 20 x 1 inch nominal filter slots. Aluminum mesh construction makes it a practical choice in environments where disposable media filters are impractical, such as commercial kitchens, industrial facilities, or high-temperature mechanical rooms. It is sold individually with a minimum order quantity of 12 units per order, making it appropriate for service fleets stocking standard filter sizes across multiple accounts.

Key Features

• Corrugated aluminum mesh media supports repeated washing and reuse
• All-aluminum construction withstands temperatures up to 275 degrees F
• Maximum rated airflow of 500 FPM for standard AHU applications
• Low initial resistance of 0.05 inches water gauge at 300 FPM minimizes static pressure drop
• Integrated aluminum frame maintains filter shape and seal under airflow load
• UL 900 listed for fire safety in air distribution equipment

Compatibility

Designed as an OEM-style replacement for HVAC air handling units, fan coil units, and return air grilles with a nominal 16 x 20 x 1 inch filter opening requiring a washable aluminum mesh filter.

Installation Notes

Installation should be performed by a qualified HVAC technician following applicable mechanical codes. Always shut down and de-energize the air handling unit before removing or inserting the filter. Verify airflow direction markings on the unit and seat the filter fully within the track to maintain a proper face seal. When cleaning, allow the filter to dry completely before reinstalling to prevent moisture carryover into the air stream.
