Pro-source PRO11729 Air Filter Media Pad Merv 7 20x25x2

Product Description

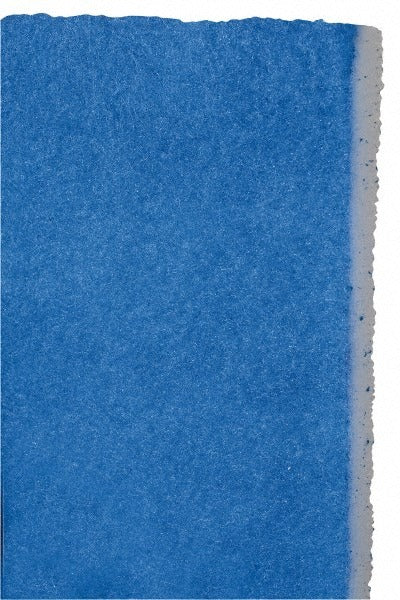

The PRO-SOURCE PRO11729 is a polyester air filter media pad designed for use in commercial and residential HVAC filtration applications. Measuring 20 inches high by 25 inches wide by 2 inches deep, this media pad delivers a MERV 7 rating with 35% particle capture efficiency and 87% arrestance efficiency. It handles airflow up to 1,042 CFM at a maximum face velocity of 300 FPM. The dry tackifier construction improves particle retention without adhesive mess. Licensed HVAC technicians and maintenance professionals install these pads as part of air handler, make-up air unit, and media filter rack servicing.

This media pad is suited for light commercial and residential HVAC systems where MERV 7 filtration meets the required indoor air quality standard. It performs in systems handling standard supply or return air at face velocities up to 300 FPM. With a maximum operating temperature of 180 degrees F, it is compatible with a broad range of air-handling configurations. The manufacturer designates this pad for use with any unit, making it a versatile stock item for service contractors who maintain mixed equipment fleets.

Key Features

• MERV 7 rating with 35% particle capture efficiency and 87% arrestance efficiency
• Polyester media construction with dry tackifier for effective particle retention
• Rated for airflow up to 1,042 CFM at a maximum velocity of 300 FPM
• Initial resistance of 0.15 inches w.g. for low system static pressure impact
• Maximum operating temperature of 180 degrees F
• Compatible with any unit per manufacturer specification

Compatibility

Designed for use with any unit per manufacturer specification, suitable as an OEM-style or aftermarket replacement media pad in standard air handler, make-up air, and media filter rack applications.

Installation Notes

Installation should be performed by a qualified HVAC technician. Power down the air handling unit at the disconnect before servicing the filter rack. Verify airflow direction and insert the pad with the correct face orientation relative to the airstream. Inspect the filter housing frame for gaps or bypass leakage after seating the pad.
