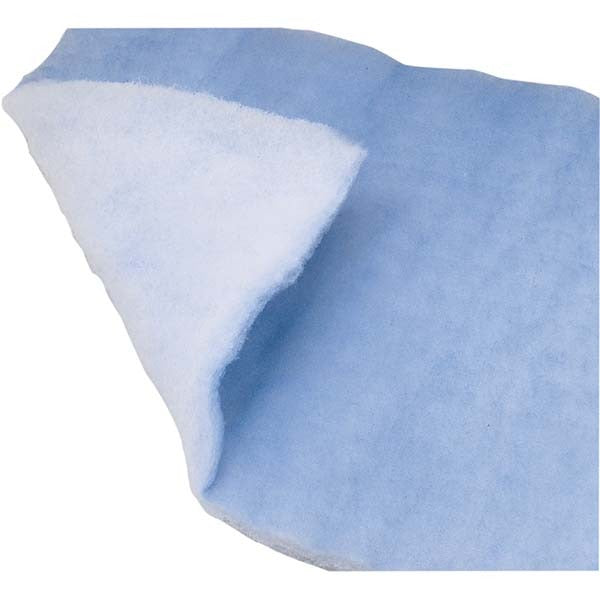

Pro-source PRO11722 Merv 7 Air Filter Media Pad 24x12x2

Product Description

The PRO-SOURCE PRO11722 is a fiberglass air filter media pad rated MERV 7, designed for use in commercial and residential air handling systems where coarse to mid-range particulate capture is required. The pad measures 24 inches by 12 inches by 2 inches and delivers an arrestance efficiency of 92.1 percent with a particle capture efficiency of 25 percent. Rated for airflow up to 300 feet per minute (FPM) with an initial resistance of 0.14 inches water gauge at that velocity, this media pad suits high-volume filter banks and pre-filter stages. Licensed HVAC technicians and building maintenance professionals are the primary installers.

This filter media pad is suited for applications requiring a dry tackifier treatment to improve particle adhesion without moisture complications. It fits into standard filter bank frames and slide-in media housings used in light commercial rooftop units, air handlers, and makeup air systems. The pad handles a maximum working temperature of 150 degrees F, making it appropriate for most standard forced-air system environments. With a rated capacity of 600 CFM and a final resistance of 1 inch water gauge, it supports proper system pressure management across its service life.

Key Features

• MERV 7 rating with 92.1 percent arrestance efficiency for coarse particulate capture
• Fiberglass media construction with dry tackifier treatment
• Rated airflow of 300 FPM and 600 CFM capacity
• Initial resistance of 0.14 inches w.g. at 300 FPM for low system pressure drop at start of service
• Maximum working temperature of 150 degrees F
• UL 900 listed

Compatibility

Designed for use with any air handling unit requiring a 24 by 12 by 2 inch media pad in a MERV 7 filtration application.

Installation Notes

Installation should be performed by a qualified HVAC technician. Power down the air handling unit and verify the system is de-energized before opening the filter access panel. Confirm frame dimensions match the pad size before seating to ensure a flush, bypass-free fit. Dispose of used media pads in accordance with local waste regulations.
