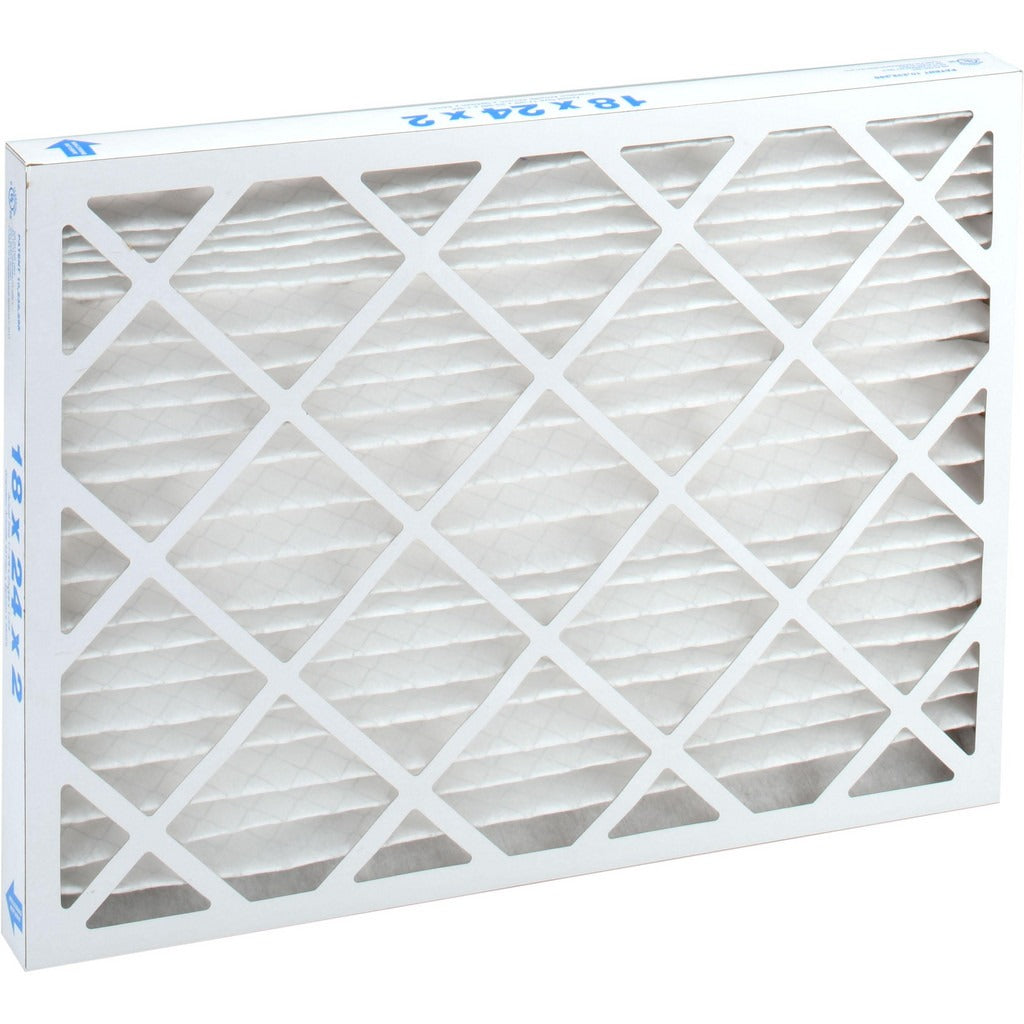

Pro-source PRO10459 Pleated Air Filter Merv 10 18x24x2

Product Description

The PRO-SOURCE PRO10459 is a wire-backed pleated air filter rated MERV 10 at 55% particle capture efficiency, designed for forced-air HVAC systems in residential and light commercial applications. The filter measures 18 x 24 x 2 inches nominal, with actual dimensions of 17-3/8 x 23-3/8 x 1-3/4 inches. Synthetic filter media is supported by a wire backing that holds pleat geometry under airflow, maintaining consistent performance at velocities up to 500 feet per minute and airflow rates up to 1,500 CFM. A rigid paperboard frame provides structural support and a secure fit in standard filter tracks. Initial resistance is 0.24 inches water gauge at 500 FPM, minimizing system static pressure impact at rated conditions.

This filter is suitable for use in any forced-air air handling unit, furnace, or fan coil that accepts a 18 x 24 x 2 inches nominal filter. MERV 10 efficiency makes it appropriate for environments where capture of finer dust, pollen, mold spores, and lint is required without the higher static penalty of MERV 13 or MERV 16 media. Typical applications include residential split systems, packaged rooftop units, and commercial air handlers where standard filter tracks are used. The wire-backed pleat construction is well suited to higher-velocity installations where flimsy media would collapse or bypass.

Key Features

• MERV 10 rating per ASHRAE 52.2-2012 with 55% particle capture efficiency
• Wire-backed pleated synthetic media maintains pleat structure at airflows up to 1,500 CFM
• Nominal 18 x 24 x 2 inches sizing fits standard filter tracks; actual dimensions 17-3/8 x 23-3/8 x 1-3/4 inches
• Low initial resistance of 0.24 inches w.g. at 500 FPM reduces system static pressure load
• Rigid paperboard frame with integrated support for consistent seating in filter housings
• Rated to 200 degrees F maximum operating temperature

Compatibility

Designed for use with any air handling unit, furnace, or HVAC system accepting an 18 x 24 x 2 inches nominal filter slot.

Installation Notes

Installation should be performed by a qualified HVAC technician or trained service professional. Power down the air handling unit or furnace at the disconnect or breaker before replacing the filter. Confirm airflow direction markings on the filter frame align with the system airflow direction before seating the filter. Inspect the filter track and housing seal surfaces for damage or bypass gaps after installation to ensure no unfiltered air passes around the media.
