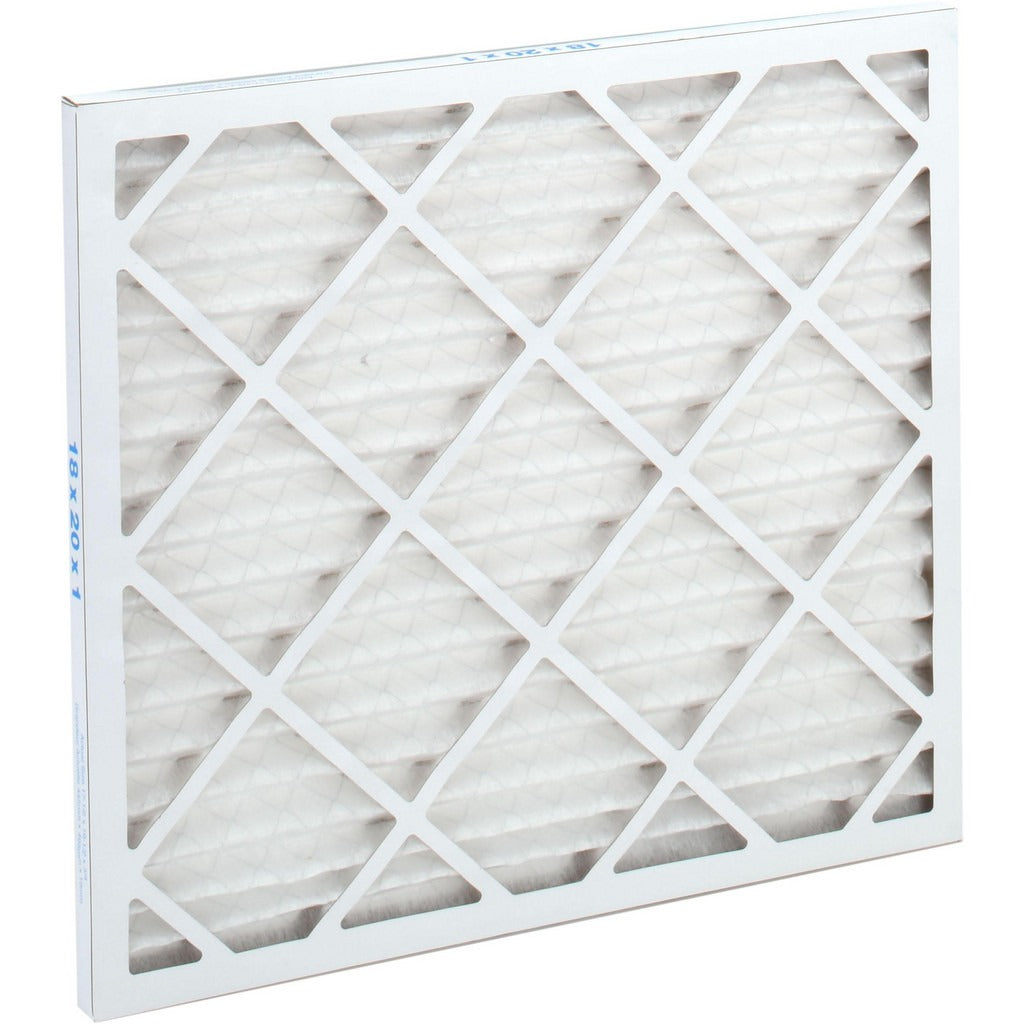

Pro-source PRO10413 Pleated Air Filter 18x20x1 Merv 8

Product Description

The PRO-SOURCE PRO10413 is a MERV 8 pleated air filter rated for residential and light commercial HVAC applications. Measuring 18 x 20 x 1 inches nominal (actual dimensions: 17.5 x 19.5 x 0.75 inches), it uses a wire-backed synthetic media construction housed in a rigid paperboard frame. The wire backing supports pleat geometry under airflow, maintaining consistent face area across the service life of the filter. At 35% particle capture efficiency per ASHRAE 52.2-2012, it captures common household particulates including dust, lint, and pollen. A licensed HVAC technician or qualified HVAC installer typically handles bulk filter replacements on commercial accounts, while homeowners commonly handle residential changeouts.

This filter fits any standard forced-air system with an 18 x 20 x 1 inch filter slot, including central air handlers, furnaces, and heat pumps. It is rated for airflows up to 750 CFM at a maximum face velocity of 300 FPM. Initial resistance is 0.14 inches water gauge at 300 FPM, with a final resistance of 1.0 inches water gauge. It is rated to a maximum operating temperature of 200 degrees F, making it suitable for both heating and cooling season use without media degradation.

Key Features

• MERV 8 rating per ASHRAE 52.2-2012 with 35% particle capture efficiency
• Wire-backed pleated synthetic media maintains pleat shape under sustained airflow
• Rigid integrated paperboard frame for consistent fit in standard filter tracks
• Rated to 300 FPM maximum face velocity and 750 CFM airflow
• Maximum operating temperature of 200 degrees F
• UL 900 listed for fire resistance classification

Compatibility

Designed for use with any forced-air HVAC unit accepting an 18 x 20 x 1 inch nominal filter. Verify actual slot dimensions against the 17.5 x 19.5 x 0.75 inch actual size before installation.

Installation Notes

Power down or set the thermostat to off before removing the existing filter to avoid drawing unfiltered air through the system during changeout. Install the filter with the airflow arrow on the frame pointing toward the blower, not toward the return air duct. Dispose of the used filter in a sealed bag to contain captured particulates. Follow local mechanical codes and the equipment manufacturer's recommended filter change intervals based on application and environment.
