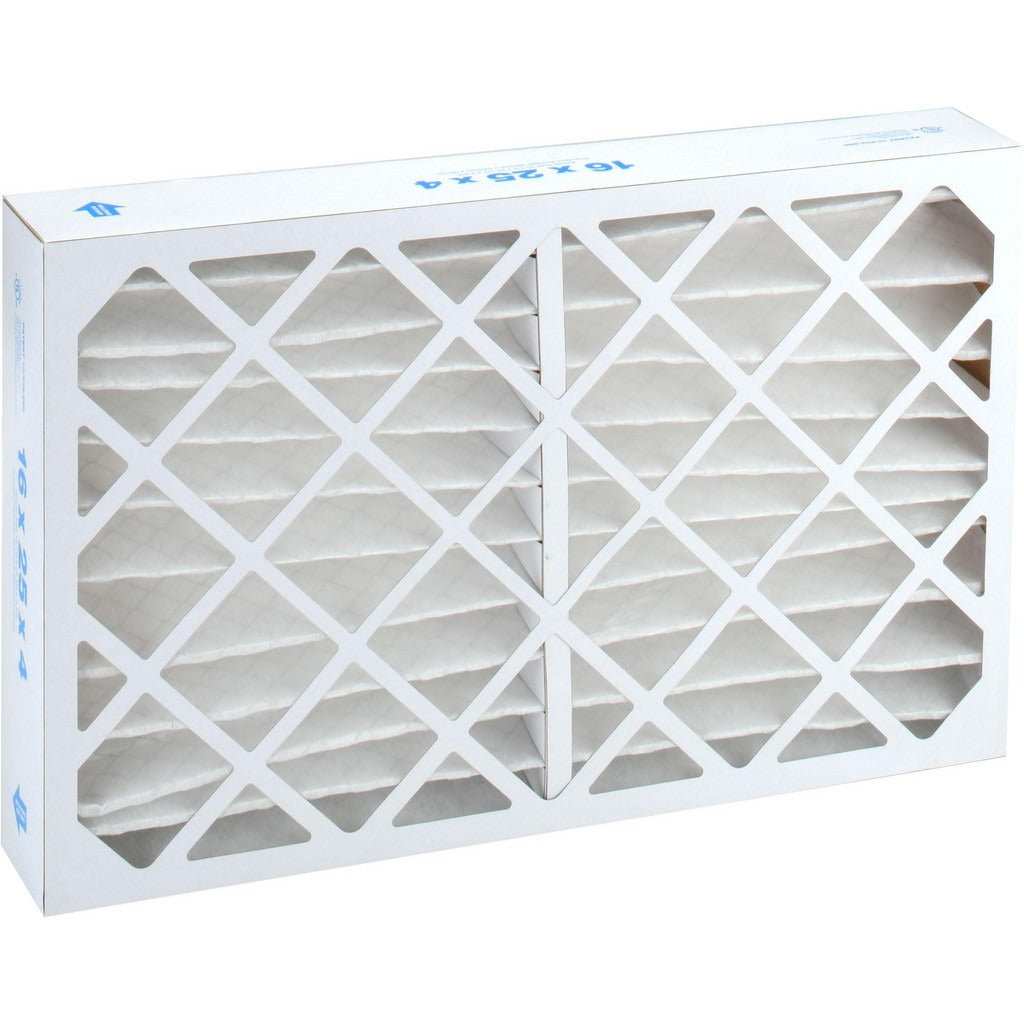

Pro-source PRO10395 Pleated Air Filter 16x25x4 Merv 8

Product Description

The PRO-SOURCE PRO10395 is a MERV 8, wire-backed pleated air filter rated for residential and light commercial HVAC applications. Built on a paperboard frame with a synthetic pleated media, it delivers 35% particle capture efficiency at 500 feet per minute maximum face velocity. The wire backing supports the pleat structure under airflow load, helping maintain consistent performance across the filter's service life. Nominal dimensions are 16 x 25 x 4 inches, with actual dimensions of 15.5 x 24.5 x 3.75 inches. This filter is installed by HVAC technicians and service pros as a routine maintenance replacement in forced-air systems.

The PRO10395 is designed for forced-air heating and cooling systems that accept a 4-inch-depth filter. Its 1,400 CFM airflow rating and 500 FPM maximum velocity make it suited for standard residential air handlers and furnaces, as well as light commercial rooftop units that use this filter size. The MERV 8 rating captures common airborne particles including dust, pollen, mold spores, and pet dander, making it a practical choice for standard indoor air quality maintenance. It is sold individually but requires a minimum order of 6 units.

Key Features

• MERV 8 rating with 35% particle capture efficiency per ASHRAE 52.2-2012
• Wire-backed pleated synthetic media maintains pleat shape under airflow
• Rigid paperboard frame for secure fit in standard filter tracks
• Rated to 1,400 CFM and 500 FPM maximum face velocity
• Maximum operating temperature of 200 degrees F
• Low initial resistance of 0.14 inches water gauge at 500 FPM

Compatibility

Designed to fit any forced-air HVAC unit that accepts a nominal 16 x 25 x 4 inch filter. Confirm actual filter slot dimensions against the actual size of 15.5 x 24.5 x 3.75 inches before installation.

Installation Notes

Installation is performed by a licensed HVAC technician or qualified service professional. Power down the air handler or furnace at the disconnect before removing the old filter and inserting the replacement. Confirm airflow direction arrows on the filter frame align with system airflow before seating the filter. Follow local codes and the equipment manufacturer's maintenance schedule for filter replacement intervals.
