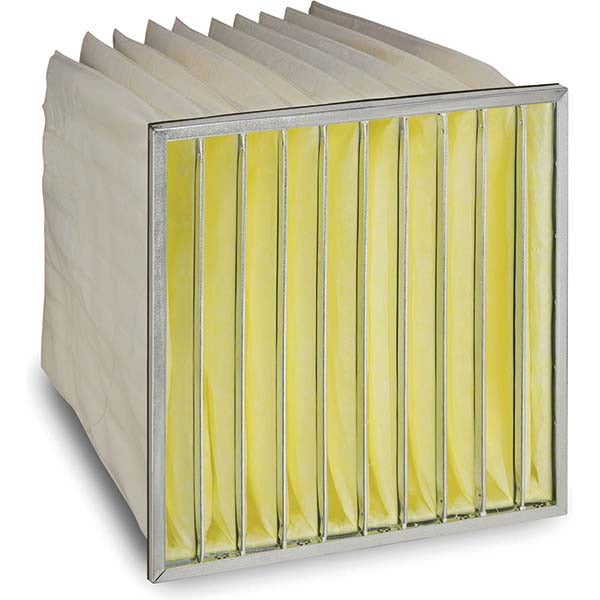

Pro-source PRO10236 Bag Air Filter Merv 15 24x24x36

Product Description

The PRO-SOURCE PRO10236 is a synthetic media bag air filter rated MERV 15, designed for high-efficiency filtration in commercial and industrial HVAC air handling systems. With a nominal size of 24 inches high by 24 inches wide by 36 inches deep, the filter captures 90 to 95 percent of targeted airborne particles, making it suitable for applications where superior air quality control is required. The galvanized steel integrated frame holds 8 pockets that expand under airflow to maximize media surface area. Rated for a maximum working temperature of 180 degrees F and airflow up to 500 feet per minute, this filter is installed by licensed HVAC technicians and mechanical contractors in equipment rooms and air handler units.

The PRO10236 is designed for use in commercial and industrial air handling units where high particle capture efficiency is critical. Typical applications include hospitals, cleanrooms, laboratories, schools, and office buildings where MERV 15 filtration is specified to remove fine particulate matter, fine dust, and biological aerosols. The unit supports up to 2000 CFM and is sized to fit standard 24 by 24 inch filter housings with a 36-inch deep pocket configuration. This filter is commonly specified by mechanical engineers and installed by HVAC professionals during scheduled maintenance or system commissioning.

Key Features

• MERV 15 rating with 90 to 95 percent particle capture efficiency
• Synthetic filter media rated to 180 degrees F maximum working temperature
• Galvanized steel integrated frame for structural rigidity and corrosion resistance
• 8 pockets designed to maximize media surface area and extend service life
• Supports airflow up to 2000 CFM at a maximum face velocity of 500 feet per minute
• UL 900 listed filter media

Compatibility

Designed as an OEM-style replacement for commercial air handling units accepting 24 by 24 by 36 inch deep bag filters with standard galvanized steel frame construction.

Installation Notes

Installation should be performed by a qualified HVAC technician. Shut down the air handling unit and lock out the system before removing the old filter or inserting the new one. Confirm airflow direction markings on the frame are aligned with system airflow before seating the filter. Bag filters of this depth typically require a compatible deep-pocket filter housing or extended filter rack — verify housing depth accommodation before installation.
