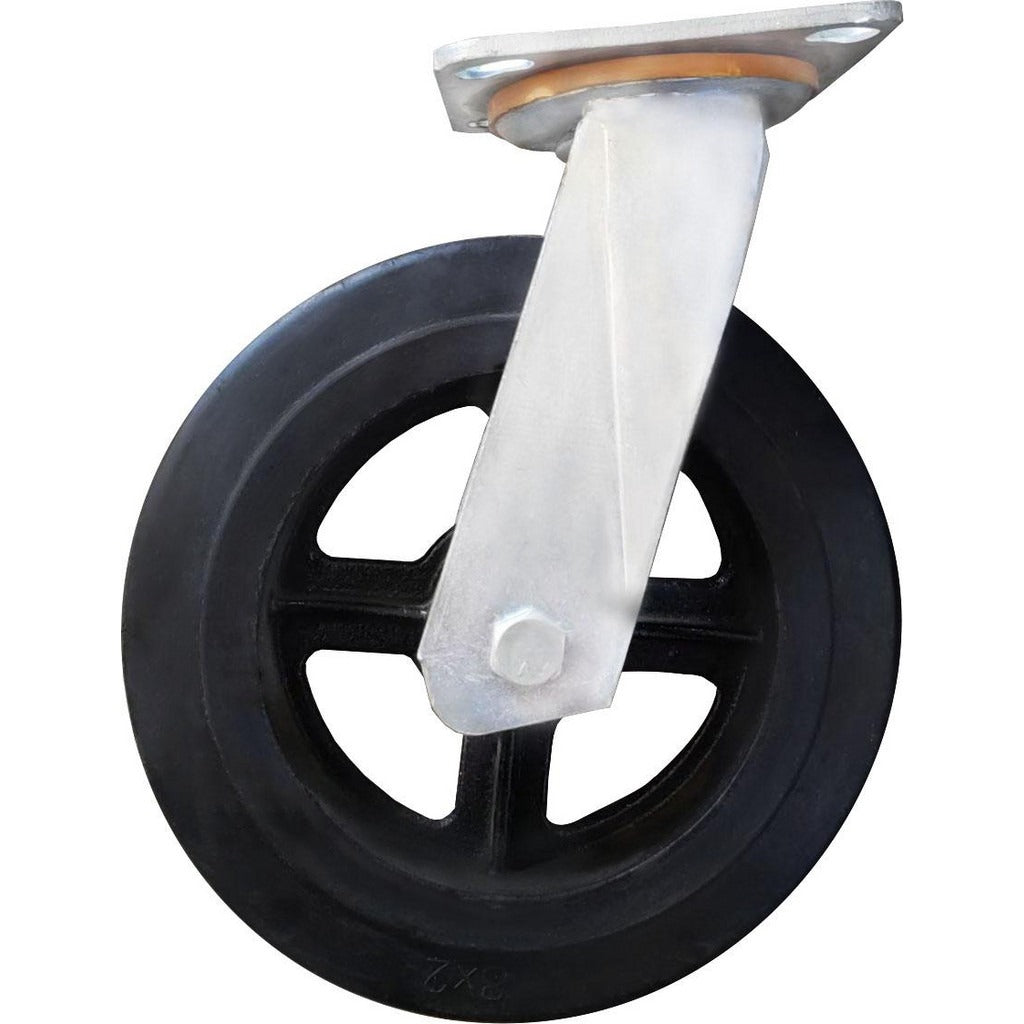

Pro-source PRO-AS2436S-004 Swivel Caster Wheel 8in Ball Bearing

Product Description

The PRO-SOURCE PRO-AS2436S-004 is a swivel caster wheel designed for industrial and commercial equipment mobility applications. The wheel measures 8 inches in diameter and 2 inches wide, with an overall installed height of 9.5 inches. It rides on ball bearings for smooth, low-resistance rotation and swivels freely to allow multi-directional movement. The steel frame carries a zinc finish coating for corrosion resistance, while the hard rubber wheel is rated HR 50-60 for durability on hard floor surfaces. Installation is handled via a 4-bolt bolt-on mount pattern. The unit weighs 6.6 pounds. Technicians, maintenance staff, and fabricators use this caster on carts, equipment stands, and shop fabrications requiring a heavy-duty swivel wheel.

This caster is suited for use on industrial carts, equipment dollies, workbenches, and mobile service equipment in shop, warehouse, and light commercial settings. The hard rubber wheel handles smooth concrete and hard floor surfaces well and provides a balance between load capacity and floor protection. The bolt-on mount makes it adaptable to a range of frame configurations where a 4-bolt pattern is used. This is a single-unit item sold individually.

Key Features

• 8-inch diameter hard rubber wheel rated HR 50-60 for durability on hard floor surfaces
• Swivel style for full multi-directional mobility
• Ball bearing construction for smooth, low-friction rotation
• 4-bolt bolt-on mount for secure frame attachment
• Steel frame with zinc finish coating for corrosion resistance
• 9.5-inch overall installed height

Compatibility

Designed as a bolt-on replacement swivel caster for industrial carts, equipment stands, and mobile fabrications using a 4-bolt mount pattern and requiring an 8-inch wheel.

Installation Notes

Installation is performed by maintenance technicians or equipment fabricators using standard hand tools. Ensure the mounting surface is flat and that all four bolts are fastened evenly to prevent frame stress or wheel misalignment. Power down or de-energize any equipment before replacing casters on motorized or powered carts. Verify load rating requirements before installing on heavy-duty applications.
