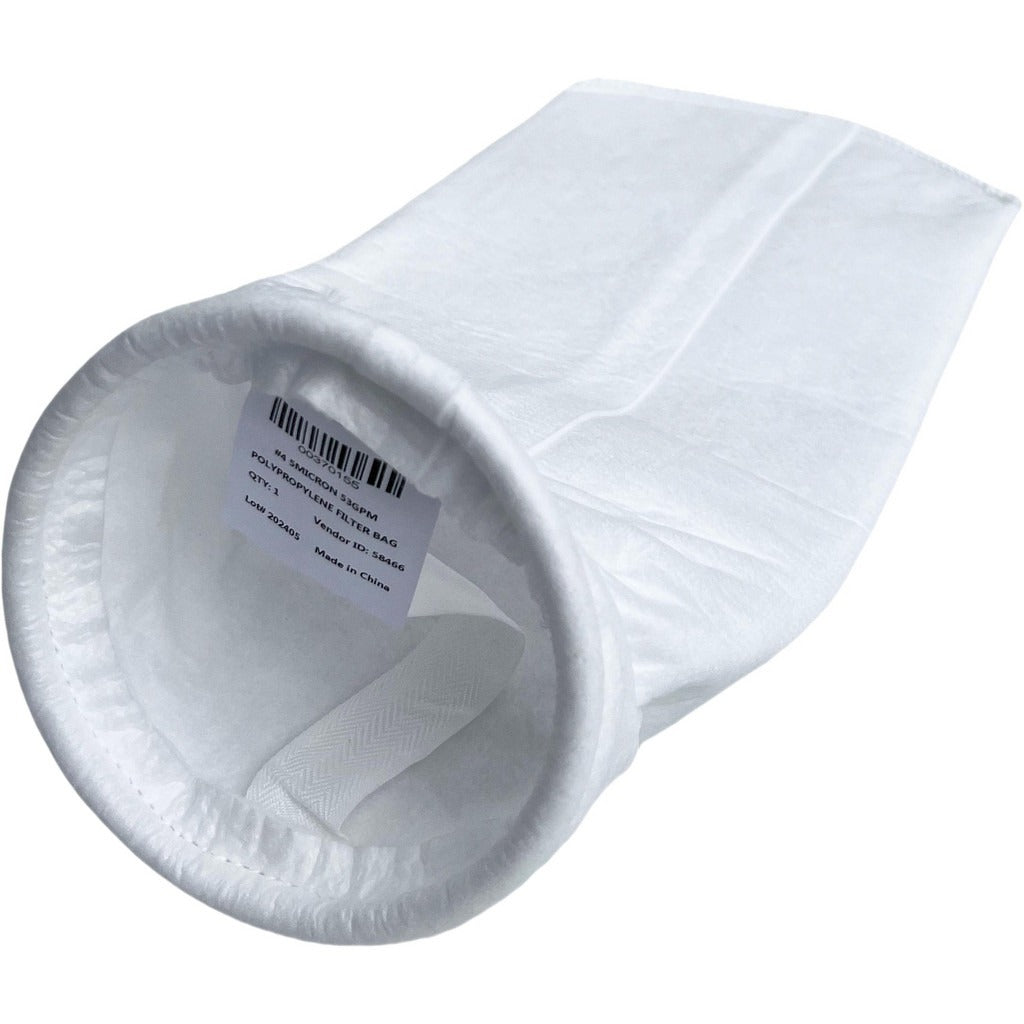

Pro-source PP5S4-PRO Size 4 5 Micron High Flow Bag Filter

Product Description

The PRO-SOURCE PP5S4-PRO is a Size 4 liquid bag filter rated at 5 microns, designed for high-flow industrial and commercial filtration systems. Built from polypropylene, this filter handles a maximum flow rate of 53 gallons per minute and withstands operating temperatures up to 194 degrees F. Measuring 4.1 inches in overall diameter and 15 inches in length with 1 square foot of filter area, it fits standard Size 4 bag filter housings. Plumbers, industrial maintenance techs, and fluid system specialists install this type of filter to remove particulate from process water, coolants, and other liquid streams.

This filter is suited for liquid filtration applications in residential, commercial, and light industrial settings where consistent particulate removal at 5 microns is required. It is commonly installed in bag filter housings used in water treatment, process fluid, and general-purpose filtration systems. Compatible housing models include the CBC1D2T and CBG1D2T series. Its high-flow design supports systems where pressure drop management and flow capacity are priorities.

Key Features

• 5 micron rating removes fine particulate from liquid streams
• Size 4 form factor with 1 square foot of filtration area
• Maximum flow rate of 53 gallons per minute supports high-demand systems
• Polypropylene construction resists corrosion and chemical degradation
• Rated for operating temperatures up to 194 degrees F
• 4.1 inch overall diameter and 15 inch length fit standard Size 4 housings

Compatibility

Compatible with CBC1D2T and CBG1D2T bag filter housings as stated by the manufacturer. Designed as a direct-fit replacement for standard Size 4 bag filter housings.

Installation Notes

Installation of bag filters is typically performed by plumbers or industrial maintenance technicians. Before replacing the filter bag, shut off flow to the housing and relieve any system pressure to prevent injury. Inspect the housing o-ring or gasket for wear and replace it if necessary to ensure a proper seal. Follow applicable local plumbing codes and the housing manufacturer guidelines when servicing filter assemblies.
