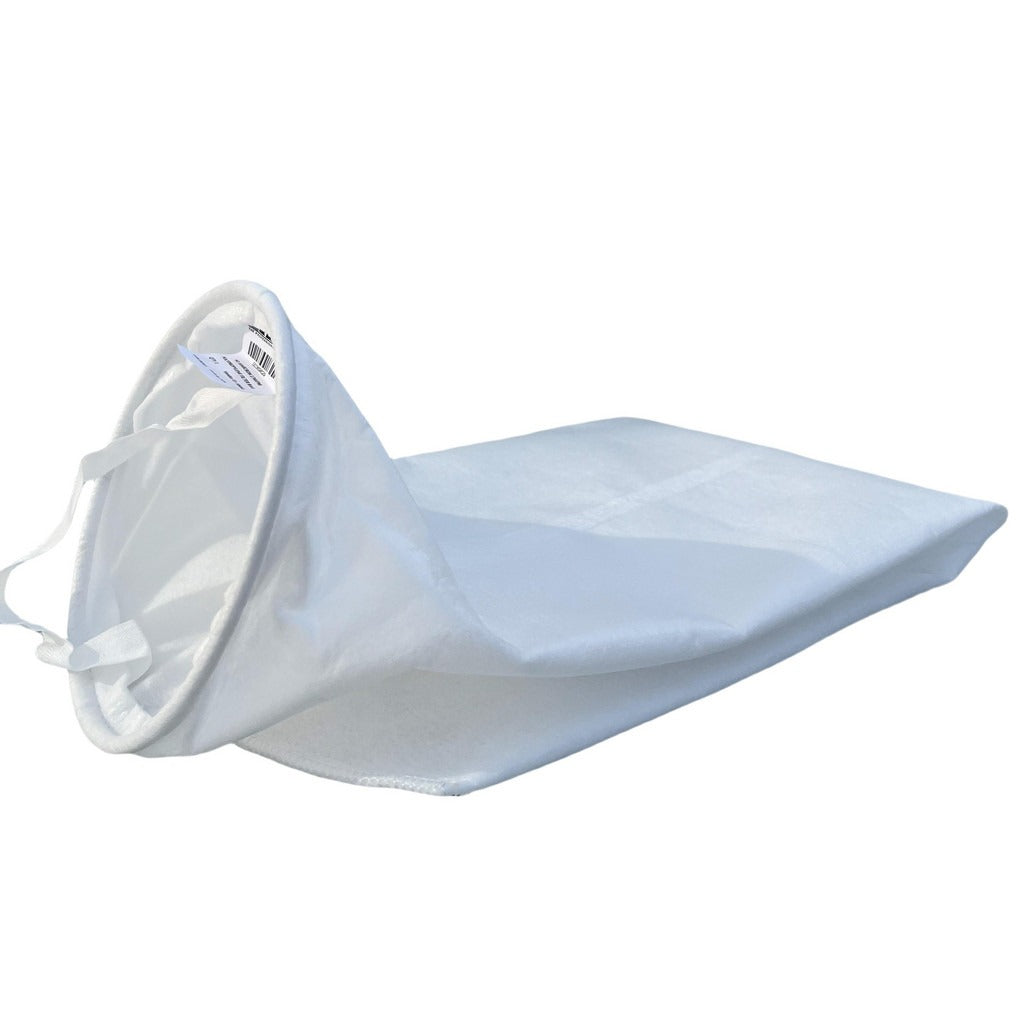

Pro-source PP50S2-PRO Bag Filter 50 Micron Size 2 200 Gpm

Product Description

The PRO-SOURCE PP50S2-PRO is a Size 2 high flow polypropylene bag filter rated at 50 microns and designed for liquid filtration applications. The filter measures 7 inches in diameter and 32 inches in length, providing 4.4 square feet of filtration area. With a maximum flow rate of 200 GPM and a maximum working temperature of 194 degrees F, this filter handles demanding industrial and commercial liquid filtration duties. It is typically installed by mechanical contractors, industrial maintenance technicians, and water treatment professionals working on process filtration, coolant systems, and similar high-volume liquid handling circuits.

This filter is suited for high-volume liquid filtration systems where consistent particle removal at 50 microns is required. The polypropylene construction resists a broad range of process fluids and mild chemicals encountered in industrial settings. It is compatible with CBC1D2T and CBG1D2T filter housings as specified by the manufacturer, making it a reliable drop-in element for those systems. Applications include process water, light industrial fluids, and similar liquid streams where bag-style filtration is the standard approach.

Key Features

• 50 micron filtration rating for consistent particle capture in liquid service
• 200 GPM maximum flow rate supports high-volume process systems
• 4.4 square feet of filtration area in a standard Size 2 form factor
• Polypropylene body material resists corrosion and a wide range of process fluids
• Maximum working temperature of 194 degrees F suits heated process fluid applications
• 7 inch diameter by 32 inch length fits standard Size 2 filter housings

Compatibility

Designed to fit CBC1D2T and CBG1D2T filter housings as specified by the manufacturer. Suitable for standard Size 2 bag filter housing applications.

Installation Notes

Installation should be performed by a qualified mechanical or industrial maintenance technician. Depressurize and isolate the filter housing completely before opening and replacing the bag element. Confirm the housing O-ring or gasket is seated correctly before returning the system to service. Follow applicable local and facility codes for liquid filtration systems when performing maintenance.
