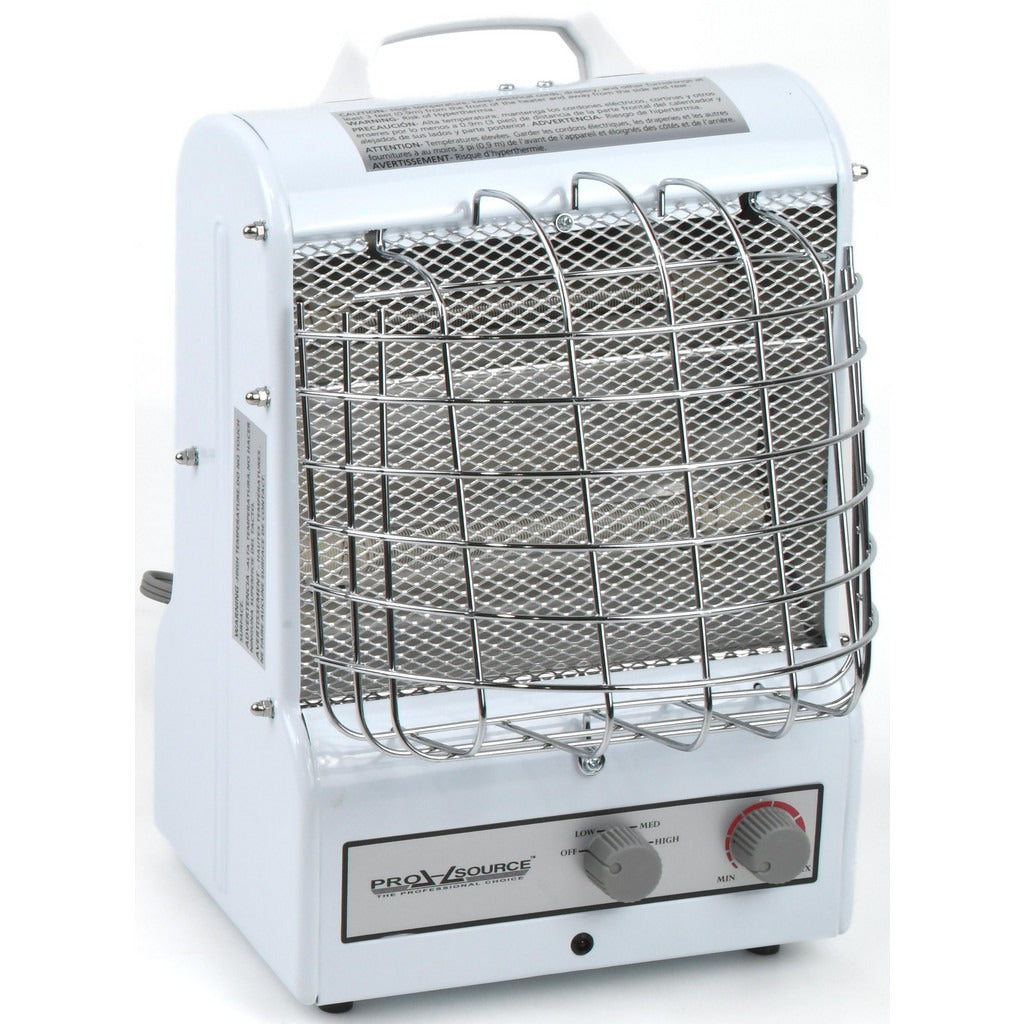

Pro-source PH-931 Portable Unit Heater 5200 Btu/h

Product Description

The PRO-SOURCE PH-931 is a portable electric unit heater rated at 5,200 BTU/h maximum output and 1,500 watts. It operates on 120 volts and draws 12.5 amps, making it compatible with standard household and light commercial circuits. The unit also provides a lower heat setting at 2,080 BTU/h minimum output for more controlled warmth. This heater is designed for spot heating in workshops, garages, job sites, and utility spaces where a permanent installation is not practical. HVAC technicians, electricians, and facilities maintenance personnel are typical installers or service contacts for this type of equipment.

The PH-931 is suited for portable heating applications in residential garages, small commercial work areas, and temporary job-site enclosures. Its compact footprint and standard 120-volt power requirement allow it to be deployed quickly without dedicated wiring. The dual BTU output range makes it adaptable for maintaining background heat at the lower setting or rapidly warming a space at full output. It is commonly used in light industrial and trade environments where supplemental or temporary heat is needed during cooler months.

Key Features

• 5,200 BTU/h maximum heating output at full 1,500-watt draw
• 2,080 BTU/h minimum output setting for lower-intensity heating
• Operates on standard 120-volt, 12.5-amp circuits
• Portable design allows repositioning without permanent installation
• Compact dimensions of 15 inches height, 12 inches width, and 11 inches length

Compatibility

Designed as a portable electric unit heater for use on standard 120-volt single-phase circuits in residential and light commercial settings where supplemental or temporary spot heat is required.

Installation Notes

Plug the unit into a properly rated 120-volt, 15-amp or greater circuit before operation. Verify the outlet and wiring are in compliance with applicable NEC requirements for portable electric heating equipment. Keep the unit away from flammable materials and ensure adequate clearance around the heater during operation. Always power down and unplug the heater before performing any inspection or service.
