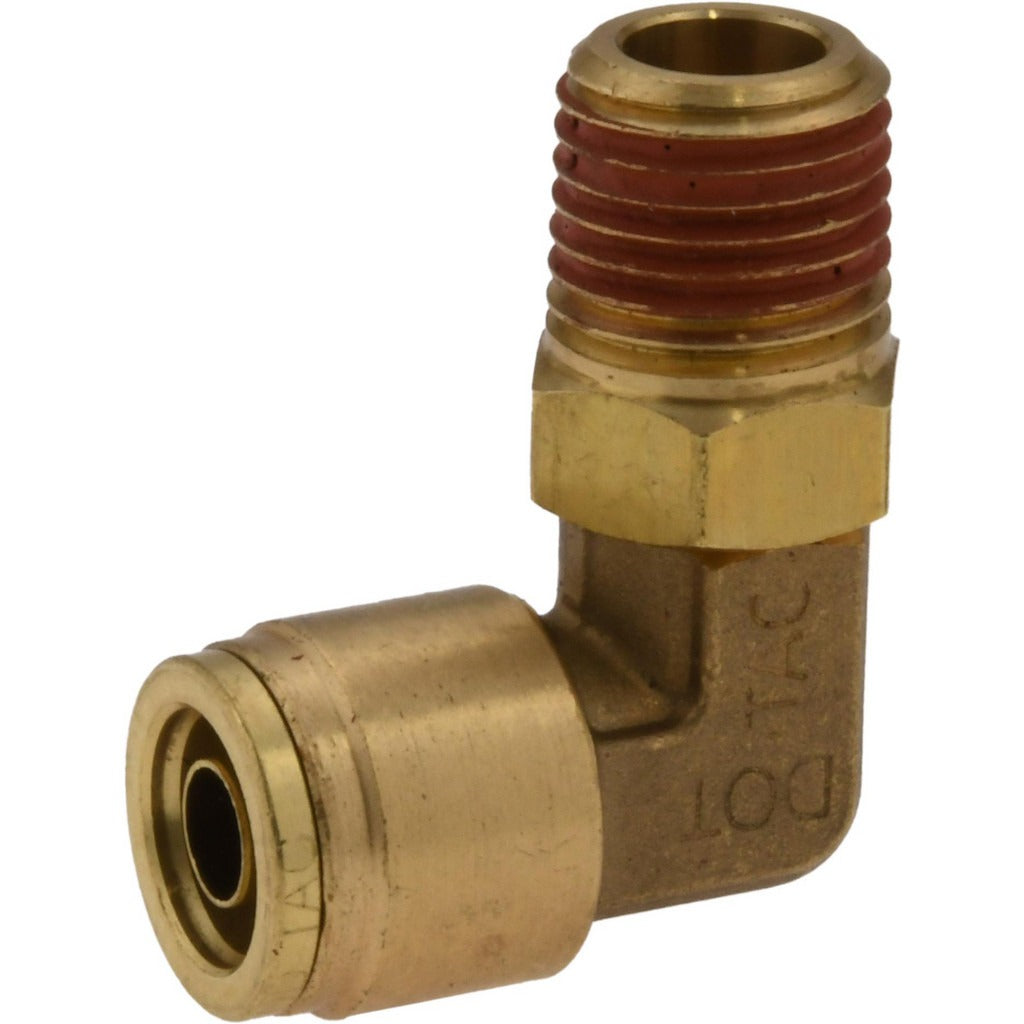

Pro-source PC69-DOTS-64 Brass 90 Deg Swivel Elbow Fitting

Product Description

The PRO-SOURCE PC69-DOTS-64 is a brass 90-degree swivel elbow tube fitting designed for push-to-connect installations in general-purpose pneumatic and fluid systems. One end accepts 3/8-inch outside diameter tubing via a tool-free push-to-connect mechanism, while the other end terminates in a male NPT threaded connection. The swivel elbow design allows the threaded end to rotate during installation, which reduces stress on the tubing and simplifies routing in tight spaces. Constructed from brass, this fitting meets DOT standards, making it suitable for applications where compliance with Department of Transportation requirements is necessary. Licensed plumbers and fluid system technicians are the typical installers.

This fitting is suited for general-purpose pneumatic lines, compressed air systems, and fluid transfer applications in both residential and light commercial settings. The push-to-connect end accepts 3/8-inch OD tubing without additional tools, while the MNPT thread allows connection to standard NPT-threaded ports on valves, manifolds, cylinders, and similar equipment. The 90-degree elbow configuration is commonly used when tubing must change direction at a fitting body rather than through a bend in the tube itself.

Key Features

• Brass construction meets DOT standards for use in compliant systems
• 90-degree swivel elbow allows threaded end rotation during makeup, reducing tubing stress
• Push-to-connect end accepts 3/8-inch OD tubing without tools
• Male NPT threaded outlet connects to standard NPT-ported components
• Sold as a single unit with a minimum order quantity of one

Compatibility

Designed for general-purpose use with 3/8-inch outside diameter tubing in DOT-compliant pneumatic and fluid systems using standard NPT-threaded ports.

Installation Notes

Depressurize and isolate the system completely before removing or installing any fittings. Ensure the tubing end is cut cleanly and squarely and is free of burrs before inserting into the push-to-connect end. Apply thread sealant compatible with the system fluid to the MNPT threads before making up the threaded connection. Follow applicable plumbing and pneumatic codes for the jurisdiction and system type.
