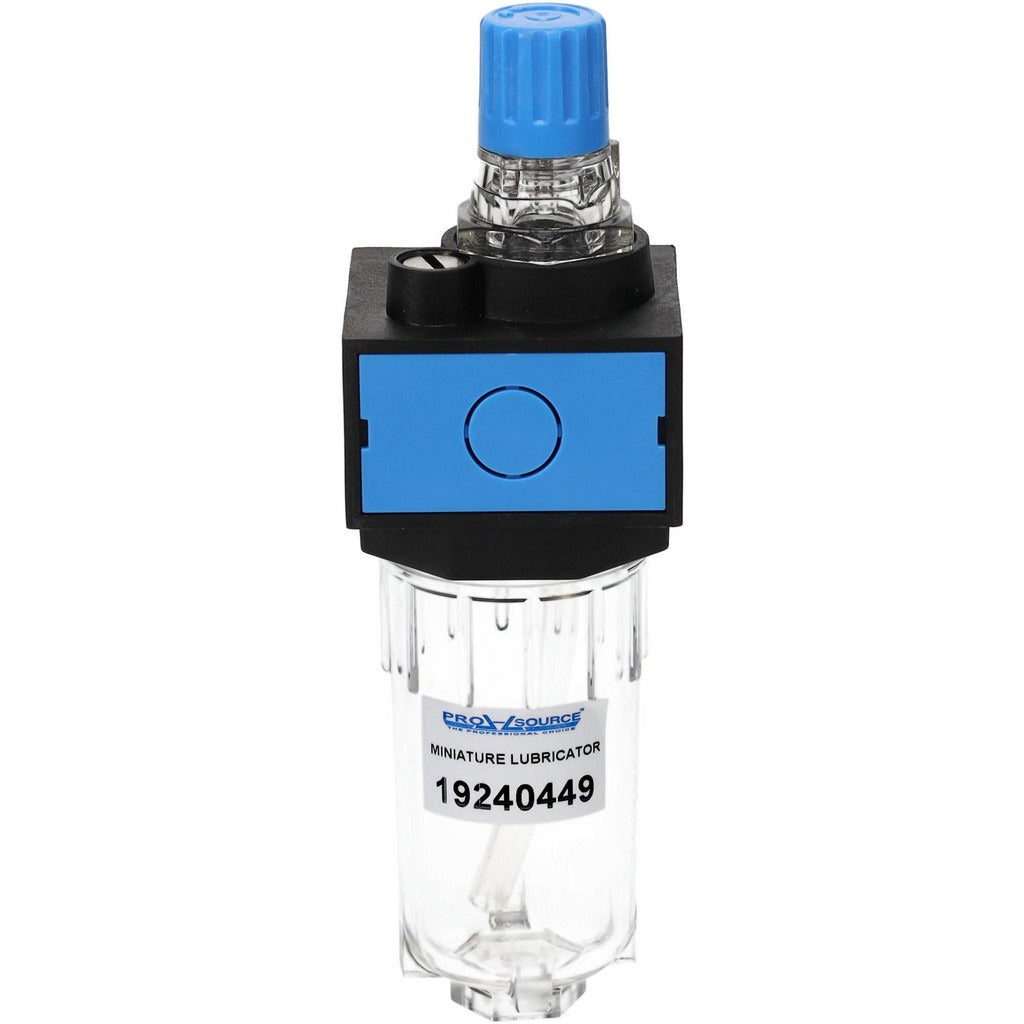

Pro-source L200A-02N Miniature Air Lubricator 1/4 Npt

Product Description

The PRO-SOURCE L200A-02N is a miniature compressed air lubricator designed to introduce oil mist into a pneumatic system, protecting downstream tools, valves, and actuators from wear and corrosion. Built with a polycarbonate body and polycarbonate bowl, it offers a lightweight, corrosion-resistant construction suited for light-duty pneumatic circuits. The 1/4 inch NPT port size and modular connection design make it straightforward to integrate into inline filter-regulator-lubricator (FRL) assemblies. A built-in sight glass allows technicians to monitor oil level and drip rate without disassembling the unit. At 0.37 pounds, it is compact enough for space-constrained installations.

This lubricator is intended for use in residential, commercial, and light industrial pneumatic systems where a miniature form factor is required. Typical applications include air tool preparation lines, small pneumatic control circuits, and modular FRL station assemblies. It is suited for installations where port size, low flow resistance, and inline compatibility are the primary selection criteria. The 1/4 inch NPT port accommodates common small-bore pneumatic plumbing configurations found in HVAC controls, light production equipment, and service shop air lines.

Key Features

• 1/4 inch NPT port size for compatibility with standard small-bore pneumatic lines
• Polycarbonate body and bowl provide lightweight, corrosion-resistant construction
• Modular connection design allows integration into FRL assemblies
• Integrated sight glass for visual oil level and drip rate monitoring without disassembly
• NBR seal material suitable for general compressed air service
• 1.7 oz bowl capacity for extended service intervals on low-consumption circuits

Compatibility

Designed as an OEM-style replacement or inline addition for miniature pneumatic FRL systems using 1/4 inch NPT porting with modular connection capability.

Installation Notes

Installation is typically performed by a qualified pneumatic or mechanical technician. Depressurize and bleed the air line completely before installing or servicing this lubricator. Verify that the flow direction arrow on the body is oriented correctly relative to the direction of airflow in the system. Use thread sealant appropriate for pneumatic service on NPT connections and avoid overtightening into polycarbonate-ported fittings.
