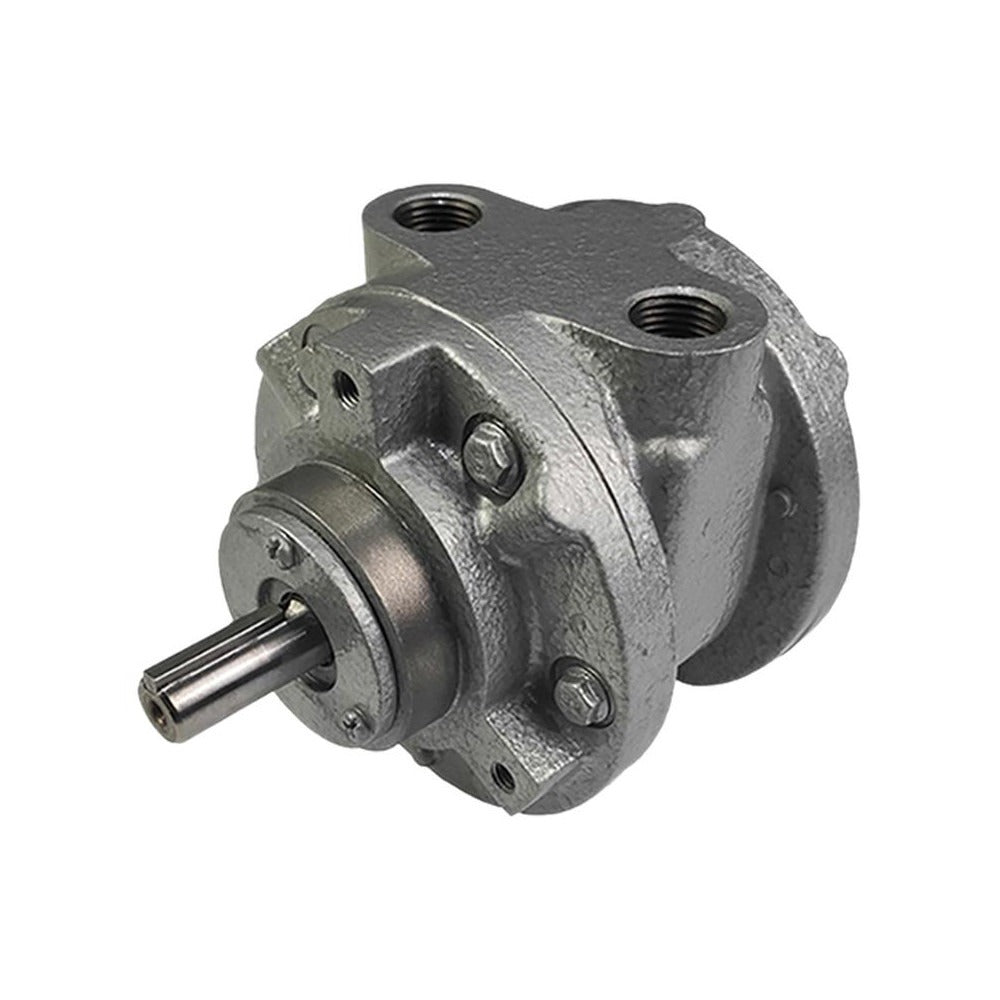

Pro-source HX6AM-V Air Motor 4 Hp 3000 Rpm

Product Description

The PRO-SOURCE HX6AM-V is a 4 HP pneumatic air motor designed for industrial and commercial applications where compressed air is the preferred or required power source. It delivers up to 3000 RPM at a maximum working pressure of 100 psi, with a minimum operating speed of 300 RPM. The reversible keyed shaft measures 1.26 inches in length and 5/8 inch in diameter, allowing it to drive a range of load types. Weighing 15.87 pounds, the HX6AM-V features a face mount configuration and a 1/2 inch NPT inlet thread. A 4-vane rotor design provides smooth, consistent torque output of 7.0 ft/lb at rated conditions. Licensed mechanics and industrial maintenance technicians are the primary installers of this unit.

The HX6AM-V suits applications where electric motors are impractical due to hazardous environments, wash-down conditions, or the need for variable speed control without electronic drives. Typical use cases include conveyor drives, agitators, hoists, and assembly tooling in manufacturing, food processing, and petrochemical facilities. The reversible shaft rotation makes it adaptable to bidirectional drive requirements without additional hardware. The face mount style allows direct attachment to gearboxes, brackets, or machine frames.

Key Features

• 4 HP output with speed range from 300 to 3000 RPM
• Reversible rotation for bidirectional drive applications
• Keyed shaft, 5/8 inch diameter and 1.26 inches long
• Face mount style for direct attachment to gearboxes or frames
• 1/2 inch NPT inlet thread, compatible with standard compressed air plumbing
• 4-vane rotor delivering 7.0 ft/lb torque at 100 psi maximum working pressure

Compatibility

Designed as an OEM-style replacement or new-install pneumatic air motor for industrial machinery requiring a face-mount, 4 HP, reversible-rotation vane motor with a 1/2 inch NPT air inlet.

Installation Notes

Installation should be performed by a qualified industrial mechanic or maintenance technician familiar with pneumatic power systems. Isolate and depressurize the air supply line before connecting or disconnecting the motor. Ensure the air supply is filtered, lubricated, and regulated to the rated working pressure before startup. Follow applicable OSHA and facility safety standards for lockout/tagout procedures during installation and maintenance.
