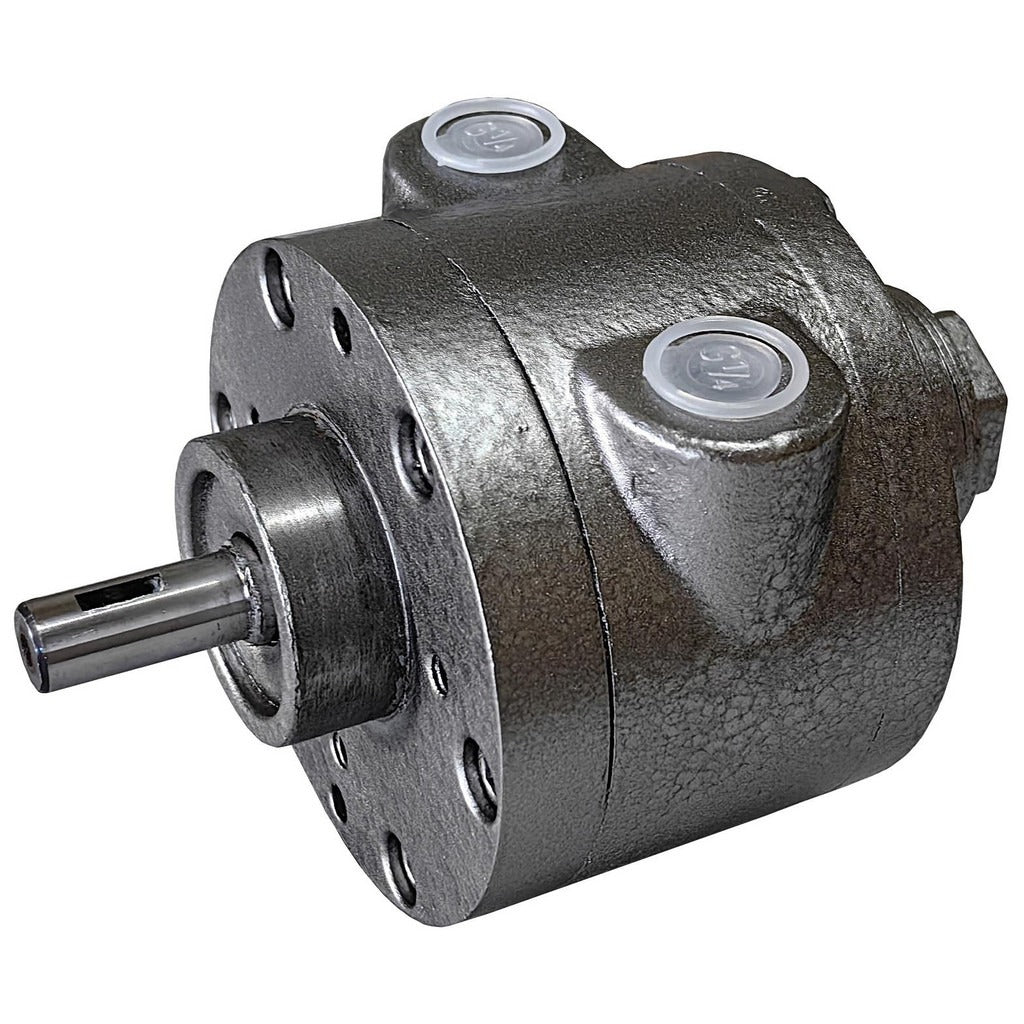

Pro-source HX4AM-V Air Motor 1.7 Hp 3000 Rpm Reversible

Product Description

The PRO-SOURCE HX4AM-V is a vane-type pneumatic air motor rated at 1.7 horsepower with a maximum speed of 3000 RPM and a minimum operating speed of 300 RPM. It accepts compressed air at up to 100 psi through a 1/4-inch NPT inlet and delivers up to 3.0 ft/lb of torque. The motor features a reversible keyed shaft measuring 0.5 inches in diameter and 1.12 inches in length, making it suitable for bidirectional drive applications. At 7.72 pounds, it is compact enough for integration into automated tooling, conveyor drives, and pneumatic equipment assemblies. Licensed HVAC technicians, industrial mechanics, and equipment integrators are the primary installers.

The HX4AM-V is designed for use in industrial and commercial environments where electrical motors are impractical due to hazardous locations, wash-down conditions, or compressed-air infrastructure already in place. Typical applications include conveyor systems, agitators, hoists, and light-duty rotary drive assemblies. The face-mount configuration allows direct attachment to gearboxes, pump flanges, or custom mounting plates, simplifying integration into existing pneumatic systems. Its 4-vane design delivers smooth, consistent torque output across its operating speed range.

Key Features

• 1.7 HP output with a maximum speed of 3000 RPM and minimum speed of 300 RPM
• Reversible shaft rotation for bidirectional operation
• Keyed 0.5-inch diameter shaft, 1.12 inches in length
• 1/4-inch NPT air inlet rated to 100 psi maximum working pressure
• Face-mount style for direct coupling to gearboxes or flanged assemblies
• 4-vane design for smooth torque delivery at 3.0 ft/lb (36 in/lb)

Compatibility

Designed as an OEM-style replacement or direct-install pneumatic air motor for industrial rotary drive applications requiring a face-mount, 1/4-inch NPT, reversible vane motor at 1.7 HP.

Installation Notes

Installation should be performed by a qualified industrial mechanic or pneumatic systems technician. Isolate and depressurize the air supply line before mounting or demounting the motor. Verify that supply air pressure does not exceed 100 psi and that the air supply is clean and lubricated per the equipment manufacturer's requirements. Secure the motor to the mounting face using fasteners appropriate for the torque load and verify shaft alignment before returning the system to service.
