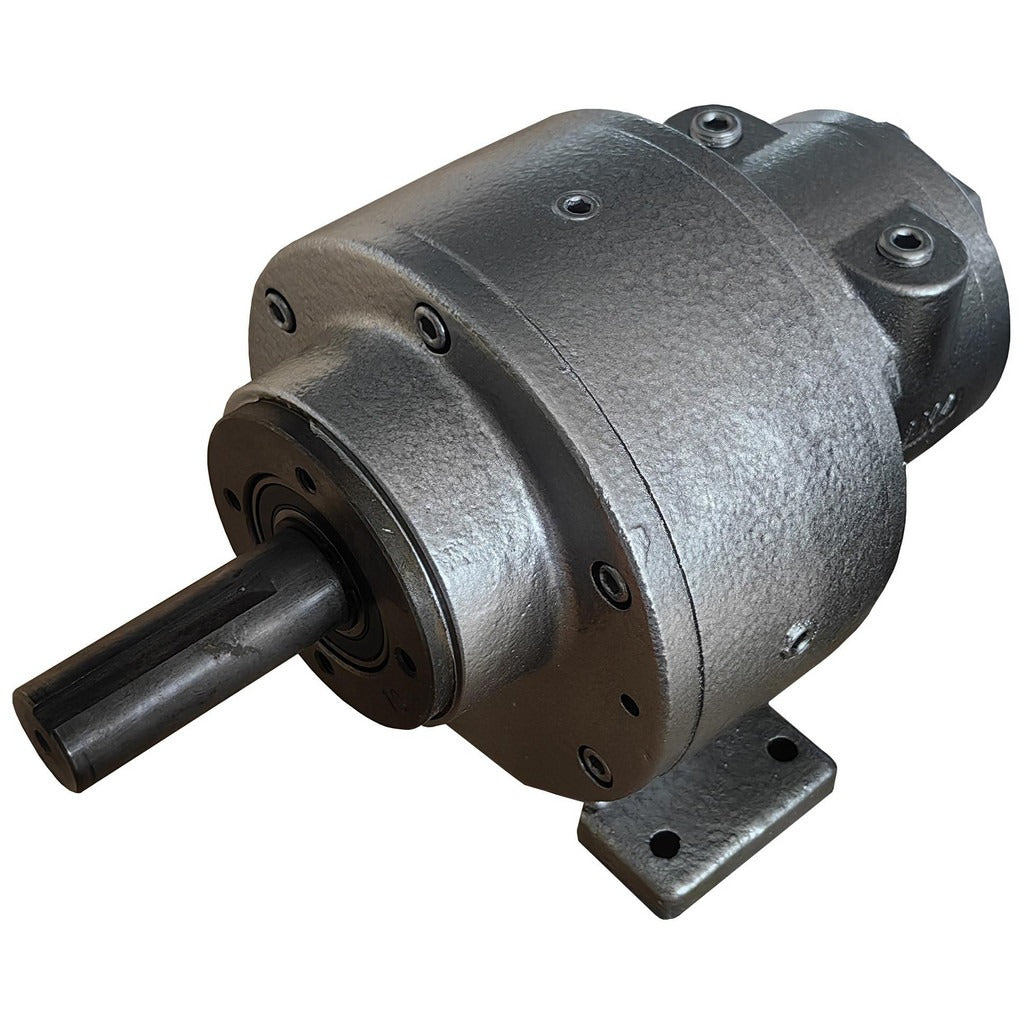

Pro-source HX4AM-RV-15 Air Actuated Motor 1-1/4 Hp

Product Description

The PRO-SOURCE HX4AM-RV-15 is a heavy-duty air actuated motor designed for industrial and mechanical drive applications where compressed air is the power source. Rated at 1-1/4 horsepower with a 15:1 gear ratio, this motor delivers up to 400 inch-pounds of torque while keeping output speed to a maximum of 200 RPM and a minimum of 20 RPM. The reversible keyed shaft measures 2.72 inches in length and 1 inch in diameter, supporting bidirectional operation. Maximum working pressure is 100 psi with a maximum air flow of 60 SCFM, feeding four vanes for reliable pneumatic output. At 29.76 pounds, the unit is built for sustained service in demanding environments.

This motor fits applications requiring controlled rotational output from a compressed air supply, such as conveyor drives, mixer drives, and actuator systems in industrial, manufacturing, and maintenance settings. The reversible shaft rotation makes it well-suited for processes that require forward and reverse cycling. The foot and face mount configuration allows flexible installation in both horizontal and vertical orientations, simplifying integration into existing equipment frames or custom fabricated mounts. A licensed industrial or mechanical technician typically handles installation in compliance with applicable pneumatic system codes and workplace safety standards.

Key Features

• Reversible shaft rotation for bidirectional drive applications
• Keyed shaft at 1 inch diameter and 2.72 inches in length for secure coupling
• 15:1 gear ratio delivers up to 400 inch-pounds (33.33 foot-pounds) of torque
• Foot and face mount style for versatile installation orientation
• 1/4-inch NPT air inlet thread for standard compressed air line connection
• 4-vane design supports consistent pneumatic performance across the operating range

Compatibility

Designed as an OEM-style replacement or direct-fit air actuated motor for industrial pneumatic drive systems requiring a 1-1/4 HP, 15:1 gear ratio motor with foot and face mount configuration.

Installation Notes

Installation should be performed by a qualified industrial mechanic or pneumatic systems technician. Isolate and depressurize the compressed air supply before mounting or connecting the motor. Verify that supply line pressure does not exceed the 100 psi maximum working pressure rating. Secure all keyed shaft couplings and confirm mount fasteners are fully torqued to the equipment frame specifications before returning the system to service.
