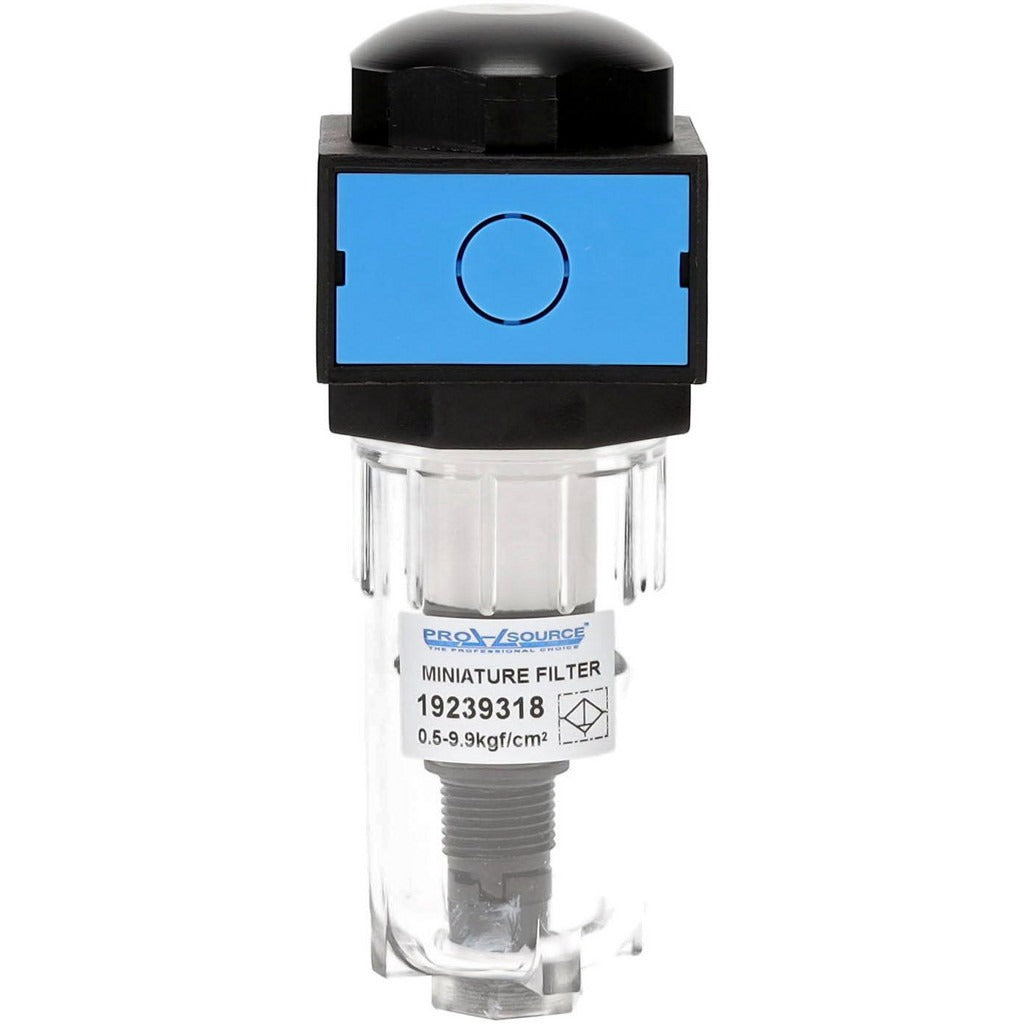

Pro-source F200A-02N Miniature Air Filter 1/4 in Npt

Product Description

The PRO-SOURCE F200A-02N is a miniature compressed air filter designed to remove particulate contamination from pneumatic system supply lines. Rated at 5 microns, this filter traps fine particles using a polyethylene filter media housed in a polycarbonate bowl with an integrated sight glass. Flow capacity reaches 67.09 standard cubic feet per minute (SCFM) through a 1/4 in NPT port, making it well-suited for compact filter-regulator-lubricator assemblies and point-of-use filtration in light industrial pneumatic circuits. The semi-automatic drain clears collected condensate without full system shutdown. Installation and service are handled by pneumatic technicians or maintenance professionals.

This miniature filter is intended for use in compressed air systems where space is limited and clean, dry air is required at the point of use. Typical applications include pneumatic tooling stations, automation equipment, and small-bore actuator circuits operating in light industrial or manufacturing environments. The modular connection design allows this unit to be combined with compatible regulators and lubricators in a manifold-style assembly. Minimum operating temperature is 14 degrees F, which suits most indoor compressed air installations.

Key Features

• 5-micron polyethylene filter media removes fine particulate from compressed air supply lines
• 67.09 SCFM flow capacity through 1/4 in NPT port
• Semi-automatic drain removes collected condensate without full system shutoff
• Polycarbonate bowl with integrated sight glass allows visual inspection of bowl condition
• Modular connection supports assembly with compatible regulators and lubricators
• Compact footprint: 6.47 inches tall, 2.24 inches long, 1.77 inches wide

Compatibility

Designed as an OEM-style replacement or direct-install miniature compressed air filter for 1/4 in NPT pneumatic systems compatible with modular filter-regulator-lubricator assemblies.

Installation Notes

Installation should be performed by a qualified pneumatic technician or maintenance professional. Depressurize and lock out the compressed air supply line before installing or servicing this filter. Ensure thread sealant compatible with compressed air systems is applied to NPT threads per shop standard practice. Do not exceed the rated flow or temperature limits of the unit.
