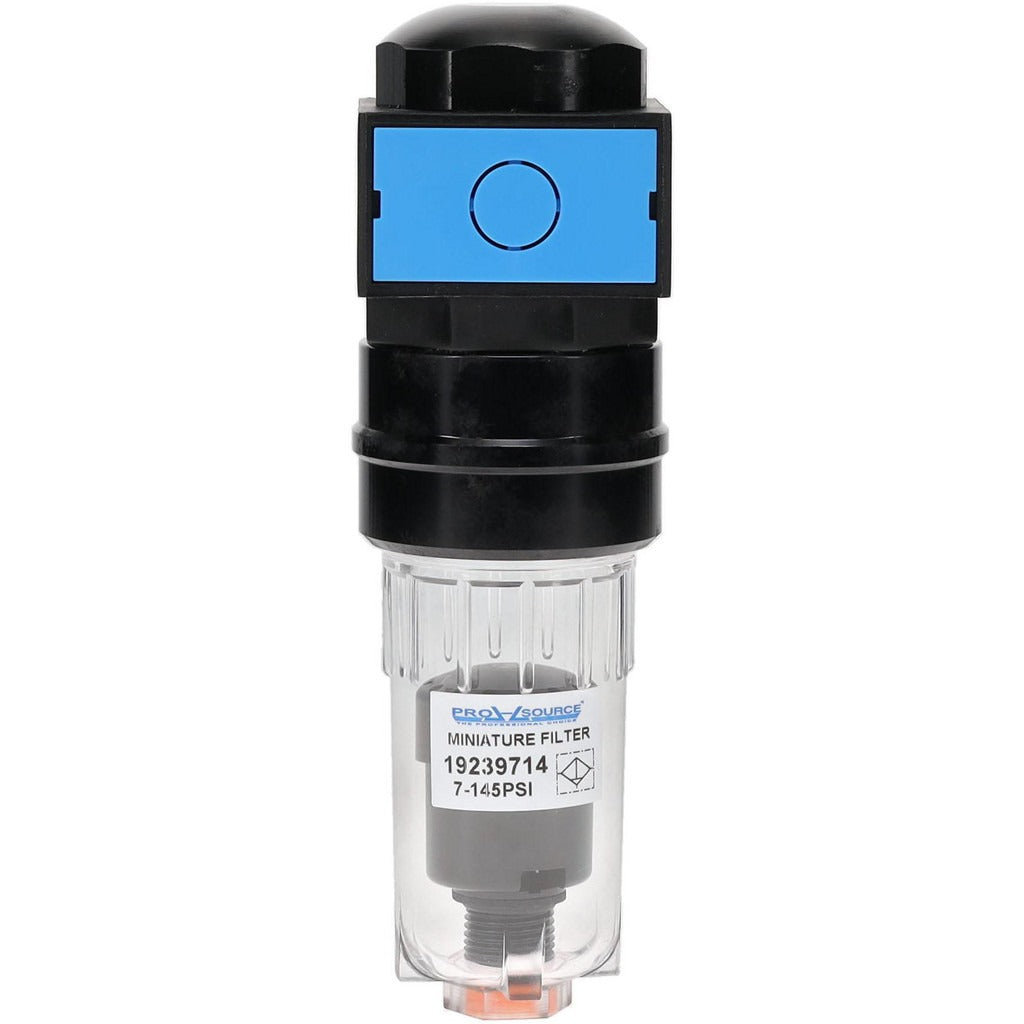

Pro-source F200A-01ND Miniature Air Filter 1/8 Npt 5 Micron

Product Description

The PRO-SOURCE F200A-01ND is a miniature compressed air filter designed to remove particulate contamination from pneumatic supply lines. It accepts a 1/8 inch NPT port connection and delivers a maximum flow of 67.09 standard cubic feet per minute (SCFM), making it well suited for small-bore pneumatic circuits where clean, dry air is critical. The 5-micron polyethylene filter media captures fine particulate before it reaches downstream valves, cylinders, and instrumentation. An automatic drain eliminates the need for manual bowl servicing, and a polycarbonate bowl with integrated sight glass allows quick visual inspection of collected condensate and bowl capacity.

This filter is used in compressed air systems serving light industrial, automation, and process control applications. Its modular connection design allows it to be combined with regulators and lubricators in a standard filter-regulator-lubricator (FRL) assembly. Typical installations include pneumatic control panels, small actuator circuits, and point-of-use air preparation stations where space is limited and a 1/8 inch NPT supply line is present. Installation is performed by pipefitters, pneumatic technicians, and maintenance mechanics.

Key Features

• 5-micron polyethylene filter media removes fine particulate from compressed air supply
• 1/8 inch NPT port for direct integration into small-bore pneumatic lines
• Automatic drain continuously purges collected condensate without manual intervention
• Polycarbonate bowl with sight glass enables visual monitoring of bowl condition
• Modular connection supports FRL assembly configurations
• 67.09 SCFM flow capacity suitable for low-volume pneumatic circuits

Compatibility

Designed as an OEM-style replacement or new-installation miniature compressed air filter for 1/8 inch NPT pneumatic systems requiring 5-micron particulate filtration and automatic drain function.

Installation Notes

Shut off and depressurize the compressed air supply line completely before installing or servicing this filter. Use appropriate thread sealant on the NPT connections and tighten to hand-tight plus the number of turns recommended by standard pneumatic fitting practice — do not overtighten polycarbonate bowl assemblies. Verify that system operating pressure and temperature remain within the rated limits of the unit before returning the line to service. This work is typically performed by a qualified pipefitter or pneumatic systems technician.
