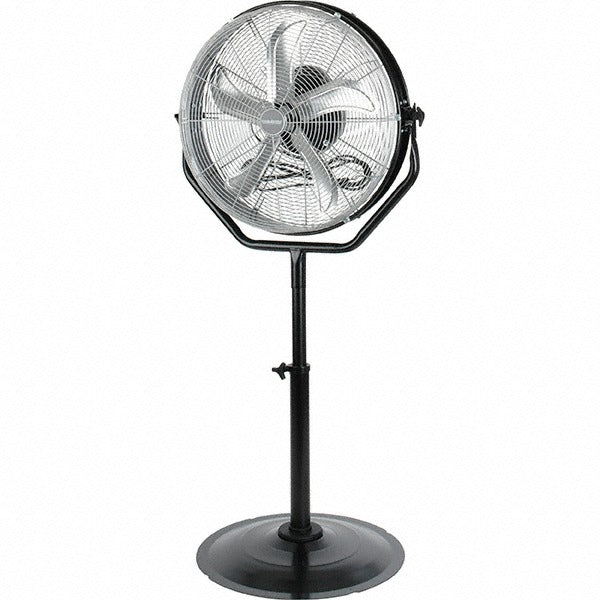

Pro-source CED5346 Industrial Pedestal Fan 1/3 Hp 24 in

Product Description

The PRO-SOURCE CED5346 is a non-oscillating industrial circulation pedestal fan built for continuous-duty airflow in demanding commercial and industrial environments. Powered by a 1/3 hp single-phase motor running at 120 volts, it delivers up to 8,500 CFM at high speed through a 24-inch, 5-blade fan head. Three selectable speed settings allow technicians and facility managers to dial in airflow for the specific space. The open enclosure motor design allows heat to dissipate freely, making this unit well-suited for warehouses, production floors, loading docks, and large mechanical rooms where sustained air circulation is required.

This pedestal fan is intended for industrial and heavy commercial applications where a portable or semi-permanent floor-standing air circulation solution is needed. Typical installations include manufacturing facilities, garages, agricultural buildings, and large equipment rooms. The fixed, non-oscillating head delivers concentrated directional airflow to a defined zone. At 66.93 inches tall with a footprint of approximately 29.53 inches wide by 27.09 inches deep, it occupies minimal floor space relative to its airflow output. Installation is straightforward and does not require permanent mounting or electrical rough-in beyond a standard 120-volt circuit.

Key Features

• 24-inch, 5-blade fan head delivers up to 8,500 CFM at high speed
• 1/3 hp single-phase motor operates on 120 volts at up to 1,080 RPM
• Three-speed control: low (4,500 CFM), medium (7,200 CFM), and high (8,500 CFM)
• Non-oscillating fixed head for directed, concentrated airflow
• Open enclosure motor construction supports heat dissipation in continuous-duty use
• Freestanding pedestal design requires no permanent mounting hardware

Compatibility

Designed as a freestanding industrial circulation fan for use on standard single-phase 120-volt circuits in commercial and industrial facilities.

Installation Notes

This fan is installed by qualified maintenance or facilities personnel and does not require licensed electrical work when plugged into an existing 120-volt outlet. Verify the circuit is rated for the motor load before connecting. Position the pedestal on a level, stable surface and confirm the base is fully assembled and locked before energizing. Do not operate with the blade guard removed.
