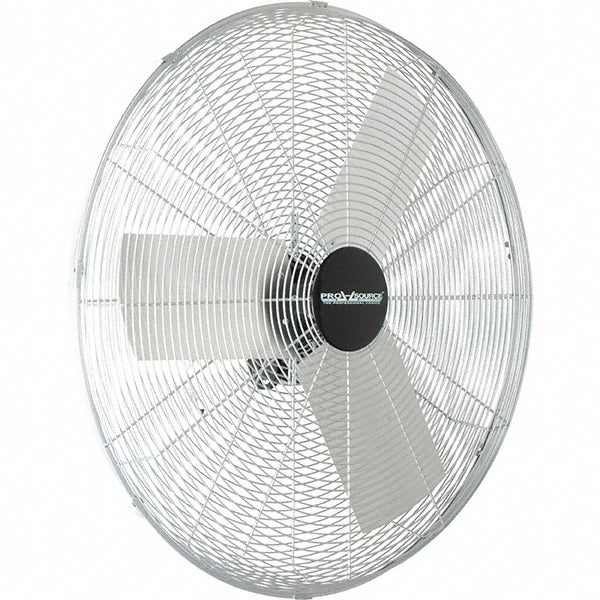

Pro-source CED4046 Industrial Circulation Fan 7900 Cfm

Product Description

The PRO-SOURCE CED4046 is a two-speed industrial circulation fan designed for high-volume airflow in demanding shop, warehouse, and light industrial environments. Running on 115 volts and powered by a 1/4 horsepower motor, it moves up to 7,900 CFM at high speed and 6,000 CFM at low speed through a 30-inch blade. The unit ships as a fan head only, without a stand or pedestal, making it well suited for permanent mounting applications where the installer supplies the support structure. Licensed electricians and maintenance technicians are the typical installers.

This fan is intended for industrial and commercial circulation use where a fixed, non-oscillating airflow pattern is needed. The fan head only configuration makes it a direct fit for custom mounting brackets, ceiling hangs, wall mounts, or OEM equipment frames. Two selectable speed settings let the operator balance airflow volume against noise and energy draw depending on the application. Typical installs include production floors, equipment bays, paint booths, agricultural buildings, and large garages where consistent air movement is critical for worker comfort or process cooling.

Key Features

• High-speed output of 7,900 CFM for broad industrial air circulation coverage
• Low-speed setting delivers 6,000 CFM for quieter or reduced-flow operation
• 30-inch blade diameter maximizes airflow at 1/4 horsepower input
• Non-oscillating head provides fixed, directional airflow
• Fan head only design allows integration into custom or existing mounting systems
• Single-phase 115-volt operation compatible with standard commercial branch circuits

Compatibility

Designed as a fan head only unit for industrial circulation applications requiring a 30-inch, 115-volt, two-speed airflow source. No specific replacement or OEM compatibility was provided in the product data.

Installation Notes

Installation should be performed by a qualified electrician or licensed maintenance technician in accordance with NEC guidelines for motor-driven equipment. Disconnect and lock out power at the branch circuit before making any wiring connections. Because no stand is included, the installer must supply and secure an appropriate mounting structure rated for the fan head weight before energizing the unit. Verify supply voltage matches the 115-volt rating before connecting.
