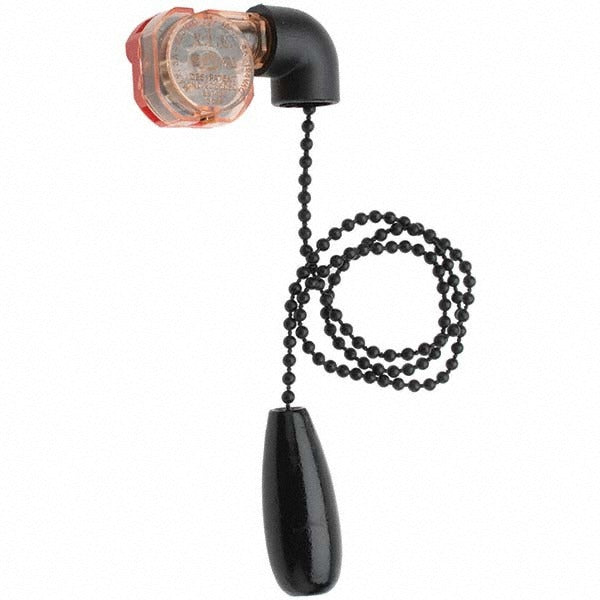

Pro-source CED4045-WP-SW Fan Speed Pull Switch 3 Speed

Product Description

The PRO-SOURCE CED4045-WP-SW is a three-speed pull switch designed for fan speed control in residential and light commercial ventilation applications. Rated at 125 volts and 6 amps, this compact pull switch allows users to select from three distinct fan speeds with a simple cord pull. The switch measures 1.34 inches in length, 0.98 inches in width, and 0.63 inches in height, making it well suited for replacement in ceiling fans, exhaust fans, and similar low-voltage fan assemblies. HVAC technicians and electricians install this type of control when restoring or upgrading existing fan speed switching hardware.

This pull switch is a direct replacement component for residential ceiling fans and exhaust fan assemblies that use a three-speed pull-cord switching mechanism. It is appropriate for installations where the original pull switch has failed or become intermittent. The small form factor allows it to fit within standard fan canopy housings. Licensed electricians and HVAC technicians handling fan control wiring are the primary installers of this component.

Key Features

• Three-speed pull switch control for fan speed selection
• Rated 125 volts and 6 amps for compatibility with standard residential fan circuits
• Compact dimensions: 1.34 inches x 0.98 inches x 0.63 inches
• Pull-cord actuation for straightforward speed cycling
• Lightweight at 0.024 pounds for easy handling in tight canopy spaces

Compatibility

Designed as an OEM-style replacement pull switch for residential and light commercial ceiling fans and exhaust fans using a three-speed pull-cord switching mechanism rated at 125 volts and 6 amps.

Installation Notes

Installation should be performed by a licensed electrician or qualified HVAC technician. Disconnect power at the circuit breaker before removing the fan canopy or accessing the switch housing. Follow applicable NEC requirements for fan control wiring and ensure all wire connections are secure before restoring power. Do not exceed the rated 125-volt, 6-amp load when wiring the replacement switch.
