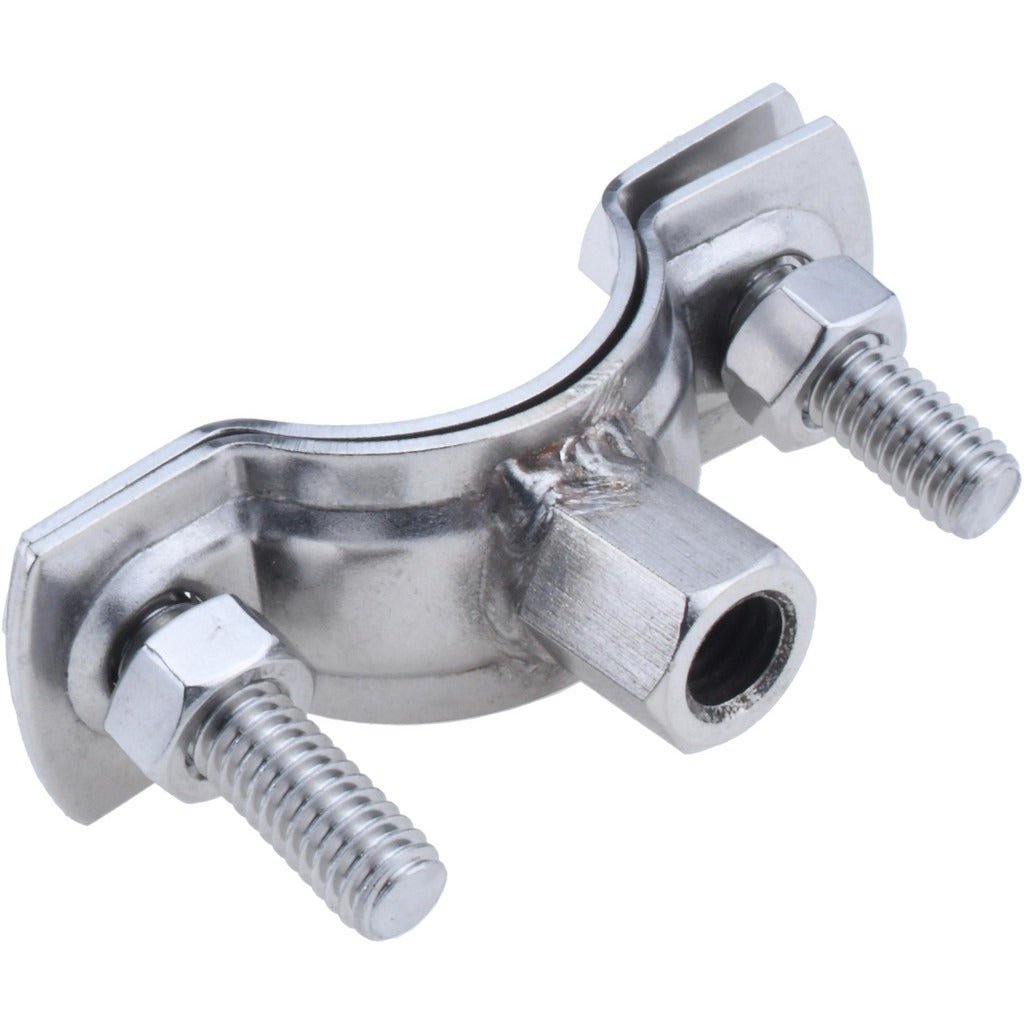

Pro-source Bgss 34 Split Ring Hanger 304 Stainless Steel

Product Description

The PRO-SOURCE BGSS 34 is a split ring hanger designed to support pipe in mechanical, plumbing, and HVAC piping systems. It accepts a 3/8-inch threaded rod and is fabricated from 304 grade stainless steel, making it well suited for installations where corrosion resistance is a priority. Split ring hangers allow a section of the ring to open so the pipe can be seated without threading it through a closed hoop, simplifying installation in tight spaces. This hanger is typically installed by licensed plumbers, pipefitters, or HVAC mechanics during rough-in or retrofit work.

This split ring hanger is used in residential and light commercial piping installations where suspended pipe support is required. Common applications include copper, steel, and plastic pipe runs suspended from structural members or unistrut framing. The 3/8-inch rod size is a standard fit for typical overhead piping support configurations in mechanical rooms, crawlspaces, and utility areas.

Key Features

• 304 stainless steel construction provides corrosion resistance in wet or chemically active environments
• Split ring design allows pipe to be loaded from the side without disassembling the hanger
• Accepts 3/8-inch threaded suspension rod
• Lightweight at approximately 0.12 pounds per unit
• Sold individually, minimum order quantity of 1

Compatibility

Designed as an OEM-style replacement or new-installation split ring pipe hanger compatible with standard 3/8-inch threaded rod suspension systems used in residential and commercial piping applications.

Installation Notes

Installation is typically performed by a licensed plumber or pipefitter in accordance with applicable mechanical codes such as the IPC or IFGC. Ensure the threaded rod and structural attachment point are rated for the intended pipe load before hanging. The split ring should be fully closed and secured around the pipe after seating. Do not exceed the load rating of the supporting structure or threaded rod assembly.
