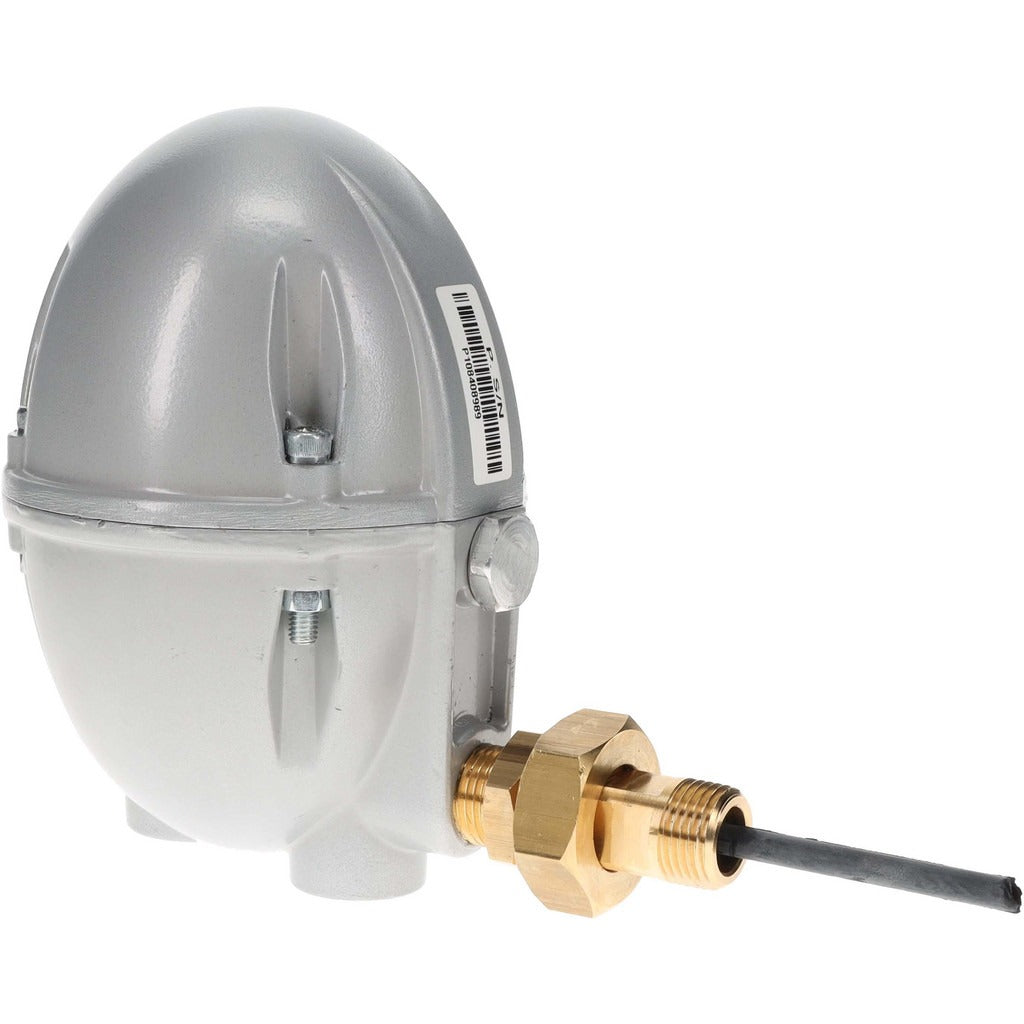

Pro-source 9815075535JP Mechanical Float Condensate Drain

Product Description

The PRO-SOURCE 9815075535JP is a mechanical float condensate drain designed to automatically discharge accumulated condensate from compressed air systems, pneumatic equipment, and filtration assemblies. The float mechanism opens the drain valve when liquid reaches a set level and closes when the chamber clears, preventing air loss and reducing manual drain intervals. It accepts a 1/2 inch NPT inlet connection and handles system pressures from 45 to 230 psi. Weighing 2 pounds and measuring 6.25 inches in height, it is a compact unit suited for inline installation on air receivers, filter housings, dryers, and similar equipment. Licensed mechanical contractors and industrial maintenance technicians are the typical installers.

This condensate drain is suited for compressed air distribution systems in both light commercial and industrial environments. Typical applications include air compressor receiver tanks, coalescing filter bowls, refrigerated air dryers, and aftercooler drain points. The 45 to 230 psi operating range makes it compatible with a broad range of system pressures found in standard plant-air and shop-air networks. Where manual draining is impractical or inconsistent, an automatic float drain like this unit reduces moisture carryover and helps maintain downstream air quality.

Key Features

• Mechanical float operation automatically drains condensate without electrical components or external power
• 1/2 inch NPT inlet and outlet connections for standard pipe thread fitment
• Wide operating pressure range of 45 to 230 psi suits most plant-air and industrial compressed air systems
• Compact footprint - 4.25 inches long by 4.5 inches wide by 6.25 inches tall - fits tight installation spaces
• 2 pound unit weight simplifies handling and mounting during installation

Compatibility

Designed as an OEM-style replacement or new-install automatic condensate drain for compressed air filtration and receiver systems operating between 45 and 230 psi with 1/2 inch NPT drain connections.

Installation Notes

Installation should be performed by a qualified millwright, pipefitter, or mechanical technician familiar with compressed air system service. Depressurize and lock out the system before removing any existing drain valve or fitting. Apply thread sealant rated for compressed air service to all NPT connections and verify joint integrity before returning the system to pressure. Confirm the installed orientation matches the manufacturer drain-flow direction to ensure proper float operation.
