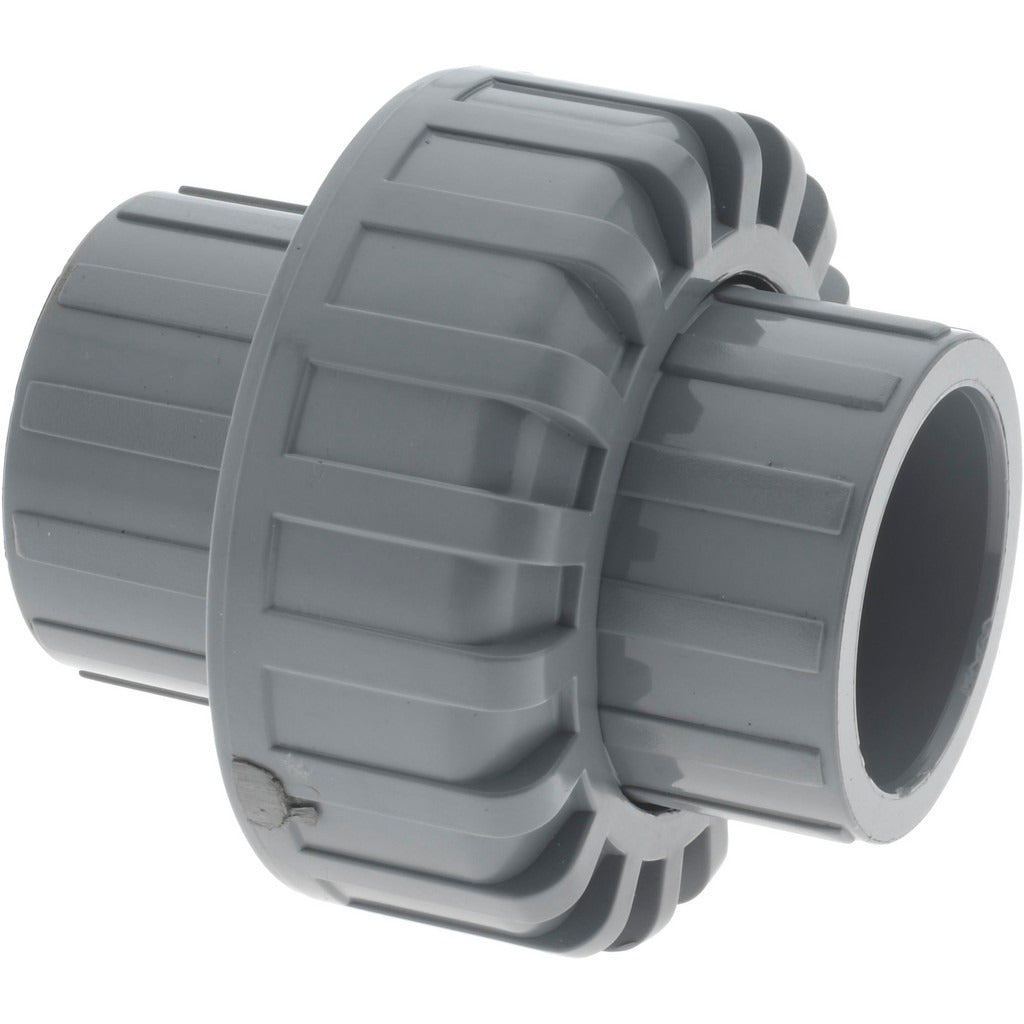

Pro-source 90341500109 3/4 in Cpvc Union Epdm O-ring Sch 80

Product Description

The PRO-SOURCE 90341500109 is a Schedule 80 CPVC pipe union designed for use in pressurized fluid systems where a removable, leak-resistant connection is required. Constructed from chlorinated polyvinyl chloride (CPVC) and sealed with an EPDM O-ring, this union allows technicians to disconnect piping runs without cutting pipe or disturbing adjacent fittings. The 3/4-inch slip x slip end connections accept solvent-cemented CPVC pipe on both sides. Schedule 80 wall thickness makes this fitting suitable for higher-pressure applications compared to Schedule 40. Plumbers and pipefitters working on chemical lines, hot and cold water systems, or industrial process piping are the primary installers.

This union is suited for residential and light commercial plumbing installations, as well as industrial process piping runs where CPVC is the specified material. Typical applications include hot and cold potable water distribution, chemical handling lines, and pool or spa chemical feed systems where metal fittings are not compatible with the fluid media. The slip configuration requires standard CPVC solvent cement and primer for assembly.

Key Features

• CPVC construction provides resistance to heat, pressure, and a broad range of chemicals
• EPDM O-ring provides a reliable seal at the union joint without thread sealant
• Schedule 80 wall thickness rated for higher-pressure service than Schedule 40
• Slip x slip end connections for solvent-cemented CPVC pipe on both sides
• Union design allows future disconnection without cutting the pipe
• 3/4-inch fitting size suits common residential and commercial branch lines

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3/4-inch Schedule 80 CPVC piping systems using slip-connect solvent-cement assembly.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable plumbing codes such as the IPC or local jurisdiction requirements. Shut off the water supply and depressurize the line before disassembly or installation. Use only CPVC-rated primer and solvent cement; do not use PVC cement alone on CPVC fittings. Allow full cure time per the cement manufacturer instructions before returning the system to service.
