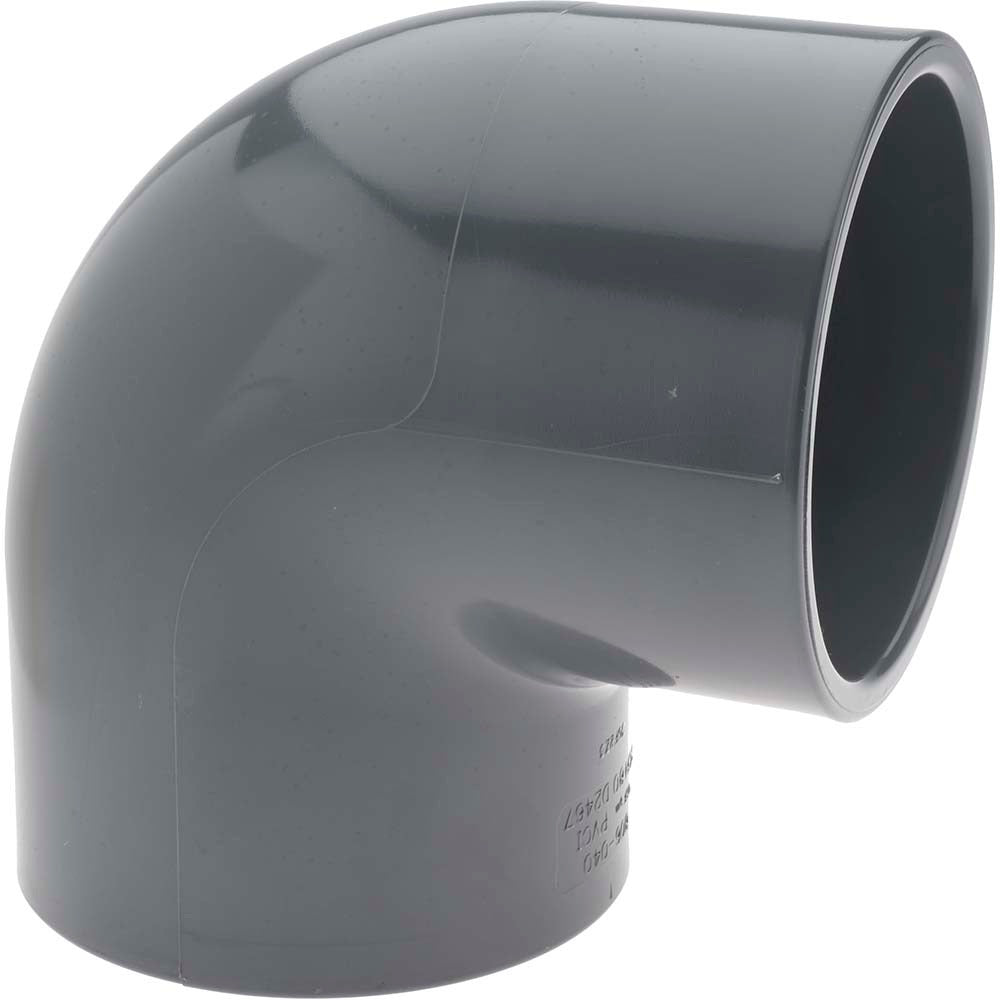

Pro-source 806-040 Pvc 90 Elbow 4 in Schedule 80 Slip X Slip

Product Description

The PRO-SOURCE 806-040 is a 4-inch Schedule 80 PVC 90-degree elbow with slip x slip end connections. It is used to make right-angle direction changes in pressure-rated plastic piping systems. Schedule 80 PVC has a thicker wall than Schedule 40, giving it higher pressure ratings and greater impact resistance in demanding service environments. Licensed plumbers and pipefitters install this fitting in industrial, commercial, and residential systems carrying water, chemicals, or other fluids compatible with PVC. The fitting weighs 4.11 pounds and connects via solvent-weld slip joints on both ends.

This elbow is suited for pressure piping applications where a 90-degree change in flow direction is required. Typical installations include process piping, irrigation headers, HVAC condensate and chilled-water drainage systems, and municipal water distribution laterals. The Schedule 80 wall thickness makes it appropriate for above-ground runs and locations where mechanical abuse or higher system pressures are a concern. Both slip ends accept standard 4-inch PVC solvent cement joints per ASTM D2466 and related standards.

Key Features

• Schedule 80 PVC construction for higher pressure ratings versus Schedule 40
• 4-inch fitting size accommodates standard 4-inch PVC pipe
• Slip x slip end connections for solvent-weld installation
• 90-degree sweep for right-angle direction changes in piping runs
• Chemical resistance inherent to PVC suitable for a range of fluid services

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 4-inch Schedule 80 PVC piping systems using solvent-weld slip connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with local plumbing codes and ASTM solvent-cement procedures. Depressurize and drain the piping system completely before cutting in the fitting. Use a PVC primer and cement rated for Schedule 80 fittings, and allow full cure time before returning the system to service. Do not use this fitting with threaded pipe or in systems exceeding the pressure-temperature rating of Schedule 80 PVC.
