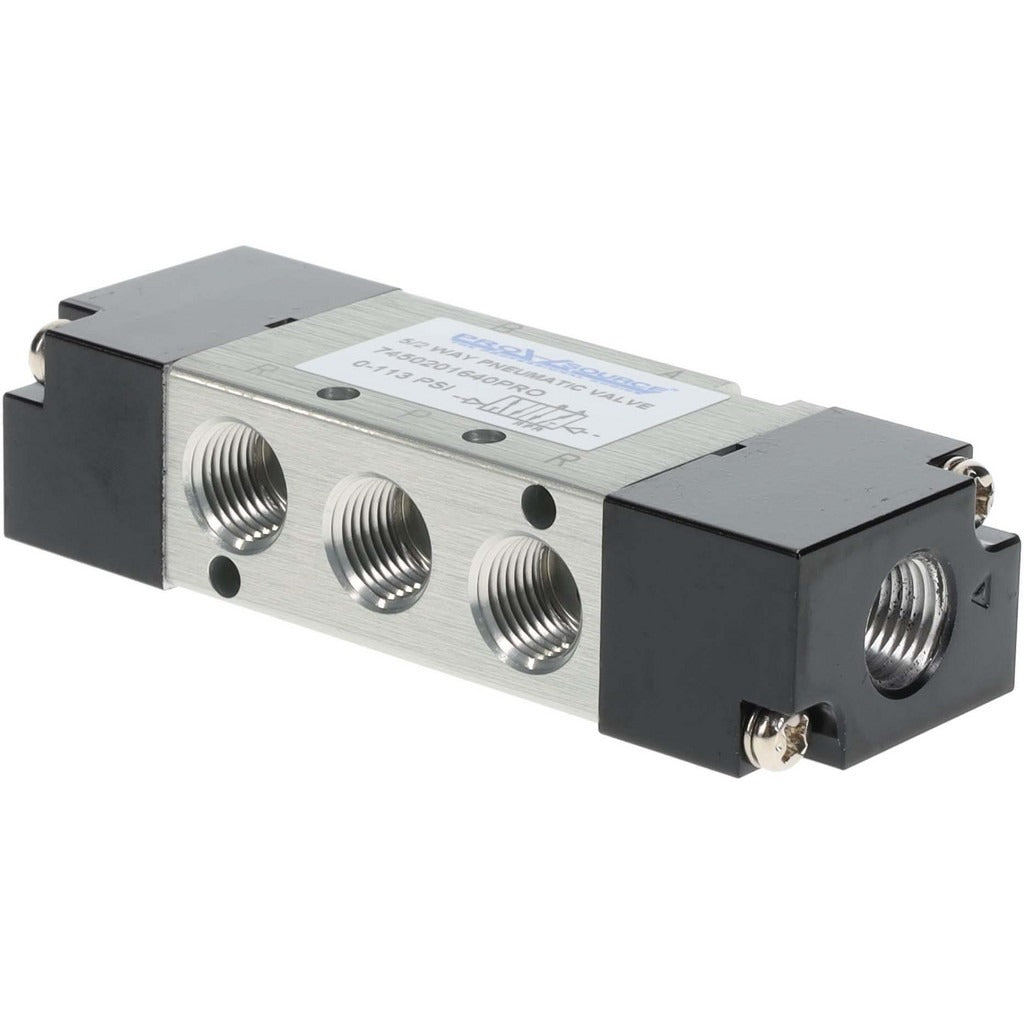

Pro-source 7450201640PRO 5-way 2-position Pneumatic Valve

Product Description

The PRO-SOURCE 7450201640PRO is a 5-way, 2-position directional control valve with a pneumatic double acting actuator, designed for use in compressed air systems and pneumatic automation circuits. It carries a Cv rating of 0.6 and a maximum working pressure of 113 psi, making it suited for light-duty pneumatic control applications. The valve body is constructed from aluminum alloy, keeping weight low at 0.17 pounds while maintaining durability in typical shop and industrial environments. Licensed pneumatic technicians and automation maintenance professionals are the primary installers for this type of valve.

This valve fits into pneumatic circuits where directional control of a double acting actuator or cylinder is required. The 5-way, 2-position configuration routes supply air to one actuator port while exhausting the other, then reverses on actuation. The 1/8-inch thread port size suits compact pneumatic subassemblies and manifold-style systems. It is appropriate for light industrial, automation, and machine-tool pneumatic control applications where flow rates up to 17.66 CFM and temperatures up to 176 degrees F are within the design envelope.

Key Features

• 5-way, 2-position directional control for double acting pneumatic actuators
• Cv rating of 0.6 supporting flow up to 17.66 CFM
• Maximum working pressure of 113 psi
• Aluminum alloy body for lightweight, corrosion-resistant construction
• 1/8-inch thread port size for compact pneumatic circuit integration
• Rated for operating temperatures up to 176 degrees F

Compatibility

Designed as an OEM-style replacement or new-installation directional control valve for pneumatic circuits using double acting actuators with 1/8-inch ported connections and operating within 113 psi and 176 degrees F limits.

Installation Notes

Installation of this valve should be performed by a qualified pneumatic technician or automation maintenance professional. Depressurize the pneumatic circuit completely before removing or installing any directional control valve. Verify thread size and port alignment before assembly to avoid cross-threading the aluminum alloy body. Check all downstream actuator connections and confirm the circuit schematic matches the 5-way, 2-position valve function before returning the system to service.
