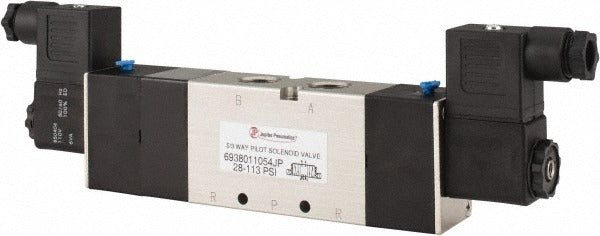

Pro-source 6938011054PRO 5-way 3-position Solenoid Valve

Product Description

The PRO-SOURCE 6938011054PRO is a stacking solenoid valve designed for pneumatic control systems that require precise directional control of compressed air. This is a 5-way, 3-position valve with an internal pilot actuator and solenoid return on both ends. It operates at 110 volts AC and carries a Cv rating of 1.730, supporting flow rates up to 52.98 cubic feet per minute. With a maximum working pressure of 113 psi and a maximum working temperature of 140 degrees F, it is suited for demanding industrial and commercial pneumatic circuits. Licensed automation technicians, industrial mechanics, and fluid power specialists are the typical installers.

This valve is intended for use with compressed air systems in industrial and commercial automation applications. The stacking design allows it to be combined with other manifold-mounted valves in modular pneumatic control assemblies, reducing plumbing complexity and saving panel space. Both the inlet and outlet ports are sized at 3/8 inch, making it compatible with standard pneumatic tubing and fittings used in automated machinery, actuator control circuits, and process control systems.

Key Features

• 5-way, 3-position valve configuration for bidirectional actuator control with a center exhaust or blocked-center function
• Internal pilot actuation eliminates the need for a separate external pilot supply line
• Solenoid return on both ends allows full electrical control of all three positions
• Cv rating of 1.730 with a flow rate up to 52.98 cubic feet per minute for responsive pneumatic actuation
• Stacking manifold design supports modular multi-valve assemblies
• 3/8 inch inlet and outlet ports fit standard pneumatic system fittings

Compatibility

Designed for use with compressed air systems. Intended as a modular stacking solenoid valve for pneumatic directional control circuits with 3/8 inch port connections operating at up to 113 psi and 110 volts AC.

Installation Notes

Installation should be performed by a qualified industrial automation technician or fluid power specialist familiar with pneumatic directional control valves. Depressurize and de-energize the pneumatic circuit completely before removing or installing any valve in the manifold stack. Verify that the supply voltage matches the 110 volts AC coil rating before energizing. Follow applicable codes and the equipment manufacturer guidelines for manifold assembly torque procedures and port sealing.
