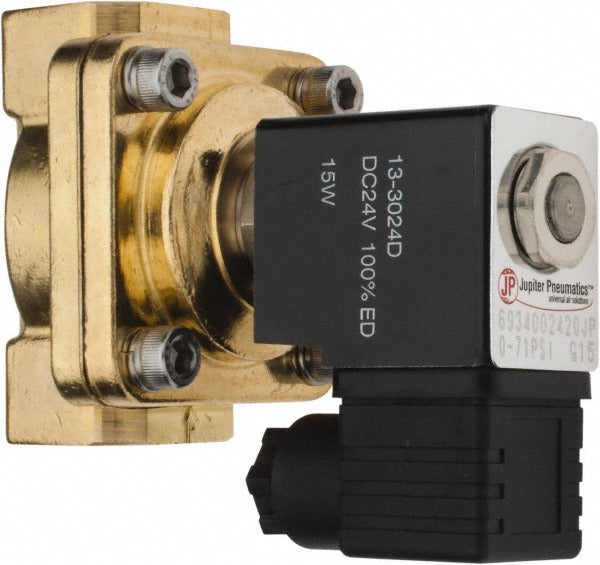

Pro-source 6934002420PRO Stacking Solenoid Valve 2-way 24VDC

Product Description

The PRO-SOURCE 6934002420PRO is a 2-way, 2-position stacking solenoid valve with an assisted lift actuator and spring return mechanism. It controls flow in pneumatic and fluid systems by opening or closing a single flow path on command from a 24-volt DC signal. With a Cv rating of 8.78 and a maximum working pressure of 71 psi, this valve handles moderate-flow applications in industrial and commercial environments. It stands 4.21 inches tall and accepts 3/4-inch inlet and outlet connections. Licensed trades and maintenance technicians install this type of valve in compressed air lines, light oil circuits, and water systems where reliable on/off control is required.

This valve is suited for use with compressed air, light oil, and water in 2-way shutoff or flow-control circuits. Its stacking design allows integration into modular valve assemblies, making it a practical choice for panel-mounted pneumatic control stations and process skids. At a maximum working temperature of 194 degrees F, it covers a wide range of industrial service conditions. The 3/4-inch port size and 218.13 CFM flow capacity make it appropriate for mid-range pneumatic circuits found in manufacturing, HVAC controls, and light process automation.

Key Features

• Assisted lift actuator for reliable opening against line pressure
• Spring return ensures the valve defaults to its normal position on power loss
• 24-volt DC coil voltage compatible with standard industrial control circuits
• 8.78 Cv rating supports flow rates up to 218.13 CFM
• Rated to 71 psi maximum working pressure and 194 degrees F maximum temperature
• 3/4-inch inlet and outlet ports for direct in-line installation

Compatibility

Designed for use with compressed air, light oil, and water systems. Compatible with modular stacking valve assemblies that accept 3/4-inch 2-way solenoid valves operating on 24-volt DC control circuits.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic or fluid control systems. De-energize the control circuit and depressurize the line completely before removing or installing the valve. Verify that the media type, working pressure, and temperature are within the rated limits before commissioning. Follow applicable local codes and manufacturer guidelines for fittings, thread sealants, and torque when making port connections.
