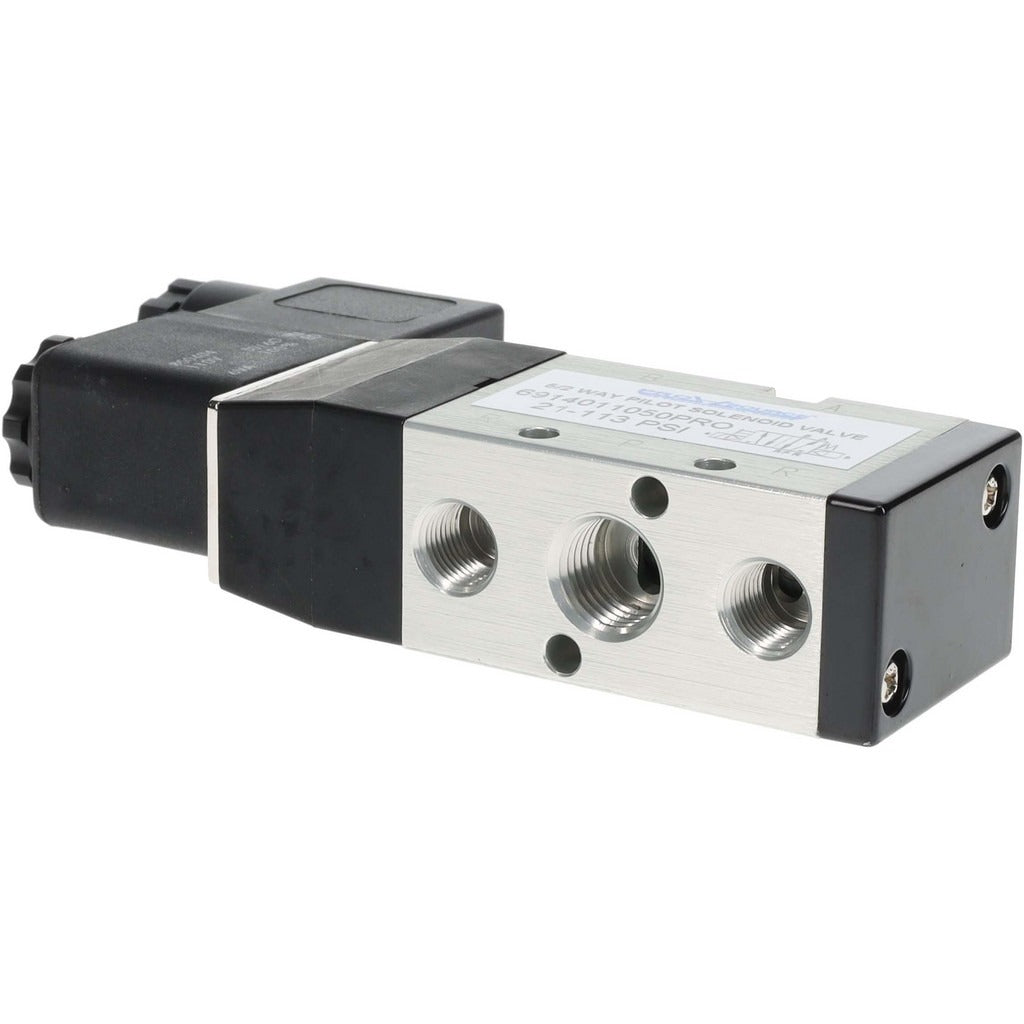

Pro-source 6914011050PRO 5-way Solenoid Valve Spring Return

Product Description

The PRO-SOURCE 6914011050PRO is a stacking solenoid valve designed for directional control of compressed air in pneumatic systems. It operates as a 5-way, 2-position single-solenoid valve with internal pilot actuation and spring return. The valve carries a Cv rating of 0.980 and handles a maximum working pressure of 113 psi, making it suitable for light to medium industrial pneumatic circuits. With a 110-volt AC coil and a flow capacity of 50.79 cubic feet per minute, it fits inline manifold stacking assemblies common in machine automation and process control environments. Licensed pneumatic system technicians and industrial maintenance professionals are the primary installers.

This valve is intended for compressed air service in industrial and manufacturing applications where directional control of actuators, cylinders, or other pneumatic devices is required. The stacking design allows multiple valves to be ganged together on a common manifold, reducing plumbing complexity and saving panel space. It is rated for fluid temperatures up to 140 degrees F, covering most standard plant air environments. The 1/4-inch inlet and 1/8-inch outlet port sizing suit compact pneumatic circuits commonly found in automated assembly, packaging, and process equipment.

Key Features

• 5-way, 2-position single-solenoid configuration with spring return for fail-safe operation
• Internal pilot actuation eliminates the need for an external pilot supply line
• Cv rating of 0.980 with 50.79 CFM flow capacity for consistent actuator response
• Rated to 113 psi maximum working pressure for standard plant air systems
• 110-volt AC coil voltage matches common industrial control panel standards
• Stacking design compatible with manifold assembly to reduce field plumbing

Compatibility

Designed for use with compressed air systems requiring a stacking-style 5-way directional control valve with a 1/4-inch inlet port and 1/8-inch outlet port in a 2-position spring-return configuration.

Installation Notes

Installation should be performed by a qualified pneumatic or industrial maintenance technician familiar with directional control valves and manifold assemblies. Depressurize the pneumatic circuit and de-energize all associated electrical controls before servicing or mounting the valve. Verify that supply voltage matches the 110-volt AC coil rating before energizing. Ensure all port connections are properly sealed and torqued according to fitting manufacturer specifications to prevent air leakage.
