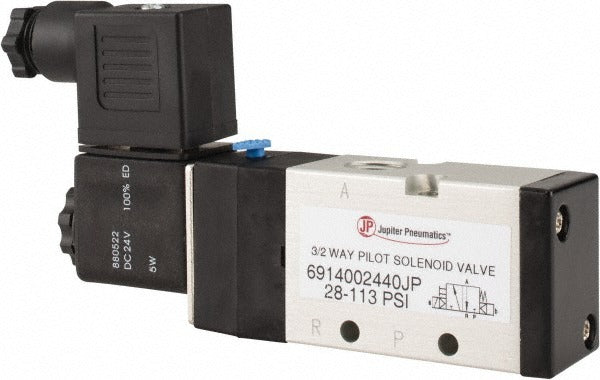

Pro-source 6914002440PRO 3-way Stacking Solenoid Valve 24VDC

Product Description

The PRO-SOURCE 6914002440PRO is a stacking solenoid valve designed for pneumatic systems using compressed air as the working medium. It operates as a 3-way, 2-position directional control valve with internal pilot actuation and spring return. The valve carries a Cv rating of 0.980 and is rated for up to 113 psi maximum working pressure. It handles a flow rate of 50.91 cubic feet per minute and operates on 24VDC. Licensed HVAC technicians, pneumatic system integrators, and industrial maintenance professionals install this valve in compressed air circuits where precise directional control is required.

This valve is suited for residential and light commercial pneumatic control applications as well as industrial automation systems that use compressed air. Its stacking design allows it to be grouped with other valves in a manifold-style assembly, making it practical in multi-actuator control panels and process equipment. The 1/4-inch inlet and outlet ports accommodate standard pneumatic fittings common in compressed air distribution lines. Maximum working temperature is 122 degrees F, making it appropriate for typical indoor service environments.

Key Features

• 3-way, 2-position directional control with spring return for fail-safe operation
• Internal pilot actuation on 24VDC supply
• Cv rating of 0.980 with 50.91 CFM flow capacity
• Rated for up to 113 psi maximum working pressure
• 1/4-inch inlet and outlet ports for standard compressed air fittings
• Stacking valve design compatible with manifold-style pneumatic assemblies

Compatibility

Designed for use with compressed air systems. Intended as a stacking-style directional control valve for pneumatic circuits with 1/4-inch porting and 24VDC control voltage.

Installation Notes

Installation should be performed by a qualified pneumatic or industrial maintenance technician familiar with compressed air system safety. Depressurize the air supply and de-energize all electrical circuits before removing or installing the valve. Verify the supply voltage matches the 24VDC coil rating before energizing. Follow applicable local codes and manufacturer torque recommendations for port fittings to prevent air leaks.
