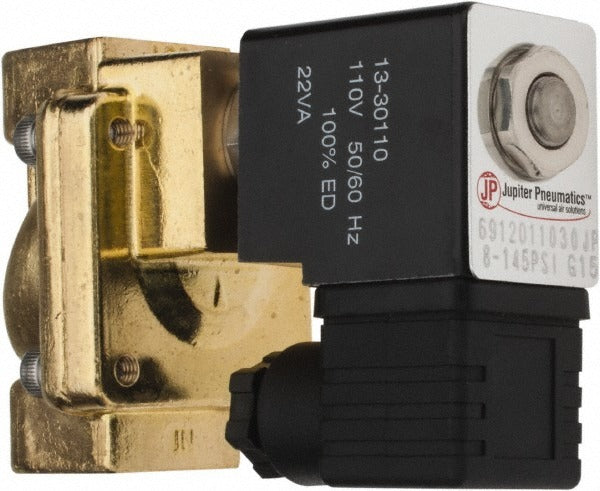

Pro-source 6912011030PRO Stacking Solenoid Valve 2-way 110V

Product Description

The PRO-SOURCE 6912011030PRO is a 2-way, 2-position stacking solenoid valve with pilot actuation and air pilot return, designed for pneumatic and fluid control applications in industrial and commercial systems. It operates at 110 volts AC and carries a Cv rating of 4.5, supporting a flow rate of 96.16 cubic feet per minute. With a maximum working pressure of 145 psi and a maximum working temperature of 194 degrees F, this valve is built for demanding duty cycles. Licensed plumbers, pipefitters, and industrial maintenance technicians are the typical installers for this type of directional control valve.

This valve is suited for use with compressed air, light oil, and water in modular valve manifold assemblies or standalone inline installations. Its stacking design allows it to be combined with other valves in a bank configuration, making it well-suited for automated pneumatic control panels, fluid power systems, and process equipment requiring directional flow switching. The 1/2 inch inlet and outlet ports accommodate standard pneumatic and low-pressure fluid piping connections common in production and mechanical service environments.

Key Features

• 2-way, 2-position configuration for straightforward open/close flow control
• Pilot actuated with air pilot return for reliable directional switching
• Cv rating of 4.5 with a flow capacity of 96.16 cubic feet per minute
• Rated to 145 psi maximum working pressure and 194 degrees F maximum temperature
• Compatible with compressed air, light oil, and water media
• Stacking design supports modular manifold assembly configurations

Compatibility

Designed for use with compressed air, light oil, and water systems requiring a 2-way, 2-position directional control valve with 1/2 inch porting. Suitable for modular stacking manifold assemblies in industrial pneumatic and fluid power applications.

Installation Notes

Installation should be performed by a qualified pipefitter, industrial mechanic, or licensed plumber familiar with pneumatic and fluid control systems. Depressurize and de-energize the system fully before removing or installing any valve component. Verify that supply voltage matches the 110 volts AC coil rating before energizing. Follow applicable codes and the equipment manufacturer's documentation for manifold assembly torque procedures and port connection requirements.
