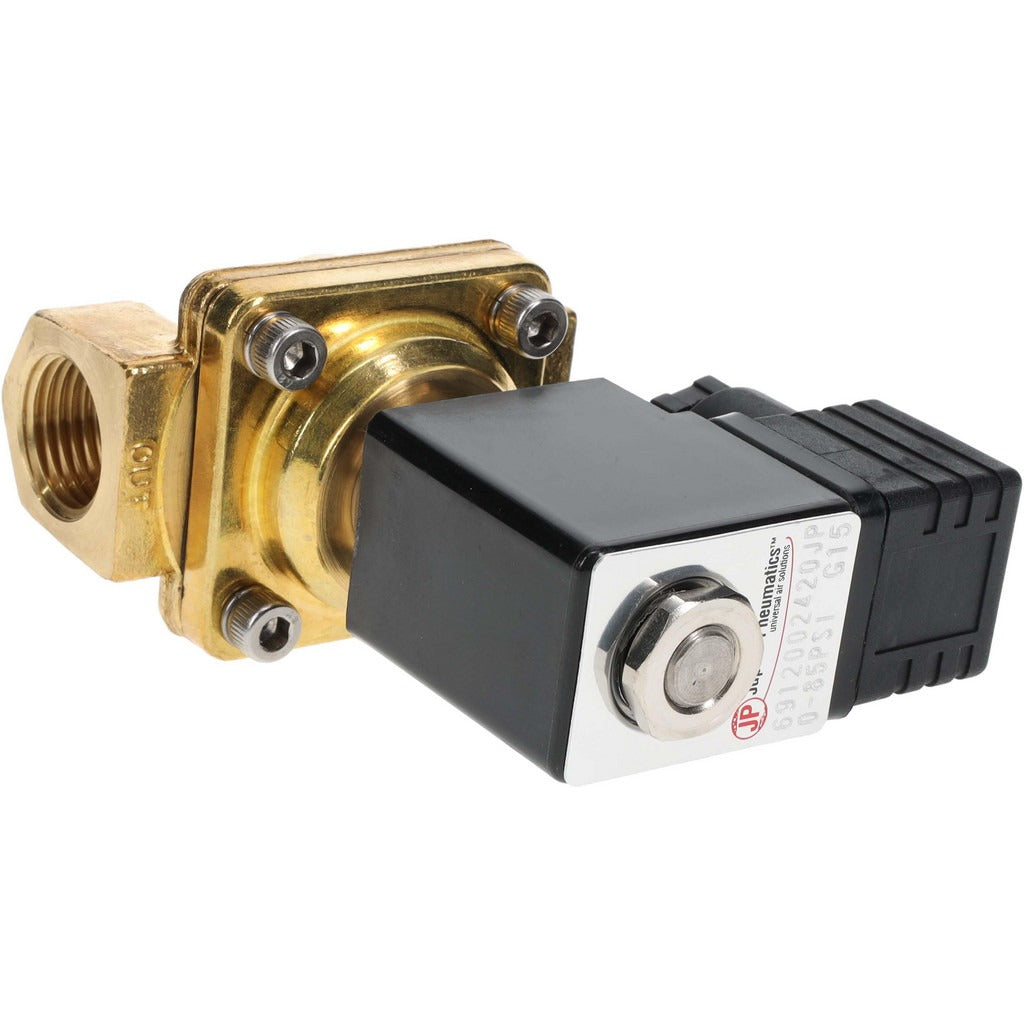

Pro-source 6912002420PRO Stacking Solenoid Valve 1/2 in 24V Dc

Product Description

The PRO-SOURCE 6912002420PRO is a 2-way, 2-position stacking solenoid valve designed for assisted-lift actuation with spring return. It controls directional flow in pneumatic and fluid systems, opening or closing a single flow path under energized or de-energized conditions. Rated at 4.12 Cv and operating on 24 volts DC, this valve handles compressed air, light oil, and water at pressures up to 85 psi and temperatures up to 194 degrees F. Plumbers, pipefitters, and industrial maintenance technicians install this valve in manifold-mounted or inline configurations where compact, stackable valve bodies are required.

This valve is suited for residential and light commercial fluid control applications including compressed air distribution, water control circuits, and light oil systems. Its stackable body design makes it compatible with modular manifold assemblies where space is limited and multiple valve functions are consolidated. The 1/2 inch inlet and 1/2 outlet sizing fits standard pipe and manifold porting common in industrial and mechanical systems. With a flow rating of 87.90 cubic feet per minute, it delivers adequate capacity for typical compressed air control circuits.

Key Features

• Assisted-lift actuator design enables reliable opening against differential pressure
• Spring return operation ensures a defined safe-state position on power loss
• 4.12 Cv flow rating supports up to 87.90 CFM airflow capacity
• Compatible with compressed air, light oil, and water media
• 1/2 inch inlet and 1/2 inch outlet for standard port sizing
• Stackable body design supports modular manifold assemblies

Compatibility

Designed as an OEM-style replacement or new-installation solenoid valve for modular manifold systems handling compressed air, light oil, or water at up to 85 psi and 194 degrees F.

Installation Notes

Installation should be performed by a qualified pipefitter, plumber, or industrial maintenance technician familiar with directional control valves. Depressurize and de-energize the system completely before removing or installing the valve. Ensure the supply voltage matches the 24V DC coil rating before energizing. Consult applicable plumbing and mechanical codes for manifold assembly and fluid system requirements.
