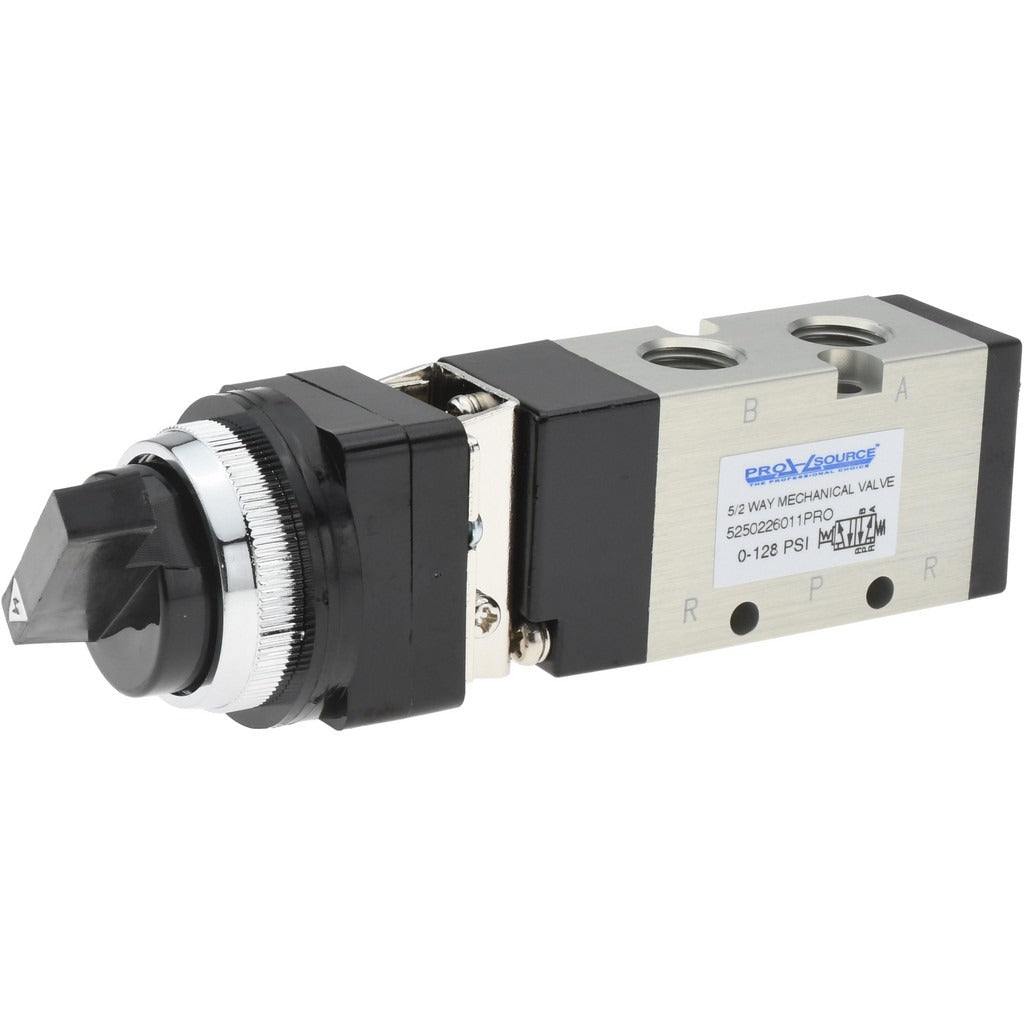

Pro-source 5250226011PRO 5-way Manual Air Valve 0.976 Cv

Product Description

The PRO-SOURCE 5250226011PRO is a 5-way, 2-position manually operated pneumatic air valve with a long selector toggle actuator. It is designed for directional control of compressed air in pneumatic circuits and is typically found in industrial and mechanical systems requiring manual switching of airflow paths. The valve carries a Cv rating of 0.976 and uses NPT threaded connections. With 5 ports and 2 positions, it suits applications where a technician needs direct, manual control over actuator direction without relying on electrical signals or pilot pressure.

This valve is intended for use in pneumatic control systems where manual mechanical actuation is required. Typical install scenarios include machine tool circuits, pneumatic cylinder control, and light industrial automation panels. The long selector actuator style provides a positive, tactile switching action suited to frequent manual operation by maintenance technicians or machine operators. It is appropriate for both new installations and replacement applications in existing pneumatic control assemblies.

Key Features

• 5-way, 2-position valve design for directional pneumatic control
• Long selector toggle actuator for positive manual switching
• Cv rating of 0.976 for consistent, predictable airflow performance
• NPT threaded ports for standard pneumatic plumbing connections
• 5 ports accommodate full directional control circuit requirements
• Compact footprint at 1.38 inches wide and 1.02 inches in length

Compatibility

Designed as an OEM-style replacement or new-install manual mechanical air valve for pneumatic directional control circuits using NPT-threaded components.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician or industrial maintenance professional. Depressurize and lock out the pneumatic system before removing or installing any valve. Ensure all NPT threaded connections are sealed with appropriate thread sealant compatible with compressed air service. Verify that the valve orientation and port assignments match the circuit diagram before returning the system to service.
