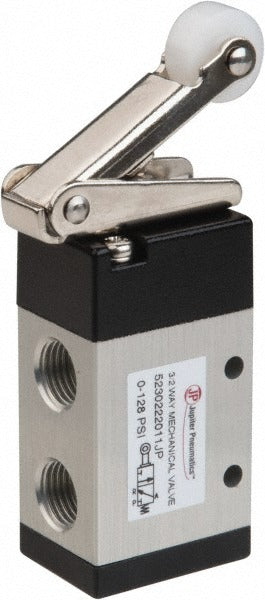

Pro-source 5230222011PRO 3-way Roller Lever Air Valve

Product Description

The PRO-SOURCE 5230222011PRO is a 3-way, manually operated pneumatic air valve with roller lever and spring return actuation. It controls the flow of compressed air in pneumatic circuits by shifting between two positions when the roller lever is engaged, then returning to its default position via spring force when released. With a Cv rating of 0.976, this valve is sized for light-duty directional control tasks. It features NPT threaded ports for standard pneumatic or mechanical system integration and is handled by industrial maintenance technicians, pneumatic system assemblers, and automation specialists.

This valve is suited for use in compressed air systems requiring manual, mechanical actuation without electrical control. Typical installations include machine controls, actuator pilot circuits, and equipment requiring a simple two-position directional control in light industrial or maintenance environments. Its compact footprint makes it appropriate for panel mounting or inline installation where space is limited.

Key Features

• 3-way, 2-position roller lever spring return design for reliable manual directional control
• Cv rating of 0.976 for light-duty compressed air flow applications
• NPT threaded ports for compatibility with standard pneumatic fittings
• Spring return actuation ensures automatic return to default position when lever is released
• Compact dimensions suitable for space-constrained installations

Compatibility

Designed as an OEM-style replacement or new-install option for manual mechanical pneumatic directional control valve applications with NPT threaded connections in 3-way, 2-position configurations.

Installation Notes

Installation of this valve should be performed by a qualified pneumatic systems technician or industrial maintenance professional. Depressurize the pneumatic system fully before installing or replacing this valve. Ensure NPT threads are properly sealed with compatible thread sealant tape or compound to prevent air leaks. Verify that system supply pressure and flow requirements are within the rated capacity of the valve before returning the system to service.
