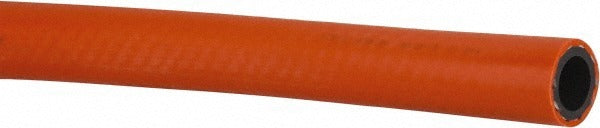

Pro-source 5150003713JP Air Hose 3/8 in Id 300 Psi Pvc Ctl

Product Description

The PRO-SOURCE 5150003713JP is a multipurpose PVC air hose sold by the foot from a 500-foot coil, with a minimum cut length of 25 feet. It carries a 3/8-inch inner diameter and a 19/32-inch outer diameter, making it a standard size for compressed-air distribution in shops, job sites, and mechanical rooms. The hose is rated to 300 working psi and handles temperatures from 23 degrees F to 150 degrees F, covering typical seasonal outdoor and indoor service conditions. The orange PVC construction keeps it visible on busy floors and resists common shop fluids. HVAC technicians, plumbers, and general contractors install this hose for pneumatic tool drops, blow-off lines, and temporary air supply runs.

This hose is suited for residential and light commercial applications wherever a flexible, cut-to-length compressed-air supply line is needed. It ships with no end connections, so installers can terminate with the fittings required by the specific application. The cut-to-length format reduces waste on jobs that need a precise run rather than a fixed-length whip. Typical installations include shop air distribution, pneumatic control lines, and portable compressor feed lines on mechanical and construction sites.

Key Features

• 3/8-inch ID and 19/32-inch OD for standard compressed-air tool and distribution fitment
• 300 psi working pressure rating for general shop and job-site pneumatic service
• Operating temperature range of 23 degrees F to 150 degrees F
• PVC construction resists kinking and common shop fluids
• Orange color improves visibility in high-traffic work areas
• Cut-to-length format from a 500-foot coil with a 25-foot minimum cut
• No end connections included, allowing field termination with any standard fitting

Compatibility

Designed as a general-purpose cut-to-length air hose for use with standard 3/8-inch compressed-air fittings and pneumatic tool systems in residential and light commercial service environments.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed-air system requirements. Depressurize and lock out the air supply before connecting or disconnecting hose runs. Verify that all fittings and clamps are rated at or above the 300 psi working pressure of this hose. Avoid routing the hose over sharp edges or heat sources that could damage the PVC jacket and compromise the pressure rating.
