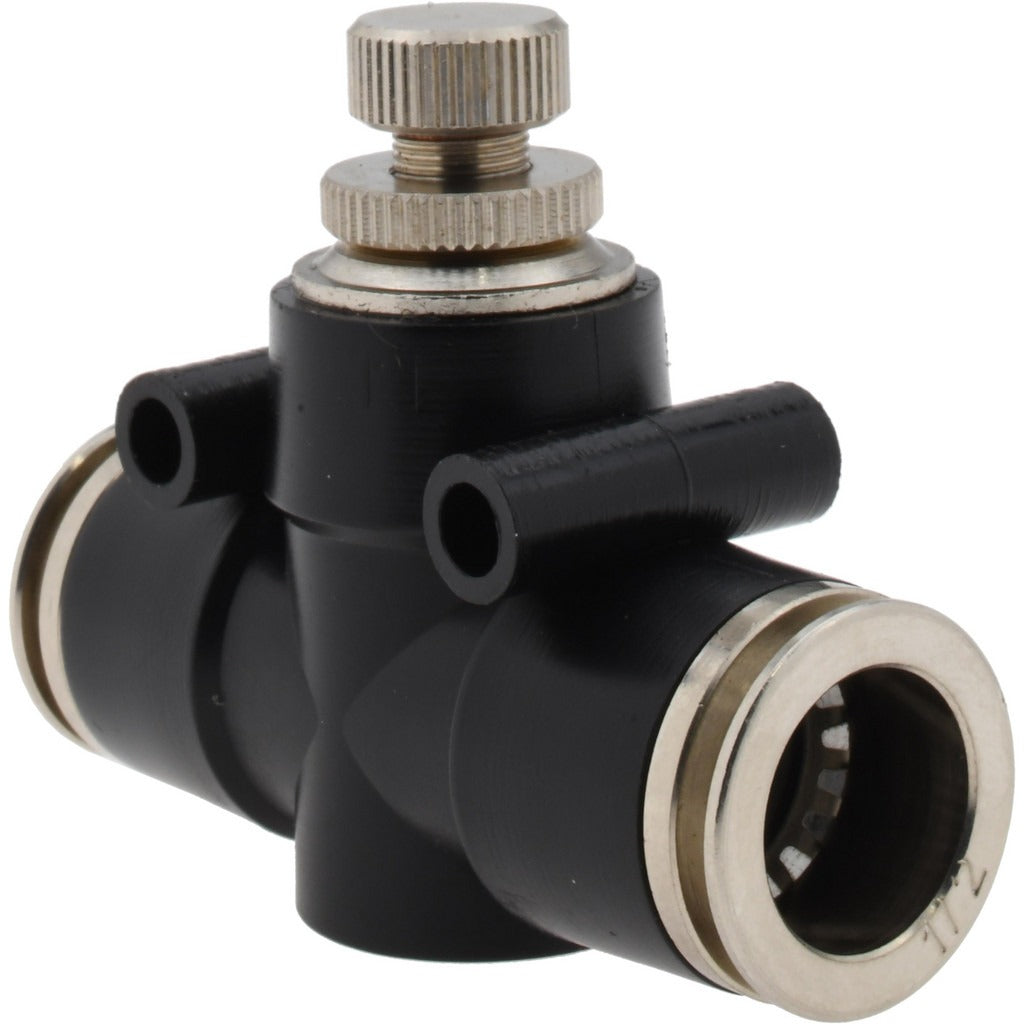

Pro-source 4826802114PRO Air Flow Control Valve 1/2 in

Product Description

The PRO-SOURCE 4826802114PRO is an in-line air flow control valve designed to regulate airflow in pneumatic plumbing and fluid-control systems. It accepts a 1/2-inch tube outside diameter and handles pressures from 0 to 113.76 psi, making it well-suited for compressed air lines and similar low-to-medium pressure applications. The valve body combines techno polymer, brass, and steel construction for durability under cycle loading. Licensed plumbers, pipefitters, and pneumatic system technicians are the primary installers of this type of component.

This valve is used in inline pneumatic and fluid distribution runs where controlled, adjustable flow is required. Typical installations include industrial air distribution panels, machine tool feed lines, and facility compressed air networks. Its compact footprint at roughly 2.95 inches long and 0.83 inches wide makes it practical in tight panel or cabinet installations where space is limited. It is sold as a single-unit package.

Key Features

• In-line flow control configuration for straightforward inline installation
• 1/2-inch tube OD connection fits common pneumatic tubing stock
• Rated 0 to 113.76 psi operating pressure range
• Multi-material body: techno polymer, brass, and steel for strength and corrosion resistance
• Compact dimensions: 2.95 inches long, 1.92 inches tall, 0.83 inches wide
• Lightweight at approximately 0.141 pounds for easy handling during installation

Compatibility

Designed as an OEM-style replacement or direct-install flow control valve for pneumatic systems using 1/2-inch OD tube connections and operating within a 0 to 113.76 psi pressure range.

Installation Notes

Installation should be performed by a qualified pipefitter, plumber, or pneumatic systems technician. Depressurize and lock out the air supply line fully before removing any existing valve or fitting. Verify that all tubing and fittings are rated to meet or exceed the system operating pressure before placing the valve in service. Follow applicable codes and the system manufacturer's guidelines for inline valve placement and flow direction orientation.
