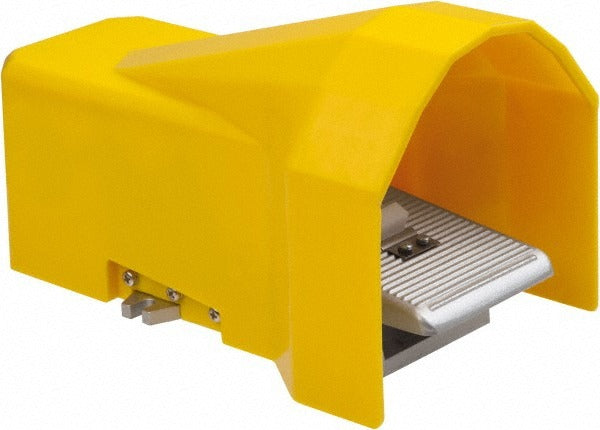

Pro-source 4750251011PRO Foot Pedal Manual Valve 5-way

Product Description

The PRO-SOURCE 4750251011PRO is a manually operated foot pedal valve designed for hands-free pneumatic or fluid control in industrial and mechanical service applications. It features a 5-way, 2-position design with a 0.65 Cv flow rating and NPT threaded ports. The guard-equipped foot pedal actuator provides operator protection during repeated cycling. With five ports and two positions, this valve is suited for directing flow in actuator circuits where both hands must remain free. Licensed mechanical or fluid power technicians typically specify and install this type of valve in production, assembly, or maintenance environments.

This valve fits applications where foot-operated control of a pneumatic actuator or directional circuit is required. The 5-way configuration supports double-acting cylinder control or similar directional switching tasks. The NPT thread type makes it compatible with standard pipe fittings common in North American pneumatic and hydraulic plumbing. It is appropriate for light industrial, maintenance shop, and mechanical service line installations where a mechanical valve with no electrical requirement is preferred.

Key Features

• Foot pedal actuation with protective guard for safe hands-free operation
• 5-way, 2-position valve design supports double-acting actuator circuits
• 0.65 Cv flow rating for controlled flow capacity
• NPT threaded ports for compatibility with standard North American pipe fittings
• Manual mechanical operation with no electrical components required
• Compact profile at 9.45 inches long, 5.12 inches wide, and 5.43 inches tall

Compatibility

Designed as an OEM-style replacement or direct-install manual mechanical valve for pneumatic directional control circuits using NPT-threaded plumbing. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation should be performed by a qualified fluid power technician or licensed mechanical contractor familiar with pneumatic circuit design. Depressurize the system fully and isolate the air supply before removing or installing any valve. Verify NPT thread engagement and use appropriate thread sealant rated for the system medium. Consult applicable mechanical and pneumatic safety codes for mounting, guarding, and circuit protection requirements.
