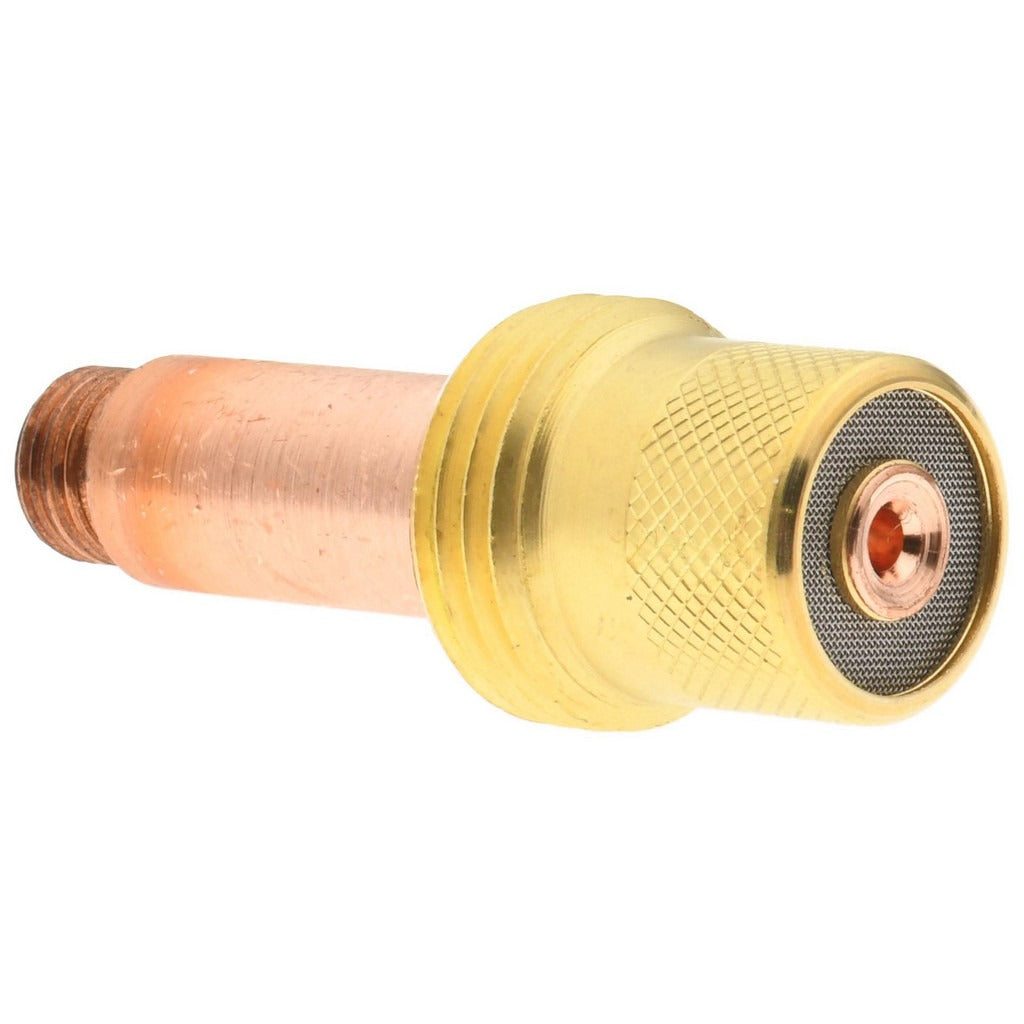

Pro-source 45V26 Tig Torch Collet Body

Product Description

The PRO-SOURCE 45V26 is a TIG torch collet body designed to secure the collet and tungsten electrode within a TIG welding torch assembly. The collet body threads into the torch head and provides the conductive connection between the torch body and the collet, allowing for precise electrode alignment and consistent arc starts. Measuring 2.12 inches in height and 0.62 inches in width and length, this compact component weighs 0.082 pounds. It is a direct replacement part for TIG torch maintenance and is typically replaced during routine servicing when electrode grip or conductivity becomes compromised.

The 45V26 collet body is suited for TIG welding applications in fabrication shops, maintenance facilities, and field welding environments. It is installed by welding technicians and trade professionals performing torch maintenance or rebuilds. The small form factor makes it appropriate for torch setups where space and electrode positioning accuracy are critical to weld quality.

Key Features

• Secures collet and tungsten electrode for consistent arc alignment
• Provides electrical conductivity between torch body and collet
• Compact size: 2.12 inches height by 0.62 inches width and length
• Lightweight at 0.082 pounds for easy handling during torch service
• Sold individually as a replacement component

Compatibility

Designed as an OEM-style replacement collet body for compatible TIG welding torches requiring this collet body style and size.

Installation Notes

Installation is performed by a qualified welding technician or torch service professional. Disconnect the torch from the power source and allow it to cool completely before disassembling the torch head. Remove the existing collet body by unthreading it from the torch head, insert the replacement, and thread it in by hand before snugging — do not overtighten, as over-torquing can damage torch threads. Inspect the collet and back cap for wear before reassembly.
