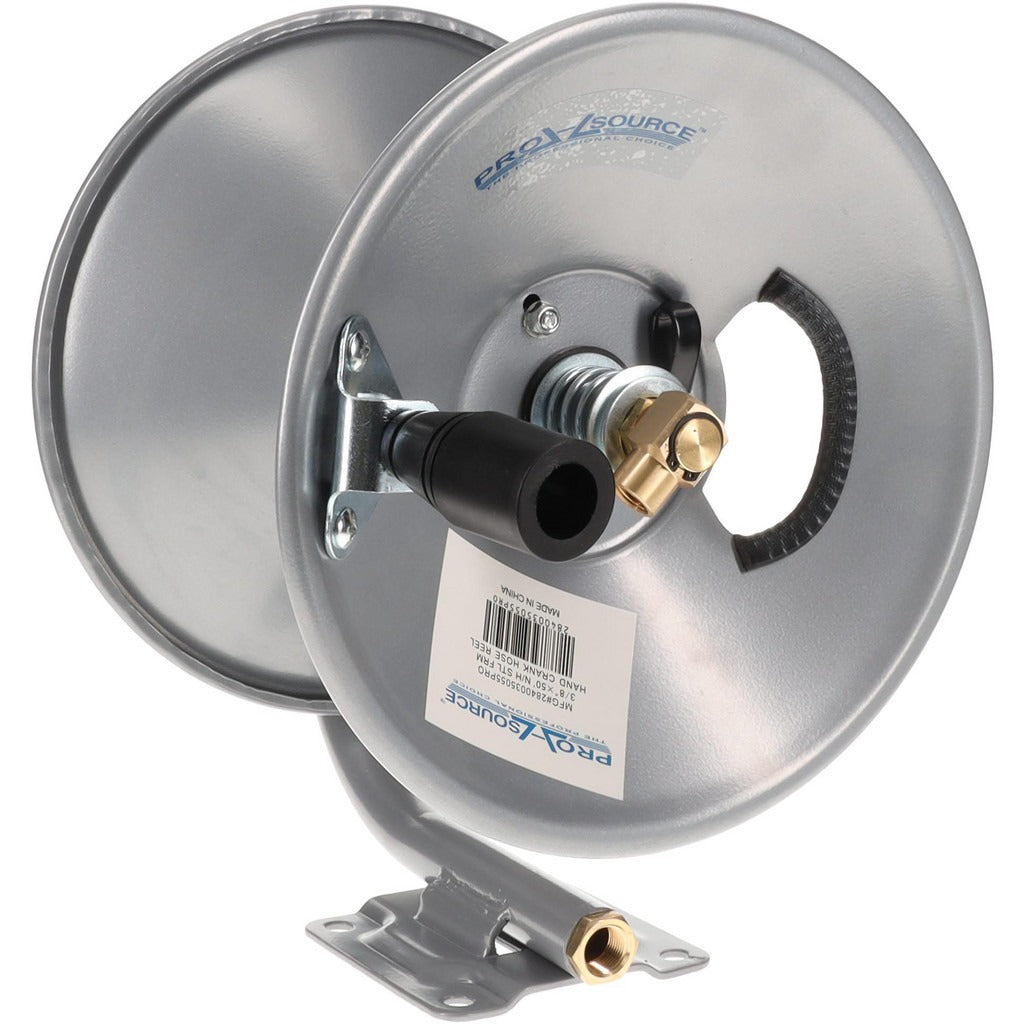

Pro-source 2840035055PRO Manual Hose Reel 50 Ft 3/8 in

Product Description

The PRO-SOURCE 2840035055PRO is a manual, hand-crank hose reel designed to store and dispense 50 feet of 3/8-inch ID hose for air or water service. Built from electropolished steel, the open-frame reel accepts a 3/8-inch NPT inlet and a 1/4-inch NPT outlet, and it is rated for a maximum working pressure of 300 psi. The unit ships without hose, making it straightforward to pair with an existing or separately sourced air or water hose. Plumbers, HVAC technicians, and general maintenance professionals use this reel in shops, mechanical rooms, and service bays where a compact, wall- or bench-mountable dispensing solution is needed.

This hose reel is suited for both residential and light commercial applications involving compressed air or water supply lines. Typical installation scenarios include service garages, utility rooms, and equipment bays where 50 feet of hose reach is sufficient. The open-frame design allows visual inspection of the wound hose and simplifies cleaning. Because the reel ships without hose, technicians can select hose material and rating appropriate for the specific fluid and pressure requirements of the installation.

Key Features

• Hand-crank manual retraction for straightforward, controlled hose retrieval
• Rated to 300 psi maximum working pressure for air and water service
• Electropolished steel construction resists corrosion and simplifies cleaning
• 3/8-inch NPT inlet and 1/4-inch NPT outlet for standard fitting compatibility
• Open-reel frame allows visual hose inspection without unwinding
• Operating temperature range of -22 degrees F to 158 degrees F suits a wide range of service environments

Compatibility

Designed for use with 3/8-inch ID hose up to 50 feet in length for air or water service applications. Hose is not included and must be sourced separately.

Installation Notes

Installation is typically performed by a plumber, HVAC technician, or maintenance mechanic. Before mounting or connecting the reel, shut off the air supply or water source and relieve all pressure from the line. Secure the reel to a structurally adequate surface using hardware rated for the combined weight of the reel and the loaded hose. Thread connections should be sealed with thread tape or compound rated for the intended service fluid before tightening to avoid leaks under working pressure.
