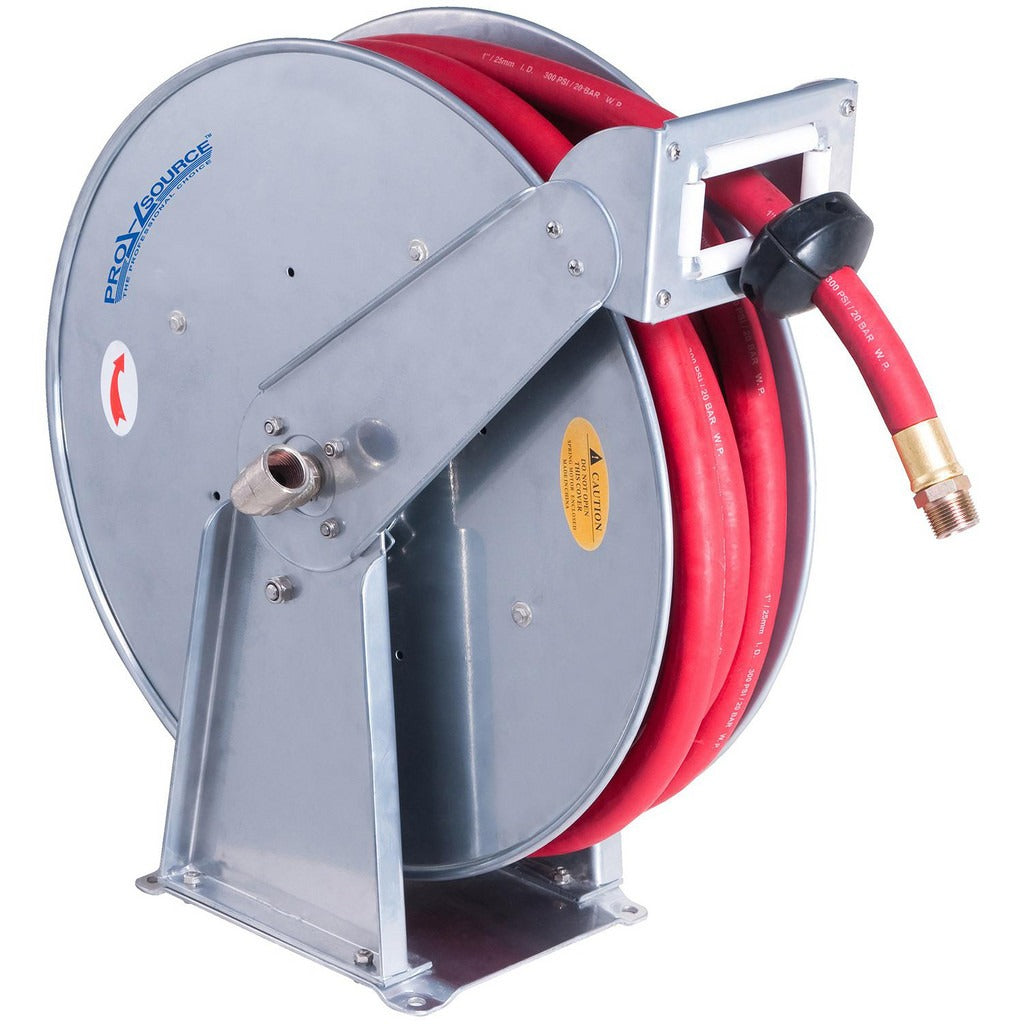

Pro-source 2830075010PRO Hose Reel 1 in Id 50 Ft Spring Retractable

Product Description

The PRO-SOURCE 2830075010PRO is a spring-retractable hose reel supplied with a 50-foot rubber hose rated to 300 psi. The open-style steel reel is built for industrial and commercial service environments where air or water lines need to be managed safely and efficiently. The hose measures 1 inch inside diameter, and the reel connects via 3/4-inch NPT inlet and 3/4-inch NPT outlet fittings. The spring-retract mechanism returns the hose automatically after use, reducing trip hazards and wear from dragging. At 99.1 pounds, this is a heavy-duty unit intended for permanent or semi-permanent mounting by maintenance technicians or trade professionals.

This reel is suited for shop air supply lines, water distribution drops, and general industrial fluid service in both commercial and light industrial settings. The rubber hose handles a temperature range from -22 degrees F to 158 degrees F, making it usable in cold storage environments as well as heated facilities. Typical applications include compressed air delivery at service bays, wash-down water stations, and plant floor fluid distribution points where a managed, retractable hose drop is preferred over a static coil.

Key Features

• Spring-retractable drive returns hose automatically after each use
• 300 psi maximum working pressure rated for air and water service
• 1-inch ID rubber hose delivers high flow capacity at 50 feet of length
• 3/4-inch NPT inlet and outlet for standard pipe thread connections
• Open-style steel reel construction in gray for durability and visibility
• Operating temperature range of -22 degrees F to 158 degrees F

Compatibility

Designed as an OEM-style replacement or new-installation hose reel for air and water service lines requiring a 1-inch ID hose with 3/4-inch NPT connections at up to 300 psi.

Installation Notes

Installation is typically performed by a licensed mechanical contractor or qualified maintenance technician. Mount the reel to a structurally sound overhead beam, wall bracket, or ceiling joist capable of supporting the unit weight plus hose load. Shut off and depressurize the supply line before making any pipe thread connections, and apply appropriate thread sealant to all NPT fittings. Follow applicable OSHA and local mechanical codes for hose reel mounting height and clearance requirements.
