Pro-source 2830027510PRO Retractable Hose Reel 75 Ft

Product Description

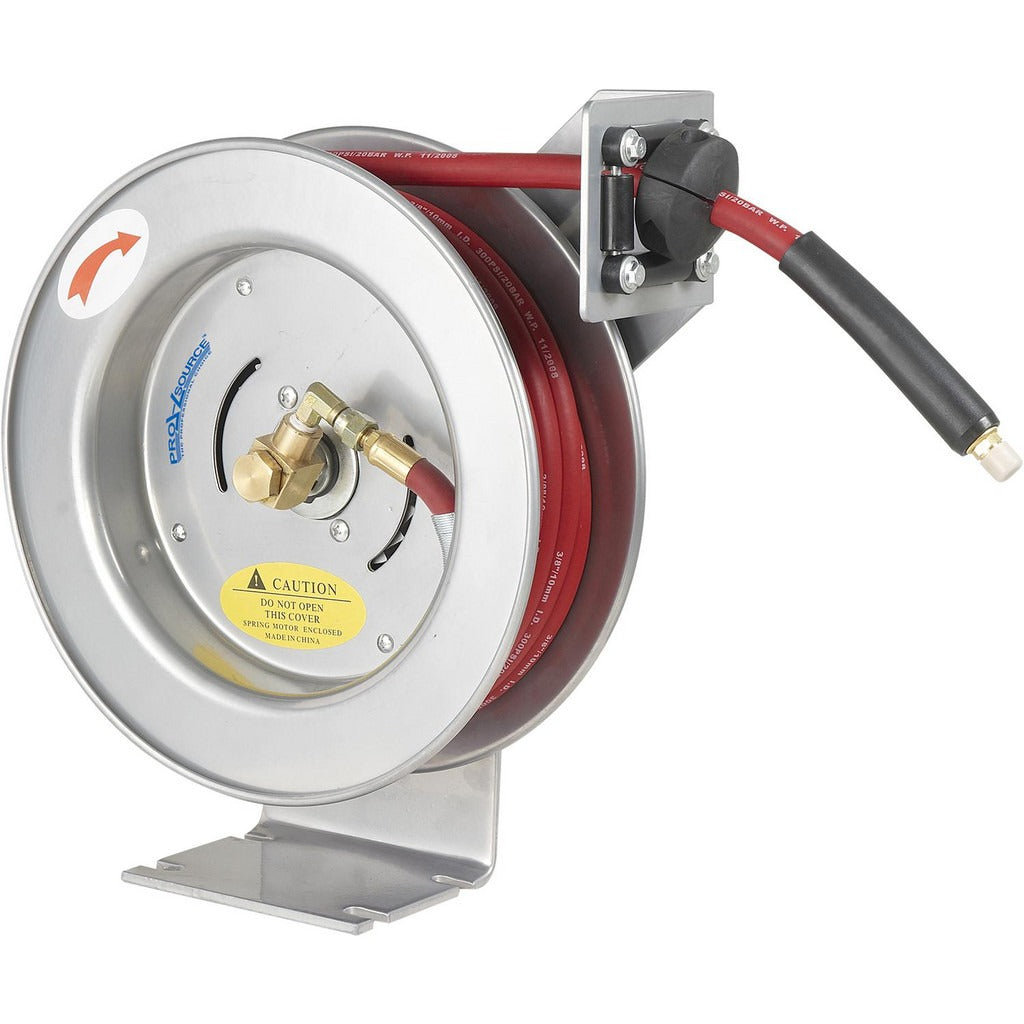

The PRO-SOURCE 2830027510PRO is a spring-retractable hose reel supplied complete with a 75-foot rubber hose. The open-steel reel houses a 1/4-inch ID red rubber hose rated to 300 psi maximum working pressure. A spring-driven retraction mechanism returns the hose to the reel automatically after each use, reducing trip hazards and extending hose life in high-cycle shop environments. The 3/8-inch NPT inlet and 1/4-inch NPT outlet allow direct connection to standard compressed-air or water supply lines. At 41.85 pounds, the unit is sized for wall or ceiling mounting in service bays, mechanical rooms, and maintenance facilities. Licensed HVAC technicians, plumbers, and general maintenance crews are the typical installers.

This hose reel is rated for both air and water service, making it a versatile addition to any trade shop, service garage, or plant utility station. The rubber hose handles a temperature range of -22 degrees F to 158 degrees F, supporting year-round use in unheated bays or outdoor-adjacent installations. The open-reel steel construction allows visual inspection of the hose for wear or kinking without dismounting the unit. Overall dimensions of 19 inches in length, 20-1/4 inches in height, and 7-3/4 inches in width keep the footprint compact for tight wall-mount locations.

Key Features

• Spring-retractable drive returns hose automatically after each use
• 300 psi maximum working pressure rated for air and water service
• 75-foot red rubber hose included - no separate hose purchase required
• 3/8-inch NPT inlet and 1/4-inch NPT outlet for standard supply connections
• Open steel reel construction allows visual hose inspection
• Wide operating temperature range: -22 degrees F to 158 degrees F

Compatibility

Designed for use with compressed-air and water supply systems using standard 3/8-inch NPT inlet connections. Suitable for wall or ceiling mounting in residential, commercial, and light industrial service environments.

Installation Notes

Installation should be performed by a qualified technician. Shut off and depressurize the air or water supply line completely before making any inlet connections. Use thread sealant or PTFE tape on all NPT fittings and verify connections are leak-free before pressurizing. Confirm that the mounting surface and fasteners are rated to support the assembled weight of the reel and hose.
