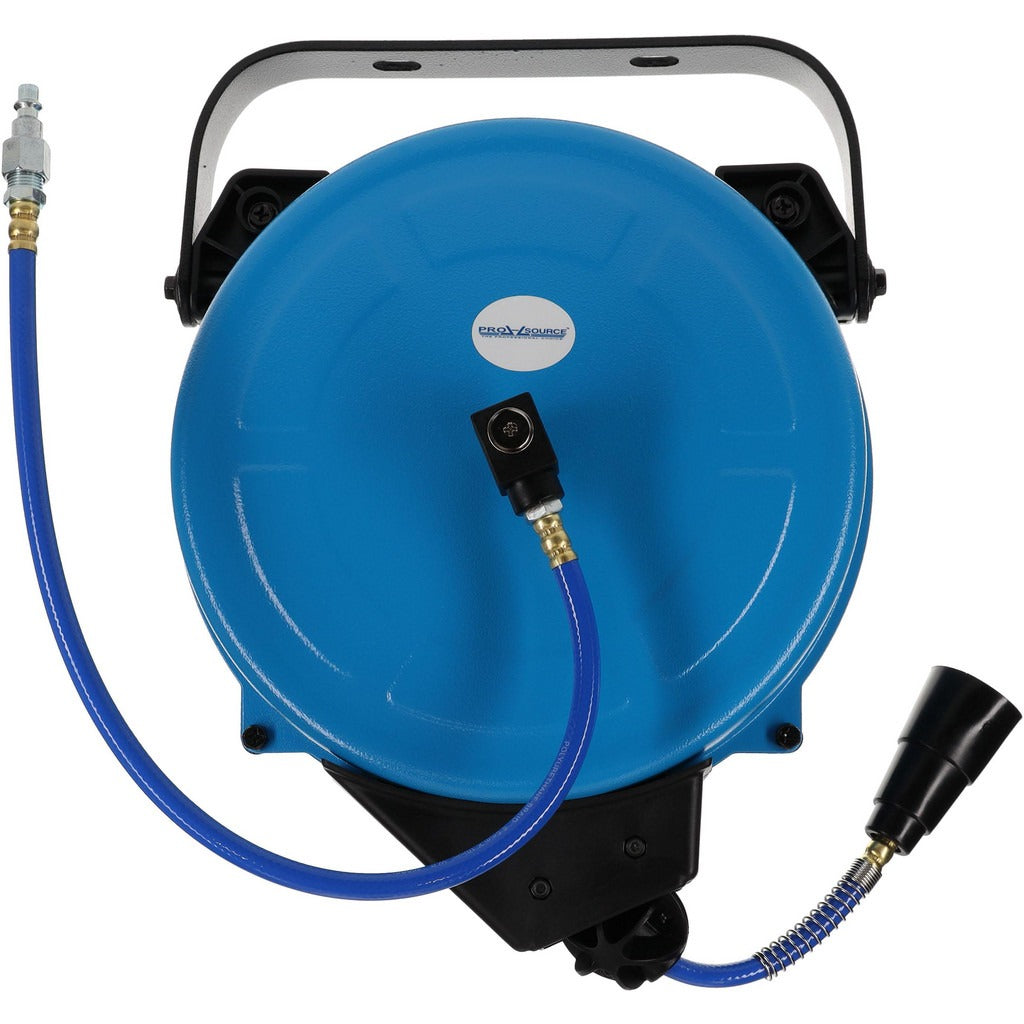

Pro-source 2810023410PRO Air Hose Reel 1/4 in 33 Ft 300 Psi

Product Description

The PRO-SOURCE 2810023410PRO is a spring-retractable air hose reel that comes pre-fitted with a 33-foot polyurethane hose. Built with a steel reel body and rated to 300 psi maximum working pressure, it is designed for compressed air service in shops, garages, and light industrial settings. The 1/4-inch ID hose connects via 1/4 NPT fittings and retracts automatically when released, keeping work areas clear and reducing trip hazards. At 11.01 pounds, the unit is wall- or ceiling-mountable and suited for installation by HVAC technicians, plumbers, electricians, or general shop maintenance staff who rely on air tools throughout the workday.

This hose reel is intended for air supply applications in residential shops, commercial service bays, and light industrial environments. The 1/4-inch ID hose is compatible with standard pneumatic hand tools, blow guns, and inflation equipment running off a shop compressor. The spring-retraction mechanism allows single-handed operation and consistent hose management between uses. Its compact footprint — 13.78 inches in length, 5.51 inches wide, and 14.57 inches tall — makes it practical in tight overhead or wall-mount locations where space is limited.

Key Features

• Spring-retractable drive returns hose automatically after each use
• 33-foot polyurethane hose included — no separate hose purchase required
• 300 psi maximum working pressure rated for standard compressed air service
• 1/4 NPT fittings for compatibility with common air tool quick-connect setups
• Steel reel construction in blue finish for durability in shop environments
• Compact dimensions support wall or ceiling mounting in space-limited areas

Compatibility

Designed for compressed air service applications using 1/4-inch ID hose and 1/4 NPT threaded connections, consistent with standard shop air supply systems operating within the 300 psi working pressure rating.

Installation Notes

Mount to a solid wall stud or ceiling joist rated to support the unit weight plus hose tension load. Shut off and bleed the compressed air supply before making any hose or fitting connections. Use thread sealant on all NPT connections and verify there are no leaks before returning the system to service. Installation should follow applicable OSHA and local compressed air safety guidelines.
