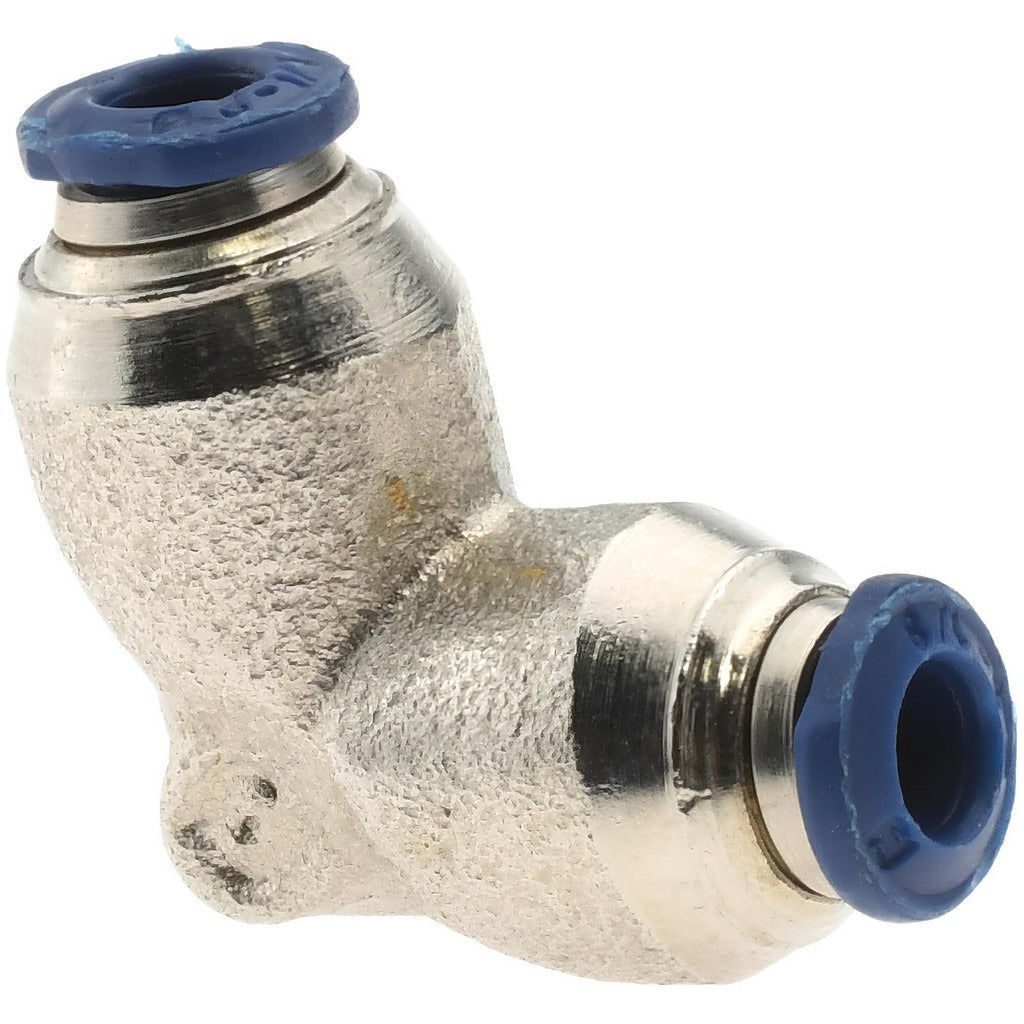

Pro-source 2555901865PRO Push-to-connect Tube Fitting

Product Description

The PRO-SOURCE 2555901865PRO is a push-to-connect tube-to-tube fitting designed for fast, tool-free connections in pneumatic and fluid-handling systems. Constructed from nickel-plated brass, it accepts tubing with a 1/8 inch outside diameter and is rated to 250 psi. The Buna-N O-ring provides a reliable seal across a wide range of service conditions. This fitting is installed by plumbers, HVAC technicians, and fluid-system mechanics in applications where quick assembly and disassembly are required without sacrificing leak-free performance. Sold in a package of 5 units.

The 2555901865PRO is suited for use with compressed air and water lines in both residential and light commercial service environments. Its push-to-connect design eliminates the need for soldering, flaring, or threading, making it a practical choice for tight spaces and high-volume installations where speed and reliability are priorities. The nickel-plated finish offers added corrosion resistance in moisture-prone environments.

Key Features

• Push-to-connect design — no tools required for tube insertion
• Nickel-plated brass construction for corrosion resistance and durability
• Buna-N O-ring seal rated for compressed air and water service
• Rated to 250 psi working pressure
• Accepts 1/8 inch OD tubing — tube-to-tube configuration
• Sold in a pack of 5 for convenient stocking

Compatibility

Designed for use with compressed air and water systems utilizing 1/8 inch OD tubing. Suitable as a tube-to-tube connector in pneumatic control lines, instrumentation, and plumbing applications where push-to-connect fittings are specified.

Installation Notes

Shut off and depressurize the system completely before removing or installing any fittings. Ensure tubing ends are cut cleanly and squarely with no burrs to achieve a proper seal with the O-ring. To release the tube, depress the collet ring while pulling the tubing straight out. Follow applicable plumbing and mechanical codes, including IPC and ASME B31.1, for the specific system being serviced.
