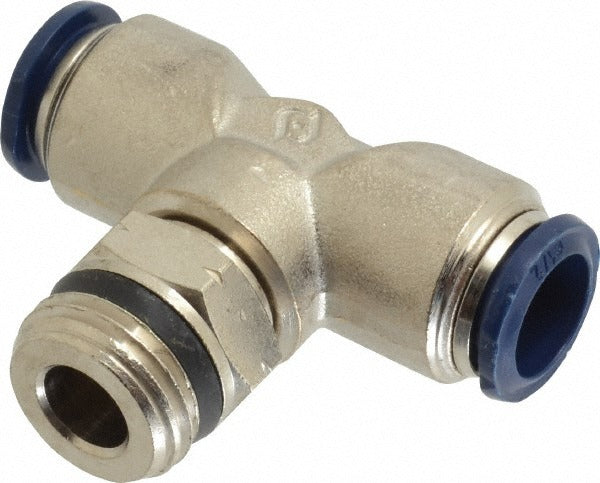

Pro-source 2555712163PRO Push-to-connect Tube Fitting

Product Description

The PRO-SOURCE 2555712163PRO is a push-to-connect tube-to-universal-thread fitting designed for fast, tool-free tube connections in fluid and pneumatic plumbing systems. Constructed from nickel-plated brass, it accepts 1/2 inch OD tubing and offers a 1/2 inch universal thread port. The fitting is rated to 250 psi maximum working pressure and handles temperatures from 0 degrees F to 160 degrees F. The Buna O-ring ensures a reliable seal across this operating range. Licensed plumbers and HVAC technicians install this fitting in applications where quick disconnects or branch connections are needed without soldering or compression tools.

This fitting suits residential and light commercial plumbing, HVAC refrigerant tubing circuits, pneumatic control lines, and general fluid-handling installations where push-to-connect convenience is required. The universal thread port allows connection to a wide range of male or female threaded components. It is well-suited for retrofit work and new installations where fast assembly and secure sealing are priorities. Each package contains 3 fittings, making it practical for multi-connection jobs or keeping spares on hand.

Key Features

• Push-to-connect design for tool-free, fast tube insertion with 1/2 inch OD tubing
• Nickel-plated brass body for corrosion resistance in wet and humid environments
• 250 psi maximum working pressure rating
• Operating temperature range of 0 degrees F to 160 degrees F
• Buna O-ring provides a durable, leak-resistant seal
• Universal thread port for broad compatibility with threaded fittings and components
• Package quantity of 3 fittings per order

Compatibility

Designed as an OEM-style replacement or new-installation fitting for systems using 1/2 inch OD tubing with universal threaded ports in plumbing, HVAC, and pneumatic applications.

Installation Notes

Installation is performed by licensed plumbers or qualified HVAC technicians. Shut off system pressure and depressurize the line fully before removing or installing any push-to-connect fitting. Ensure tubing ends are cut square and deburred before insertion to achieve a proper seal. Verify that working pressure and temperature of the application do not exceed the rated values of this fitting.
